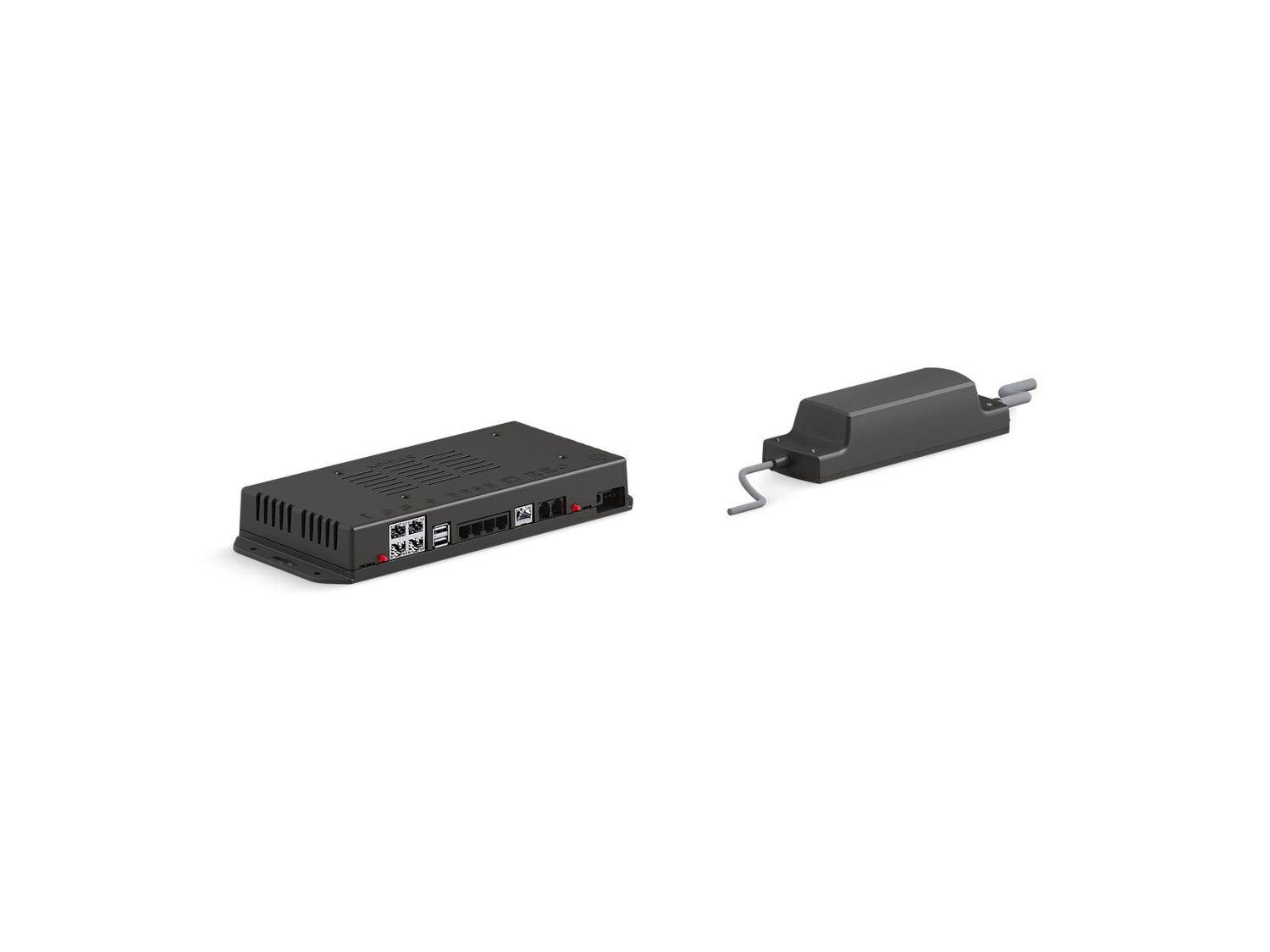

Anthem+™ System controller module

This innovative KOHLER® Anthem+ system controller acts as the wiring center and brain for the Anthem showering system, providing connections for every component and powering the digital control. To create an immersive Anthem showering experience, this system controller requires the Anthem+ digital control and an Anthem digital thermostatic valve. Beyond that, everything is customizable — with the option to add up to 12 water outlets, plus steam enhancements.

Features

• Provides power to the digital control and manages other connected system devices
• Integrated web pages for system set up and configuration using a computer or mobile device connected via router or home network
• Automatically checks for software updates (with internet access)
• Two ports for connecting digital valve(s)
• Four ports for system component connections; four ports for Anthem+ digital control connections
• One Ethernet port for hardwire connection to home network, or connect via built-in Wi-Fi
• Features BLUETOOTH® wireless technology for pairing with optional remote on/off button (sold separately)
• Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Provides connection to the KOHLER® Cloud via Wi-Fi
• One jack for power cord connection
• Provides connections for all system components, including steam

Specifications

• Dimensions: 20.125 x 11.688 x 2.688 in
• Weight: 2.658 lb
• UPC: 195711153326

Installation

• Equipped with mounting wings for wall mounting (fittings included)
• Requires Anthem+ digital control and Anthem digital thermostatic valves (each sold separately)
