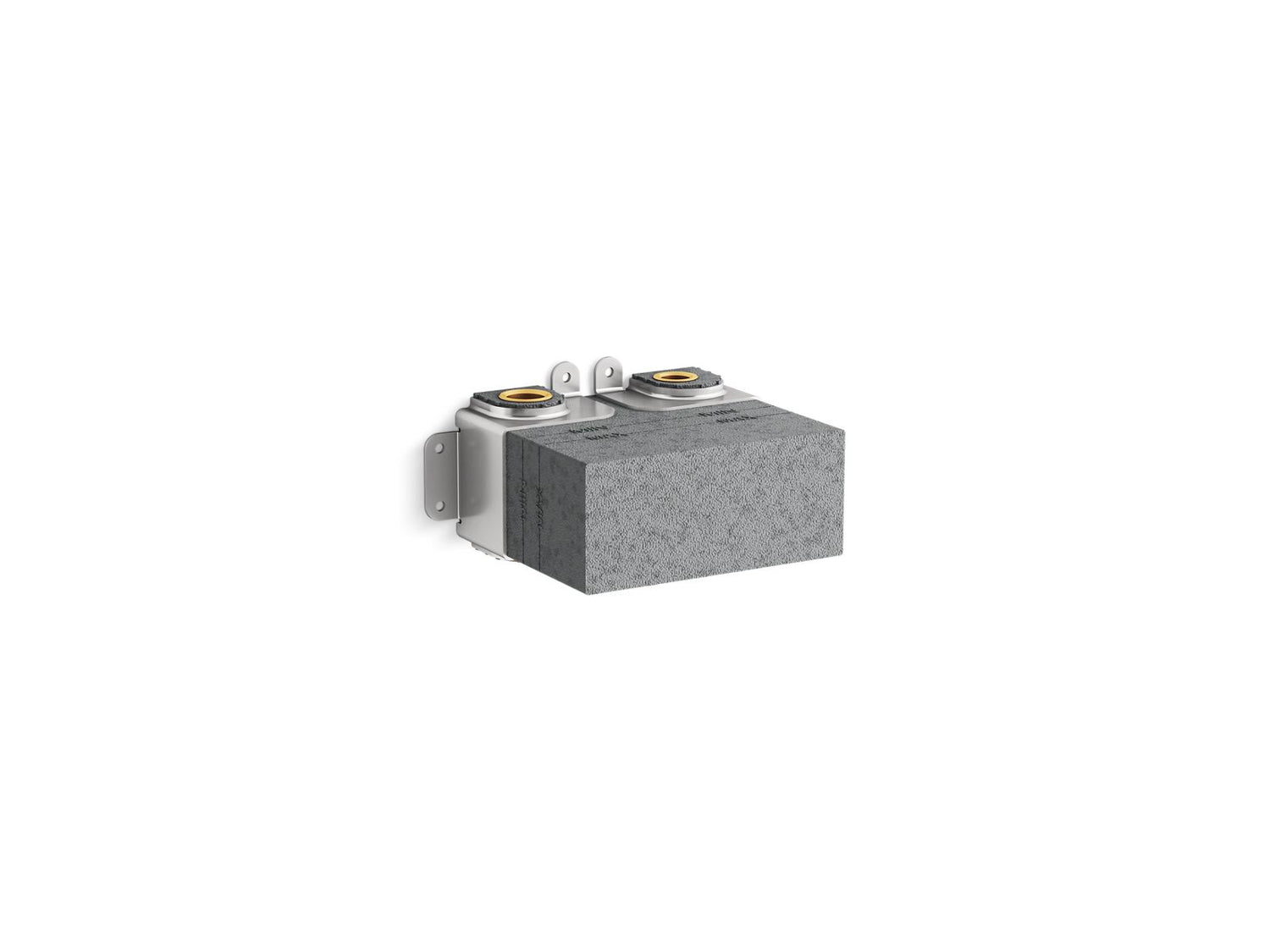

Anthem® One-port recessed mechanical thermostatic valve

Thermostatic KOHLER® Anthem technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class Anthem thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-button. With a single port, this valve is suited for applications where only one shower outlet is used.

Features

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 7 gpm (26.5 lpm) maximum flow rate at 45 psi (3.1 bar)
• 3/4" female NPT inlet
• 1/2" female NPT outlet
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)

Specifications

• Dimensions: 11.25 x 8.5 x 7.563 in
• Weight: 5.84 lb
• UPC: 195711260734

Installation

• Requires one-outlet thermostatic valve control panel trim with recessed push button (sold separately)
• Mounts within standard 2" x 4" (38 x 102 mm) walls
• Fully-serviceable from the front of the valve
