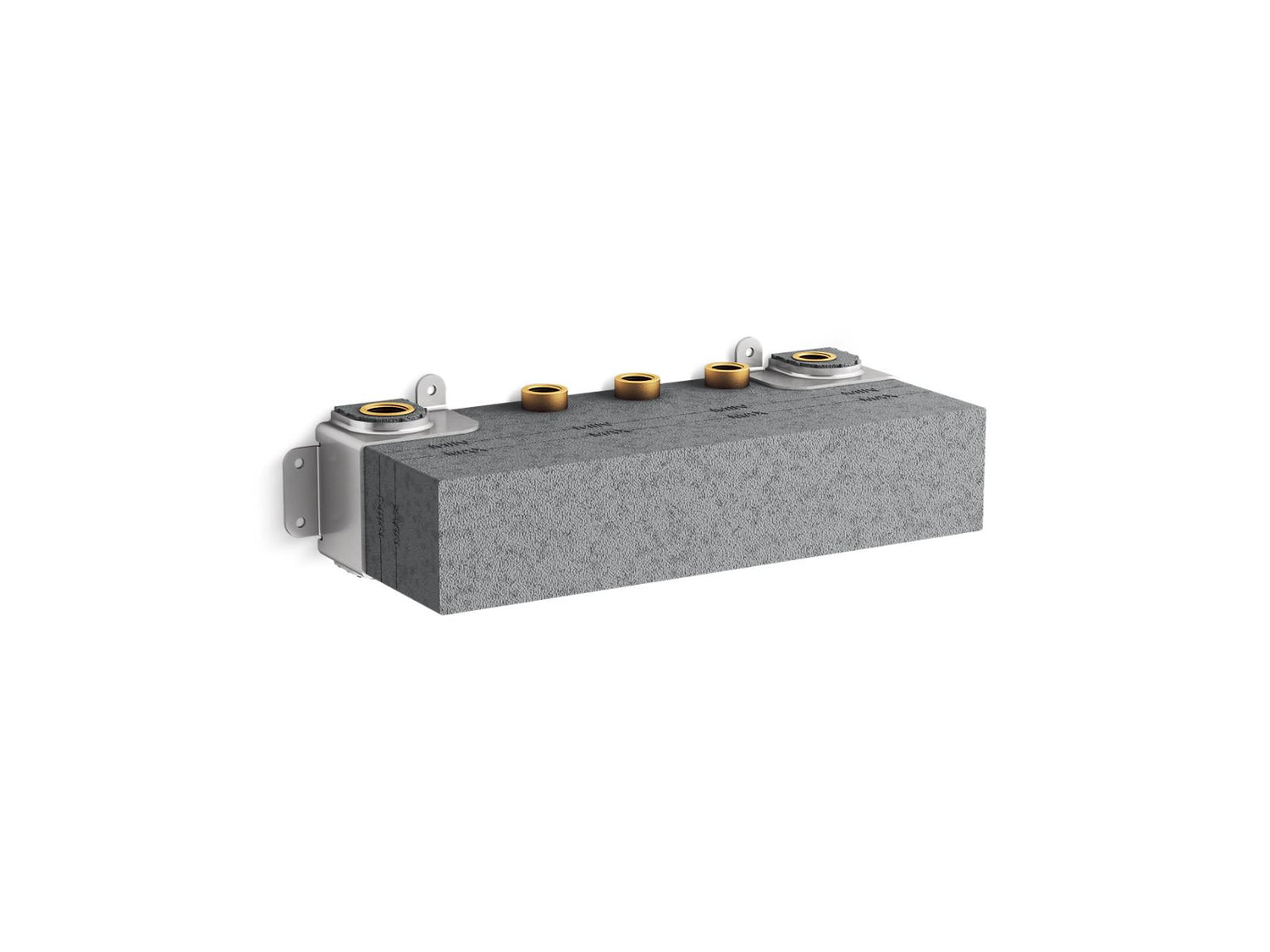

Anthem® Four-port recessed mechanical thermostatic valve

Thermostatic KOHLER® Anthem technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class Anthem thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.

Features

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• 3/4" female NPT inlet connections
• 1/2" female NPT outlet connections
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

Specifications

• Dimensions: 15.313 x 8.5 x 7.625 in
• Weight: 9.94 lb
• UPC: 195711260765

Installation

• Requires four-outlet thermostatic valve control panel trim with recessed push buttons (sold separately)
• Mounts within standard 2" x 4" (38 x 102 mm) walls
• Fully-serviceable from the front of the valve
