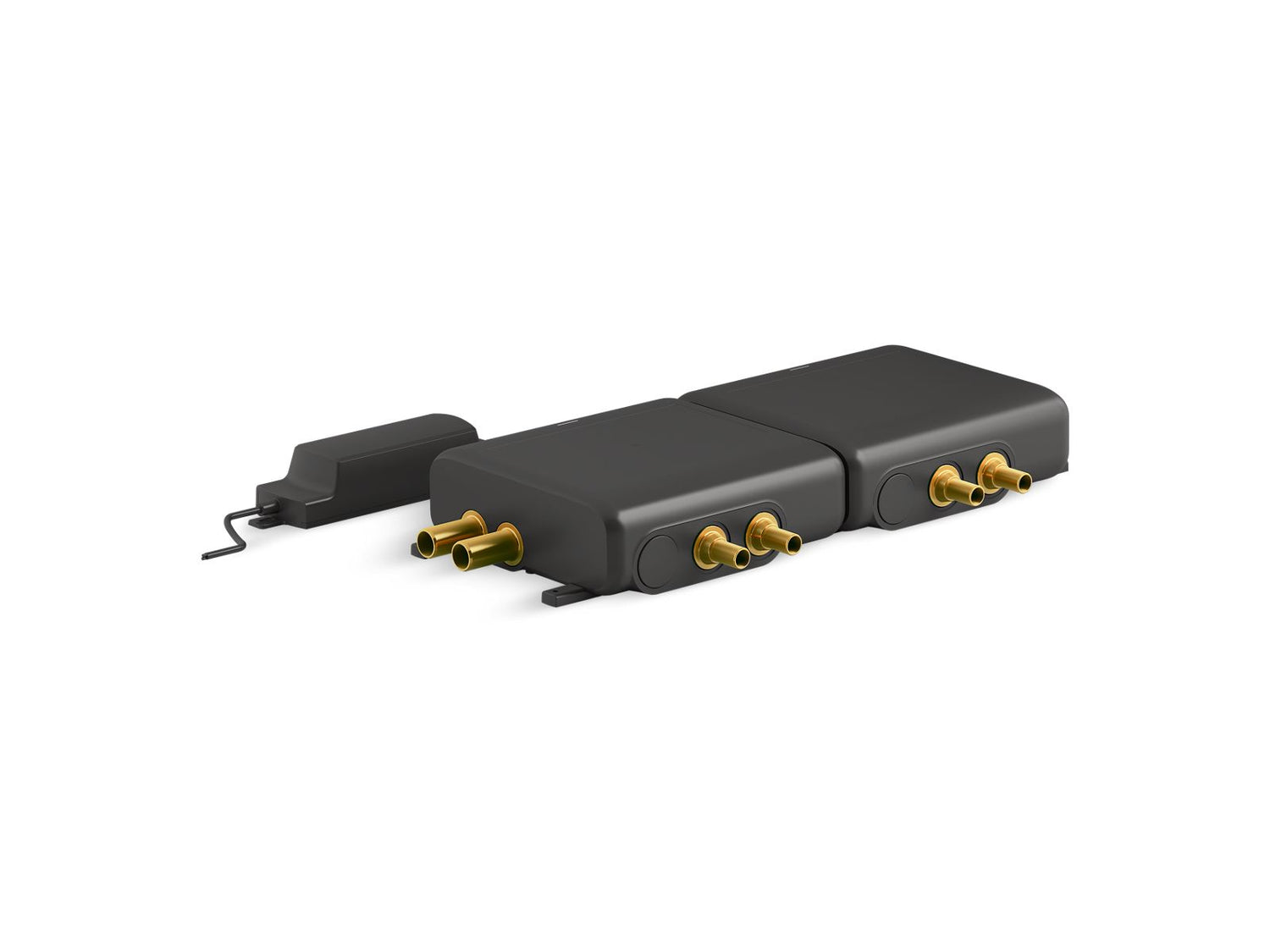

Anthem® Four-port digital thermostatic valve

Experience precise control over your shower with KOHLER® Anthem four-port digital thermostatic valve. Engineered for use with the Anthem digital control, this advanced valve enables you to independently manage four shower outlets, creating two separate temperature and flow zones for a truly personalized shower. The digital thermostatic technology ensures consistent water temperature and flow, while the plug-and-play installation streamlines setup. Optional eco mode allows you to conserve water by activating just one outlet at a time.

Features

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Built-in temperature and flow control
• Allows for two different temperature and flow zones in your shower
• Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
• Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Four independently controllable 1/2" (13 mm) outlets with brass tube connections
• 3/4" (19 mm) inlets with brass tube connections

Specifications

• Dimensions: 28.5 x 11.813 x 3.438 in
• Weight: 9.41 lb
• UPC: 885612907288

Installation

• Mounts within standard 2" x 4" (38 x 102 mm) walls
• Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control)
• Prewired with two-prong plug for connection to 120 V GFCI receptacle
• After digital control is connected to valve and power source, follow on-screen prompts for easy setup; no Internet needed. (Digital control sold separately)
