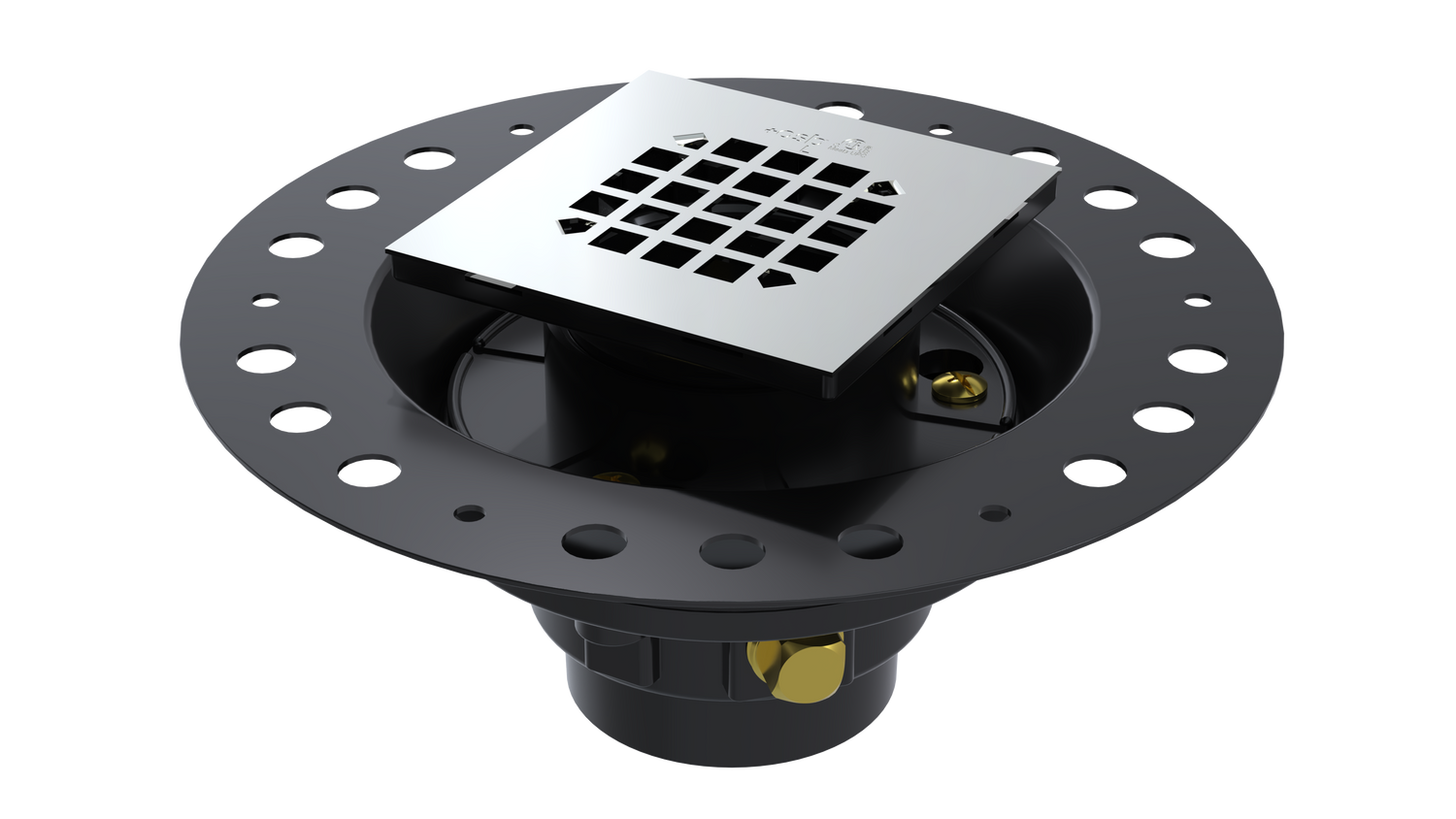

ABS Wood Deck Drain with Square Grate (WDDS44)

The OS&B WDDS44 is a 2" ABS wood deck drain with a square grate and an integral deck flange. It is intended for light duty applications such as second floor laundry rooms, utility rooms, loft remodels, kitchens and washrooms. The drain is CSA B79 certified, has an “L” load rating and comes with a 4-1/8" square snap-in stainless steel grate.

Features

• 18 gauge epoxy coated metal deck flange
• Extra-long ABS round flange offers adjustability to accommodate vinyl to 1-1/2" thick tile or wood flooring
• Reversible ABS collar allows for increased adjustability (up to 2-1/4" max)
• Reversible extra-long ABS strainer body for deeper installations
• 2" ABS DWV hub connection or 3" spigot
• Designed to be installed in an 8" joist space
• Can be installed with waterproofing membrane
• Trap seal primer tapped and plugged
• 4-1/8" square snap-in stainless steel grate

Specifications

• Size: 2"
• Material: ABS
• Connection: 2" ABS DWV hub or 3" spigot
• Grate: 4-1/8" square snap-in stainless steel
• Deck flange: 18 gauge epoxy coated metal
• Joist space: 8"
• Load rating: “L”
• Certification: CSA B79
