OS&B  |  SKU: WDD45
20% off

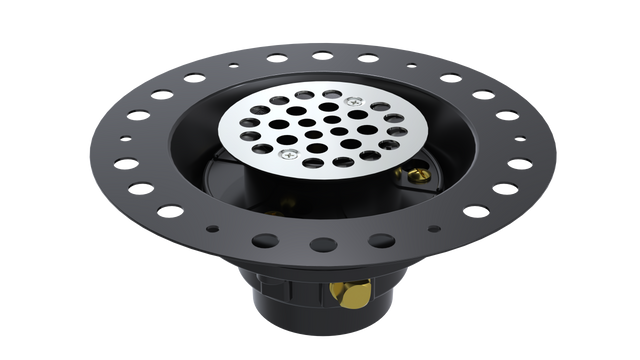

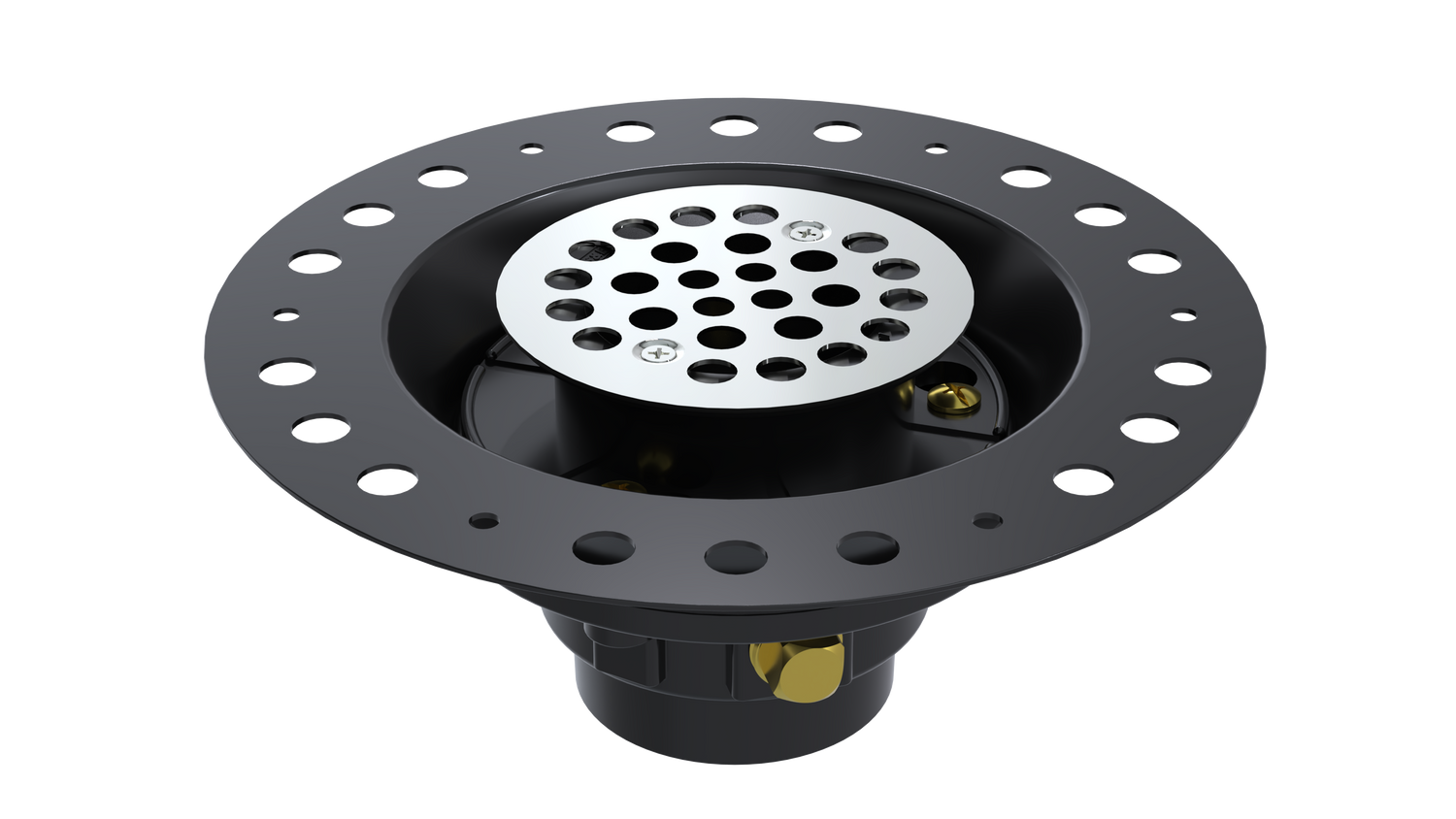

ABS Wood Deck Drain with Round Grate (WDD45)

Sale price $9397 Regular price $11746
Shipping calculated at checkout.

Free Canada-wide shipping on orders over $500!

Exceptions apply.

Pickup available at Vatero Bath + Kitchen

Usually ready in 5+ days

Description

The OS&B WDD45 is a 2" ABS wood deck drain with a round grate and an integral deck flange. It is intended for light duty applications such as second floor laundry rooms, utility rooms, loft remodels, kitchens and washrooms. The drain is CSA B79 certified, has an “L” load rating and comes with a 4-1/4" screw-in stainless steel grate.

Features

  • 18 gauge epoxy coated metal deck flange
  • Extra-long ABS round flange offers adjustability to accommodate vinyl to 1-1/2" thick tile or wood flooring
  • Reversible ABS collar allows for increased adjustability (up to 2-1/4" max)
  • Reversible extra-long ABS strainer body for deeper installations
  • 2" ABS DWV hub connection or 3" spigot
  • Designed to be installed in an 8" joist space
  • Can be installed with waterproofing membrane
  • Trap seal primer tapped and plugged
  • 4-1/4" screw-in stainless steel grate

Specifications

  • Size: 2"
  • Material: ABS
  • Connection: 2" ABS DWV hub or 3" spigot
  • Grate: 4-1/4" screw-in stainless steel (round)
  • Deck flange: 18 gauge epoxy coated metal
  • Joist space: 8"
  • Load rating: “L”
  • Certification: CSA B79
Documents
Spec Sheet
