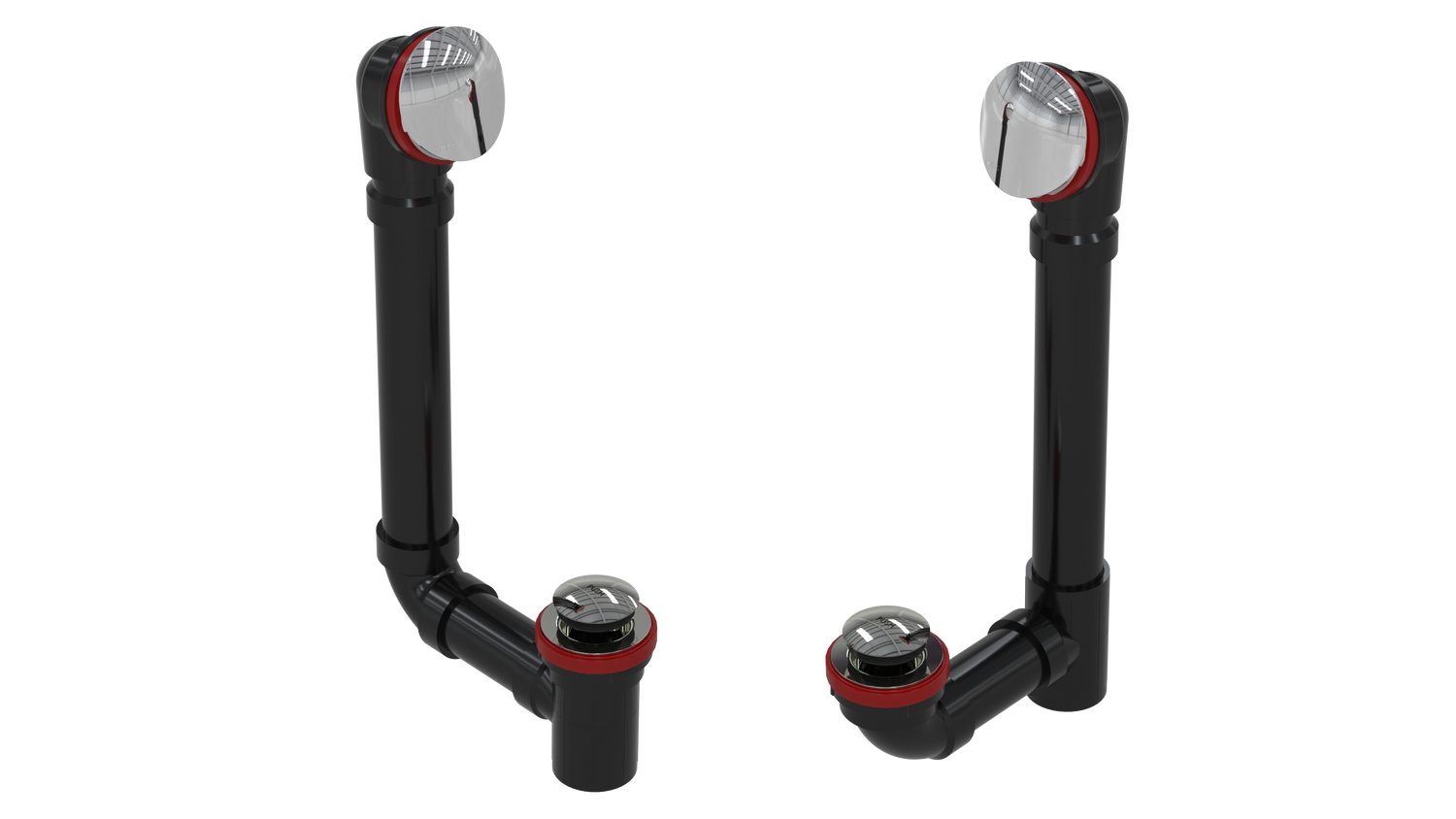

ABS TOTAL 1™ W/O W/ROUND & TIP-TOE - 16" (6062TIP-CP)

The OS&B Total 1™ 1-1/2" ABS Tip-Toe bath waste and overflow with a round faceplate is a configurable bath drain that offers 2 drain configurations, Offset or Direct, in one package, with no leftover parts. This is the W/Pipe 16 model and must be used with certified 1-1/2 ABS DWV pipe (installation requirement). It is made of ABS in a Chrome Plated finish and carries CCSA US UPC certification.

Features

• One kit gives 2 drain configurations: Offset and Direct.
• SlideOn faceplate.
• Thick foam overflow gasket with an adhesive back.
• Spin-on tie plate for a tool-less installation.
• Overflow head with an integrated angle; an angle adapter is included, and its use is optional.
• Self-clinging rubber waste gasket.
• Large/coarse thread strainer and Total 1™ connector.
• Contractors no longer need to keep both Offset and Direct Drain bath waste kits on the truck.

Specifications

• Brand: OS&B
• Collection: Total 1™
• Drain mechanism: Tip-Toe
• Faceplate: Round
• Size: 1-1/2"
• Material: ABS
• Finish: Chrome Plated
• Version: W/Pipe 16
• Certification: CCSA US UPC Certification
