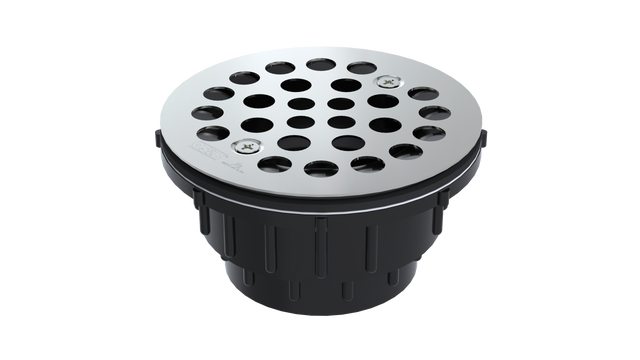

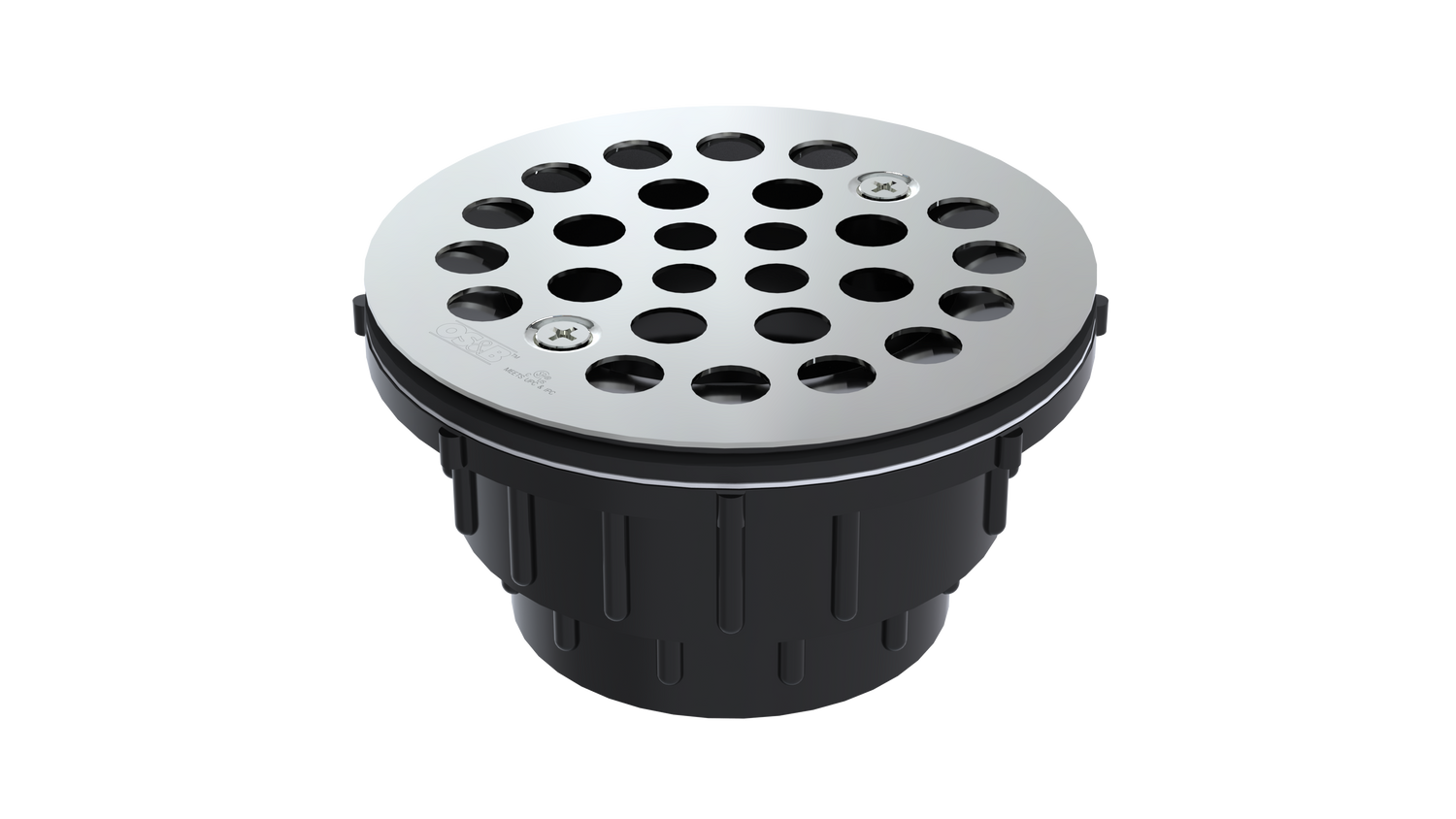

ABS Testable Shower Drain with 2" Outlet for use with Molded Bases (SD35T-SS)

The OS&B SD35T-SS is a testable ABS straight discharge shower drain with a 2" nominal outlet for use with molded bases, supplied with a round screw-in grate. Its snap-off test cap allows for air testing from below or water testing from above.

Features

• Snap-off test cap with a convenient plier breakoff, designed not to fall down the drain during removal.
• Test cap rated to 30psi.
• Allows for air testing from below or water testing from above.
• ABS body with a 2" ABS/DWV hub connection.
• Includes a 4-1/4" round screw-in stainless steel grate.
• Thread-in round flange.
• 2-piece shower drain construction.
• Meets ASME A112.18.2/CSA-B125.2.

Specifications

• Outlet size: 2" nominal
• Material: ABS
• Connection: 2" ABS/DWV hub
• Construction: 2 piece
• Discharge: Straight
• Grate: 4-1/4" round screw-in stainless steel
• Flange: Thread-in round
• Test cap rating: 30psi
• Finish: Stainless Steel
• Certification: ASME A112.18.2/CSA-B125.2
• Certifications: CCSA US UPC Certification
