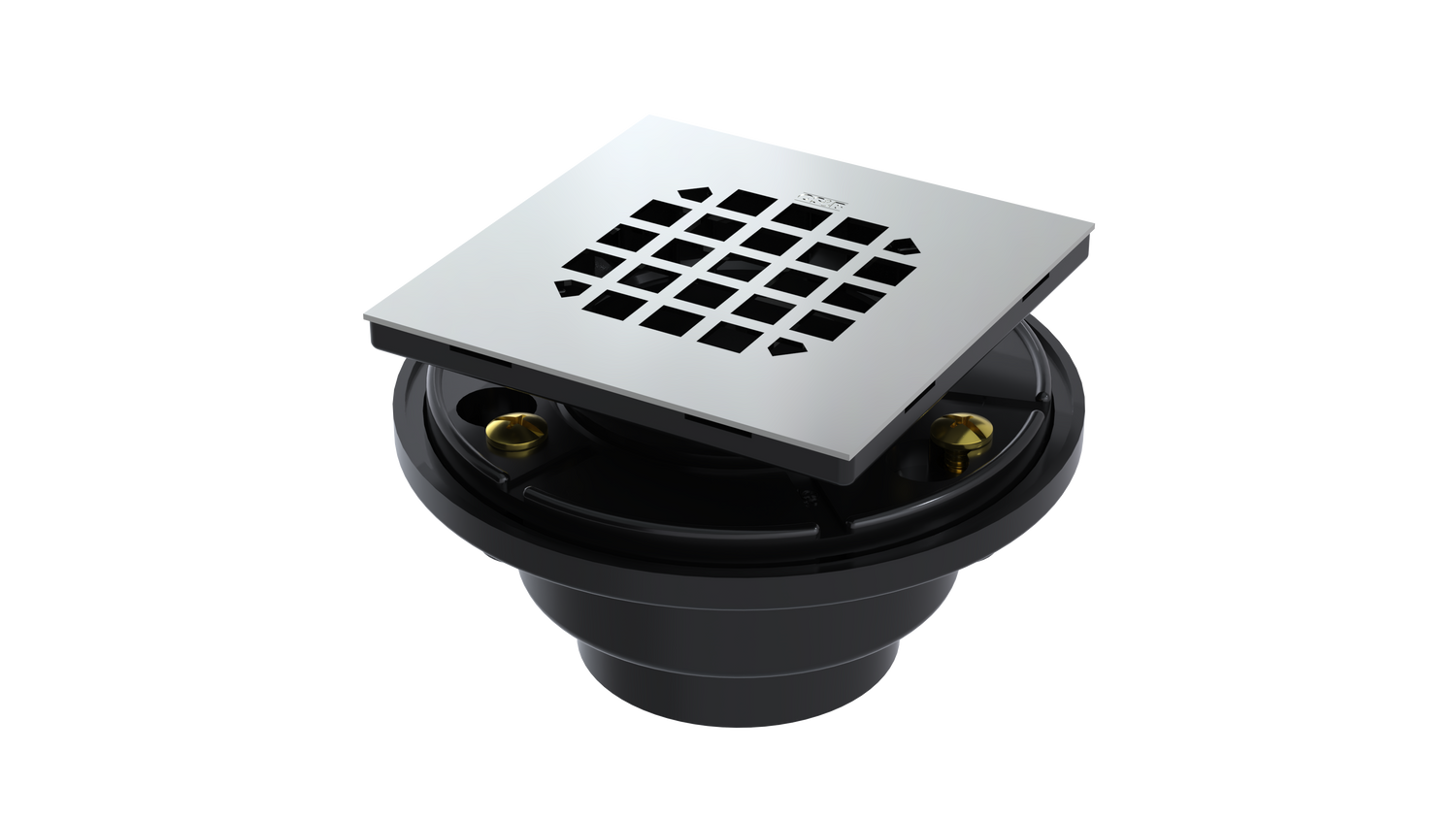

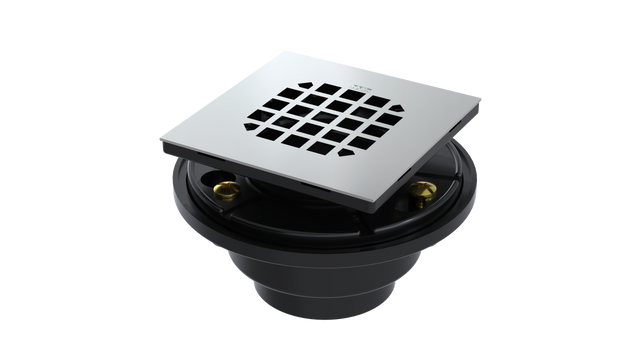

ABS Shower Drain with 2" Outlet for use with Tile Bases (SDS44)

The OS&B SDS44 is an ABS shower drain for tile bases with a 2" nominal outlet and a square snap-fit grate. This 3-piece drain has a 2" ABS outlet and a straight discharge design. A reversible collar is included with the square snap-fit grate.

Features

• Body with 2" ABS/DWV hub connection.
• Reversible clamping collar allows for increased adjustability (2-1/4" max).
• Square snap-in grate.
• Thread-in square flange.
• 3-piece construction.
• Designed for use with tile bases.
• Carries the cCSAus "Meets UPC & IPC Code" mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Material: ABS
• Outlet size: 2" nominal
• Grate: Square snap-fit
• Discharge: Straight
• Hub connection: 2" ABS/DWV
• Certification: ASME A112.18.2/CSA-B125.2

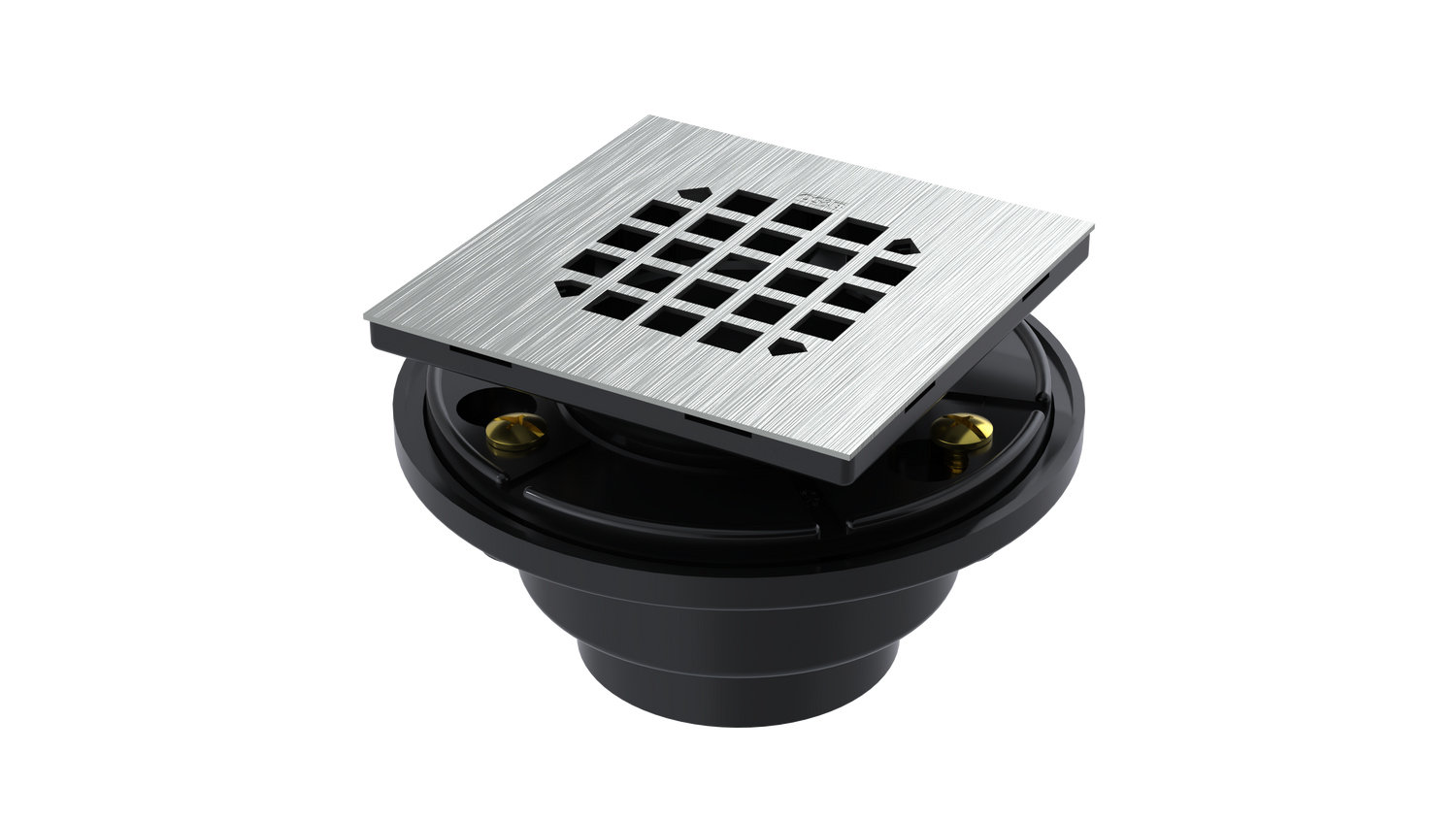

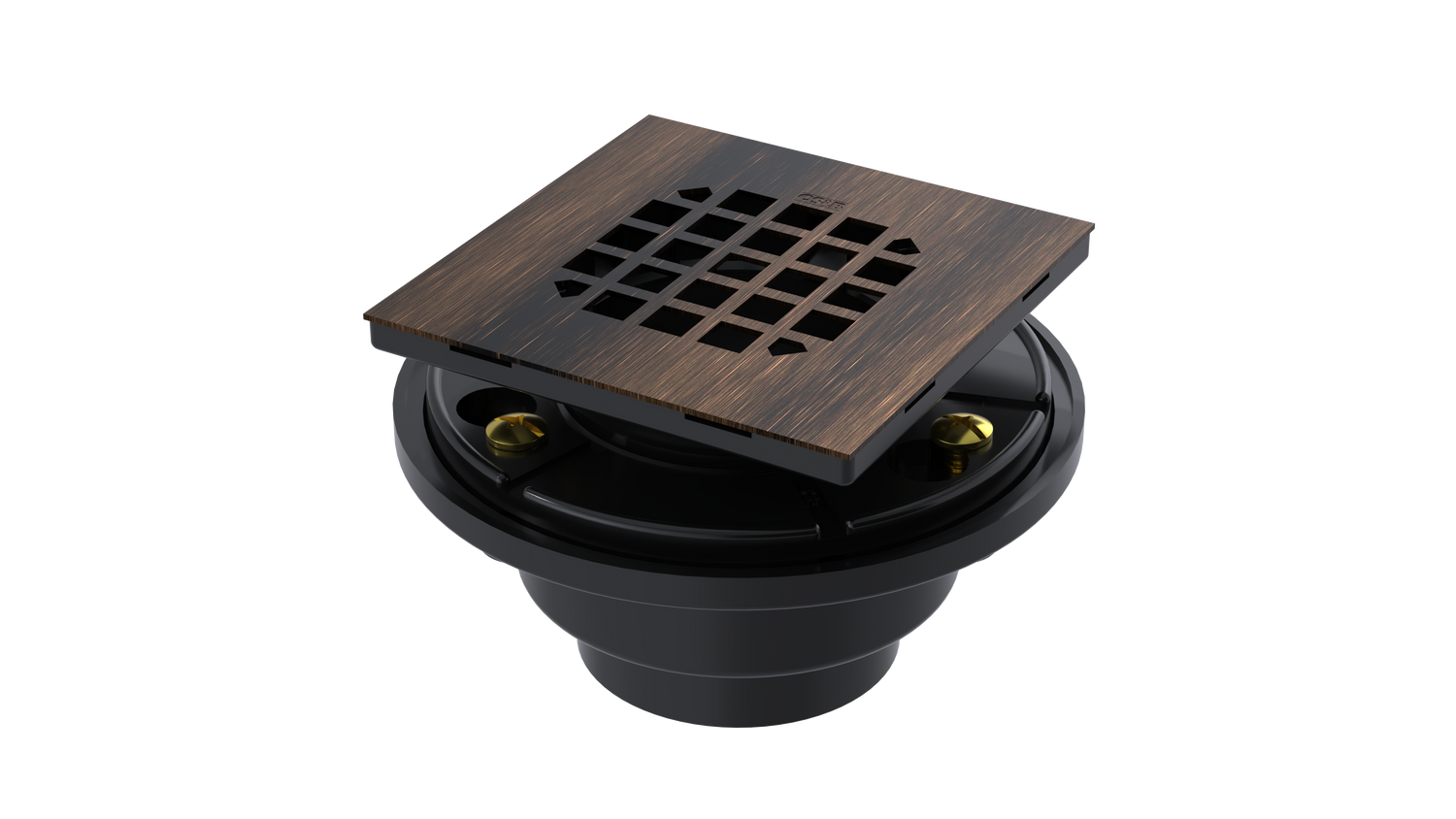

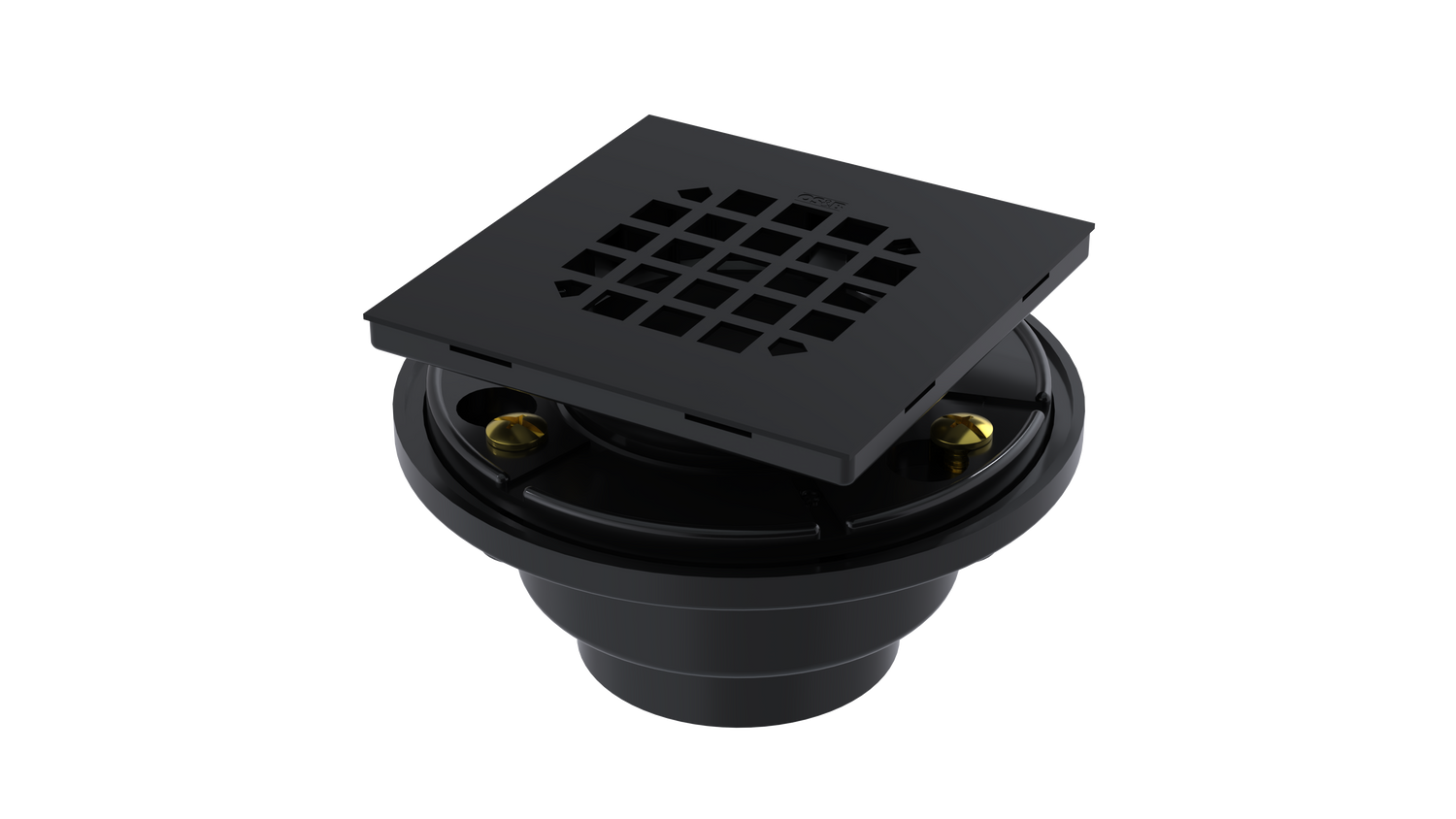

• Available finishes: Base (Stainless Steel), Brushed Nickel, Matte Black, Venetian Bronze
