ABS Shower Drain with 2" Outlet for use with Tile Bases (SD45)

The OS&B SD45 is an ABS shower drain with a 2" nominal outlet for tile bases. It is a 3-piece drain with a 2" ABS outlet and a 4-1/4" round screw-in grate. The drain includes a round screw-in grate and a reversible collar.

Features

• Body with 2" ABS/DWV hub connection
• Reversible clamping collar allows for increased adjustability (2-1/4" max)
• Thread-in round flange
• Certified to ASME A112.18.2/CSA-B125.2
• Carries the cCSAus mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

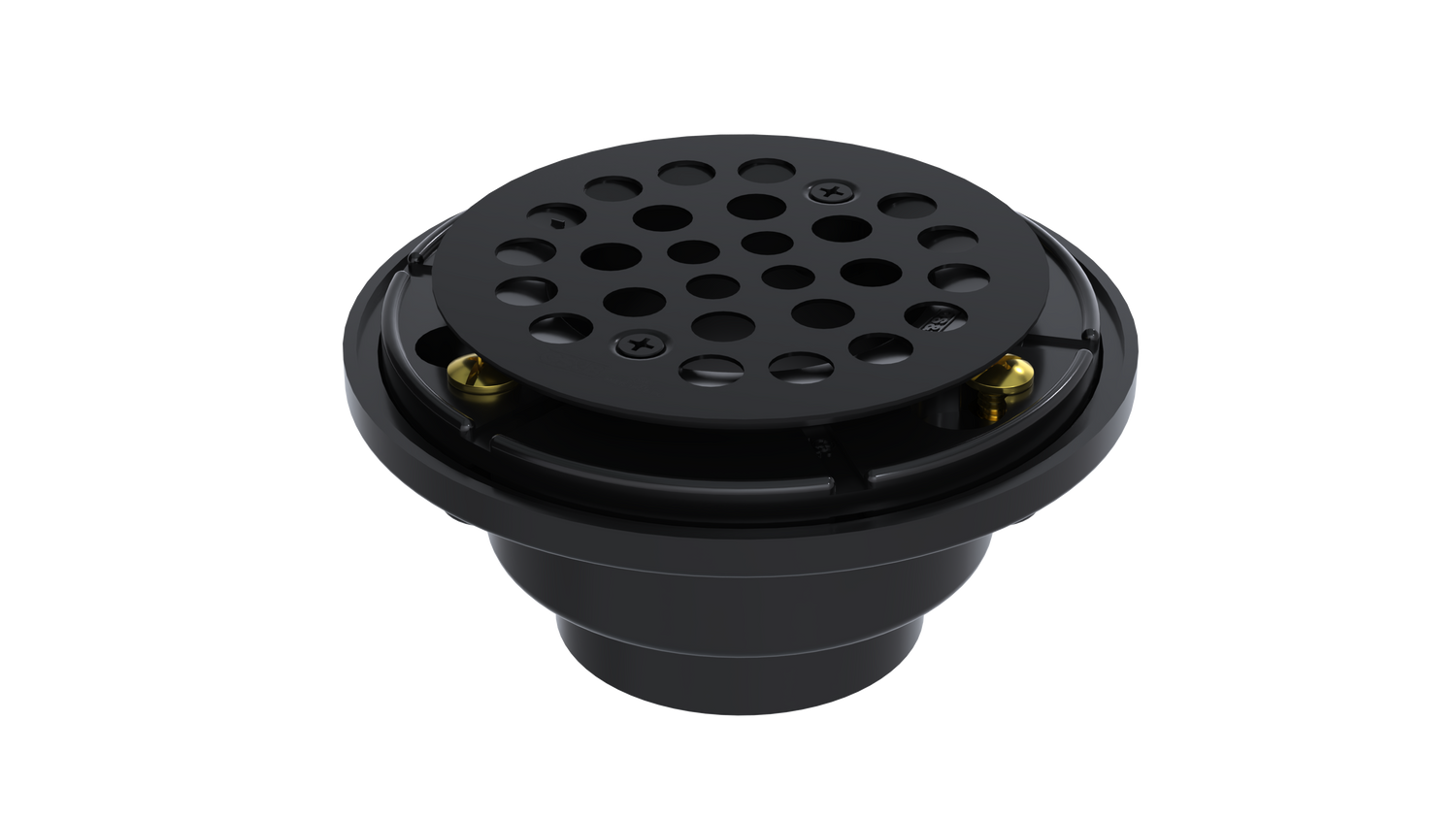

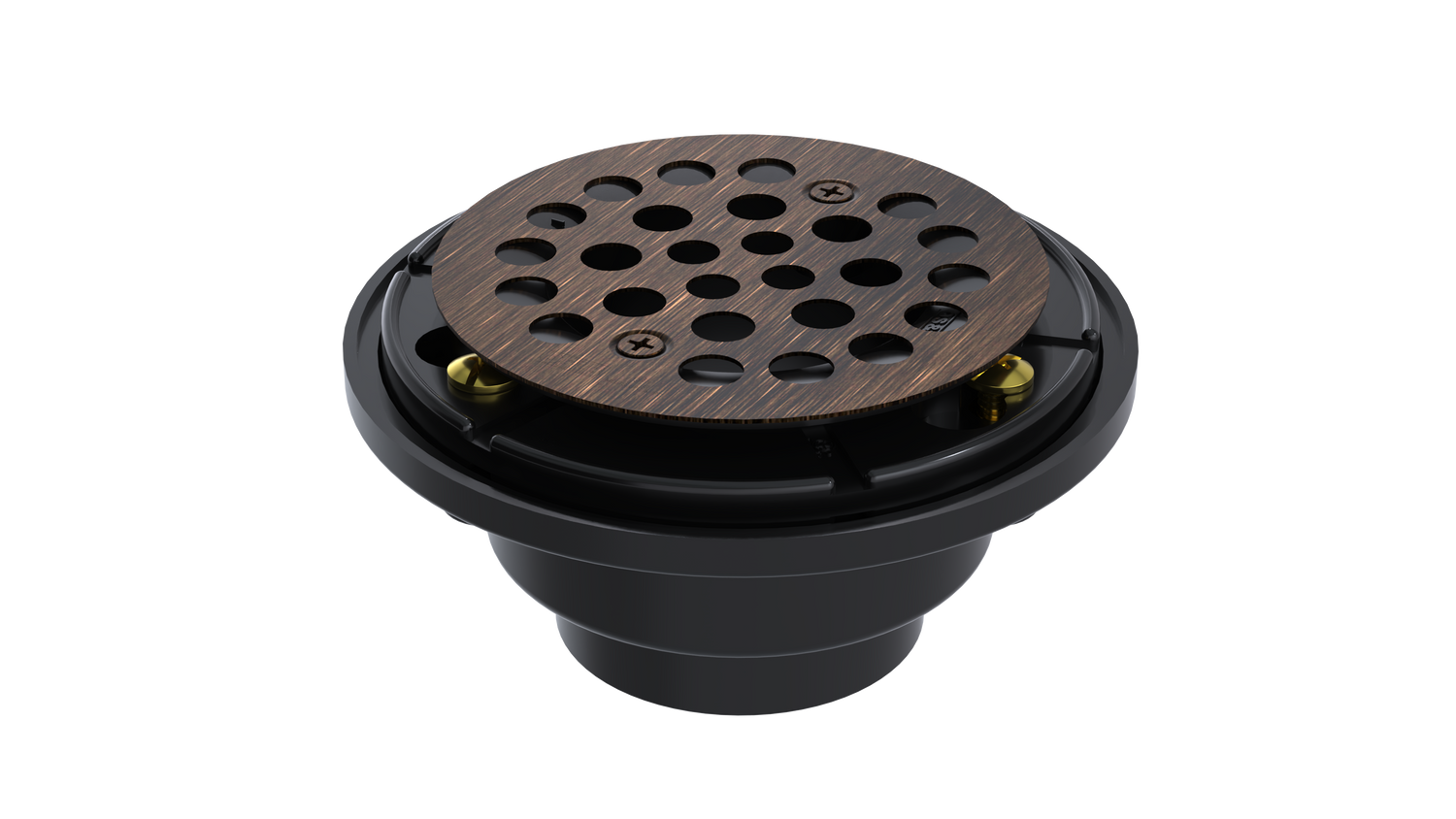

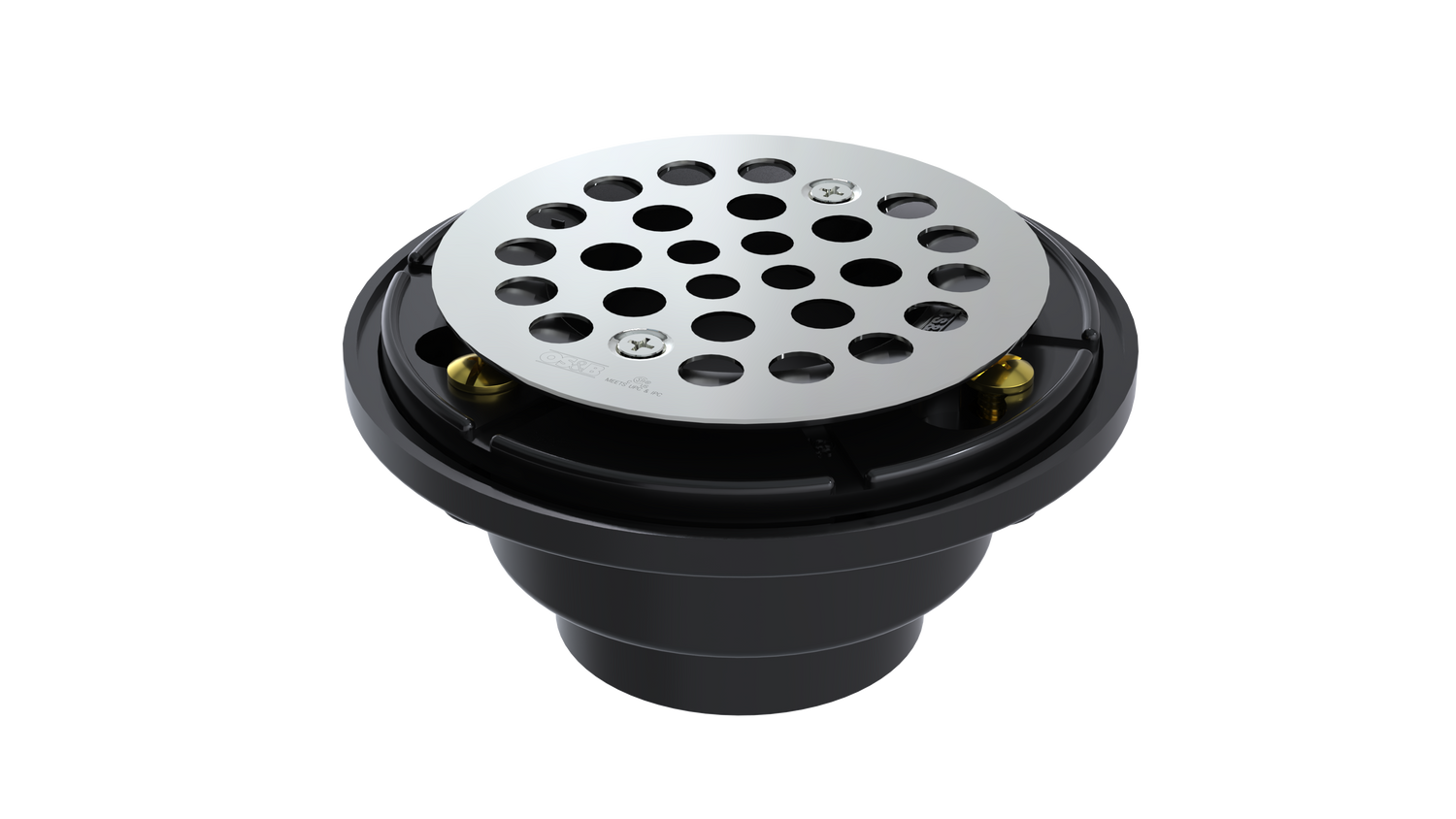

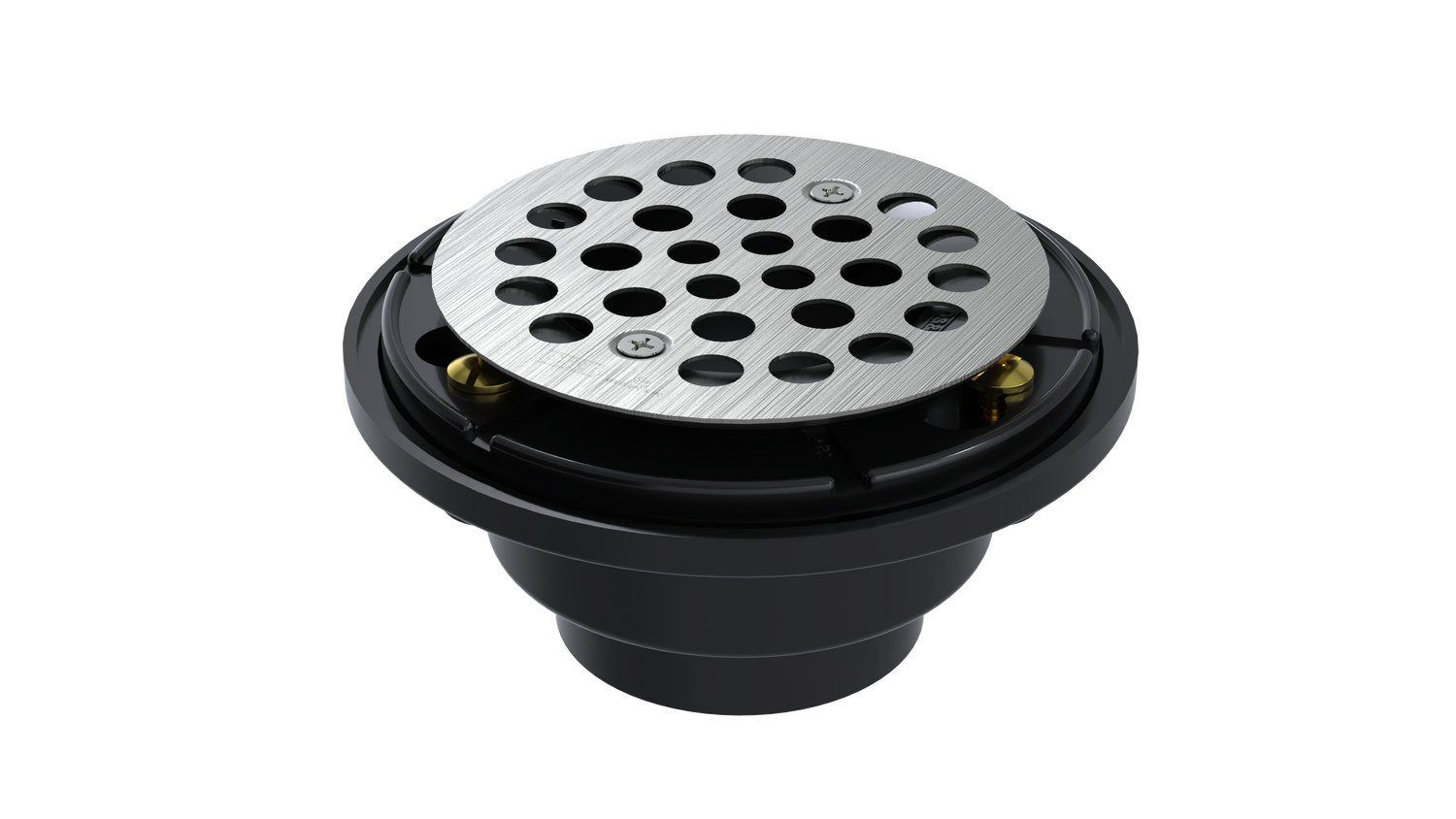

• Offered in Base (Stainless Steel), Brushed Nickel, Matte Black and Venetian Bronze finishes.

Specifications

• Outlet: 2" nominal
• Material: ABS
• Construction: 3 piece
• Grate: 4-1/4" round screw-in
• Hub connection: 2" ABS/DWV
• Collar adjustability: 2-1/4" max
• Certification: ASME A112.18.2/CSA-B125.2
• Available finishes: Base (Stainless Steel), Brushed Nickel, Matte Black, Venetian Bronze
