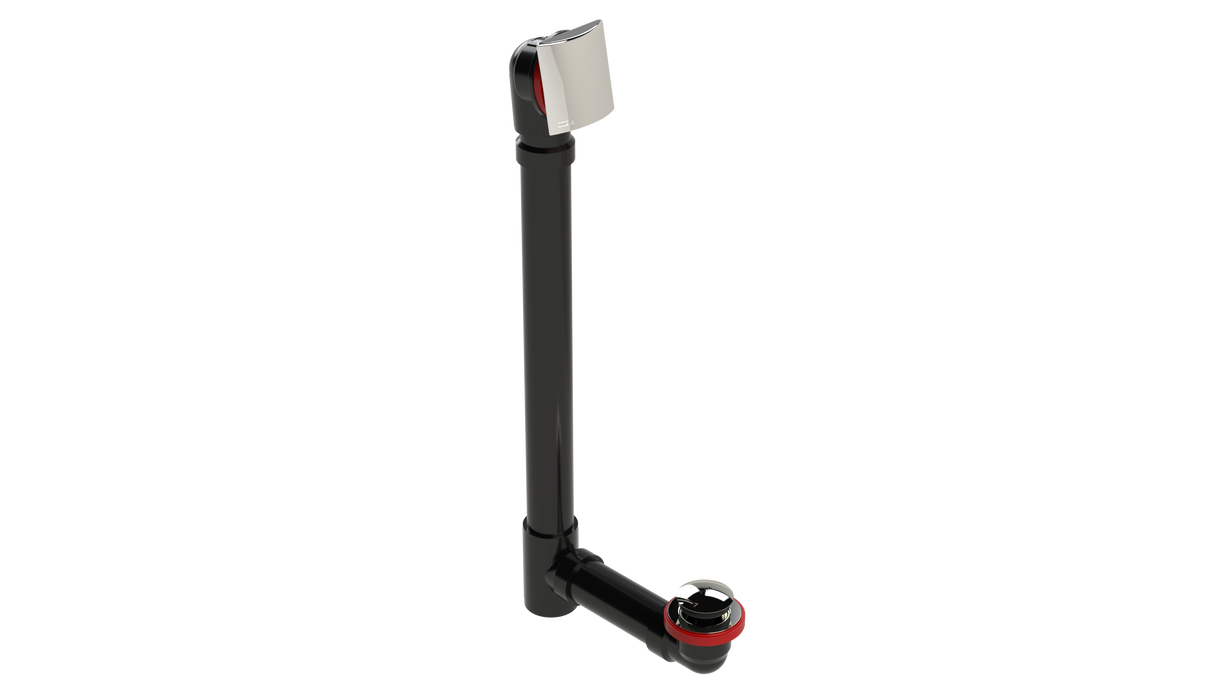

ABS OFFSET WASTE & OVERFLOW TIP-TOE EXTENDED (6041TIP-20CP)

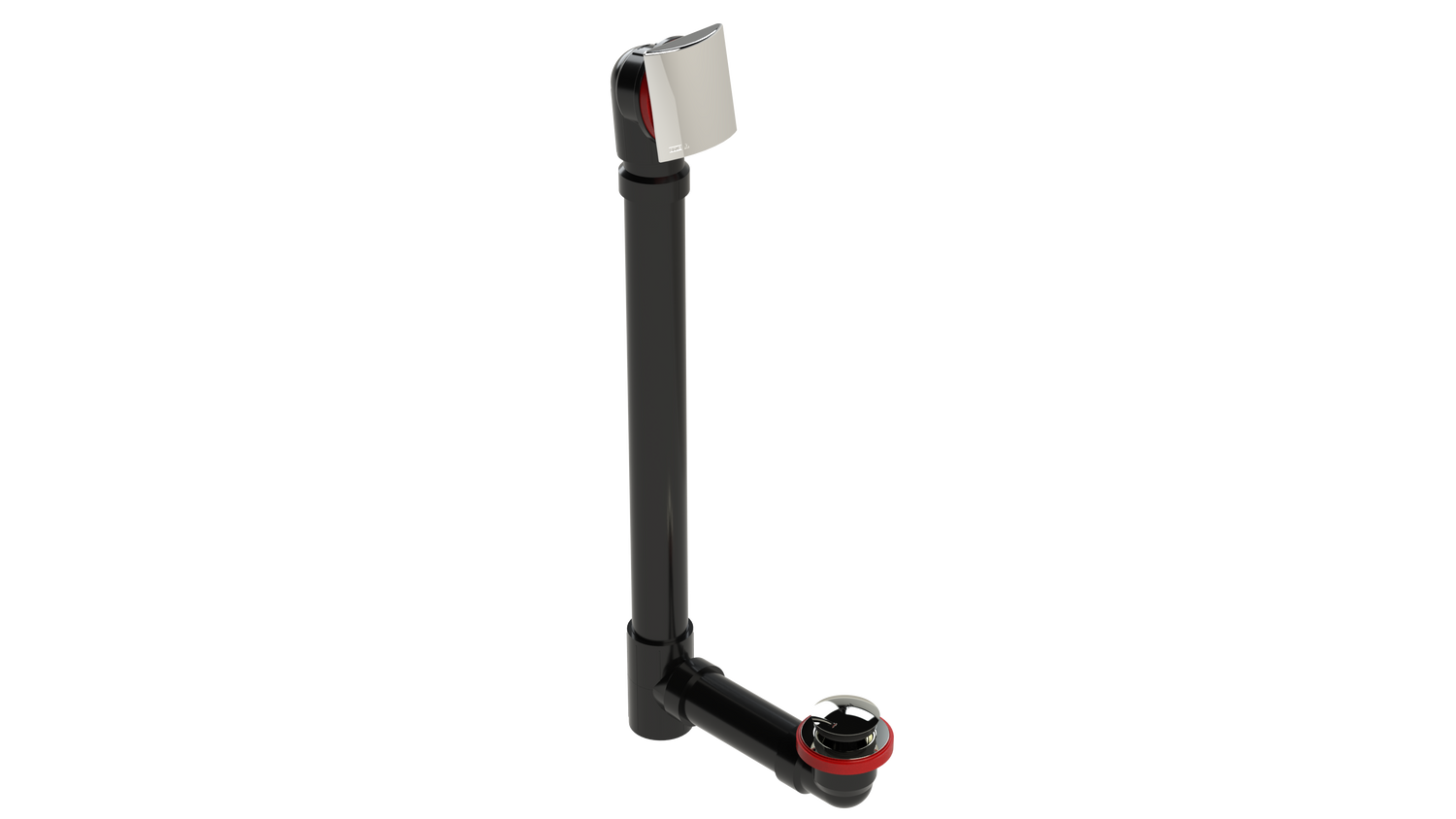

The OS&B 6041TIP-20CP is a 1-1/2" ABS offset Tip-Toe bath waste and overflow in an extended length, with a Square SlideOn™ faceplate. It is for 20" bathtubs and uses 1-1/2" ABS pipe. It features a spin-on tie plate, an angle adapter and a large strainer with a Tip-Toe stopper.

Features

• Square SlideOn™ faceplate
• Large strainer with Tip-Toe stopper
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool less installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head featuring aggressive threads for a quicker and easier installation
• Angle adapter included (use optional)
• Self clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Size: 1-1/2"
• Construction: Schedule 40 ABS
• Pipe: 1-1/2" ABS
• Tub fit: For 20" bathtubs
• Length: Extended
• Faceplate: Square
• Material: ABS
• Certifications: ASME A112.18.2/CSA-B125.2; CCSA US UPC Certification
