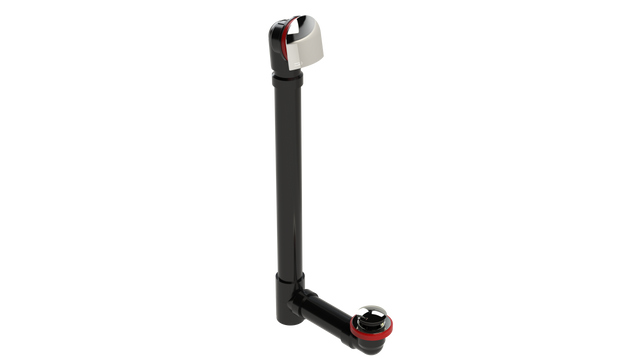

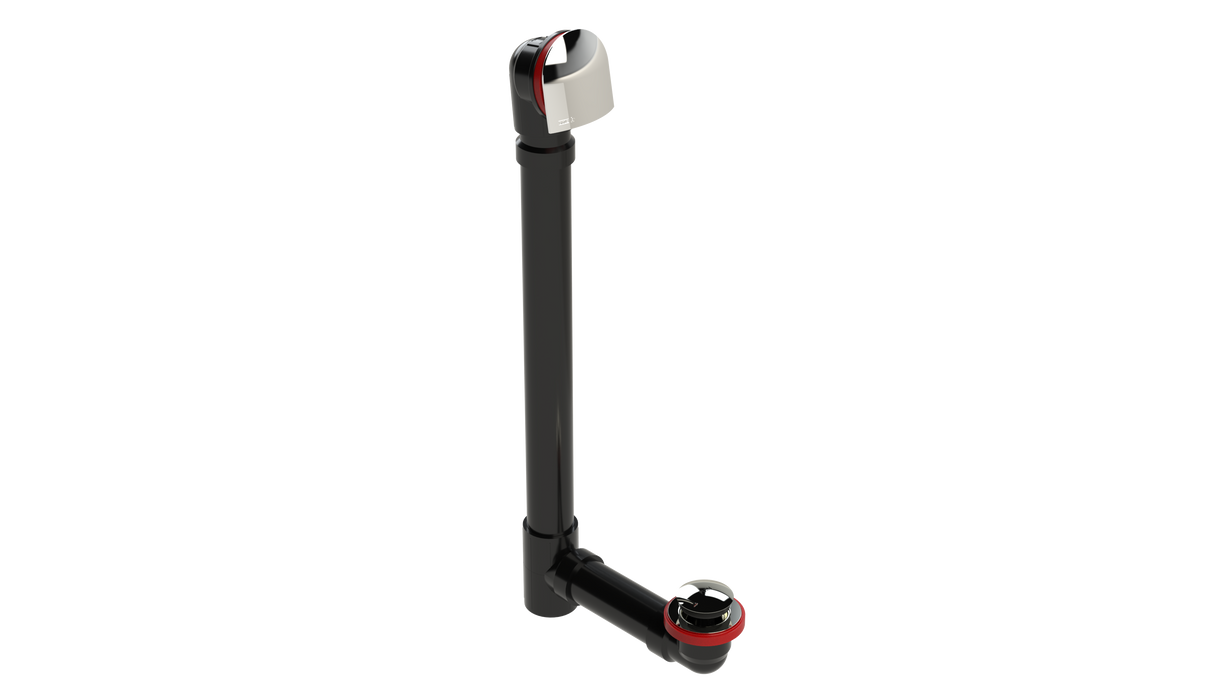

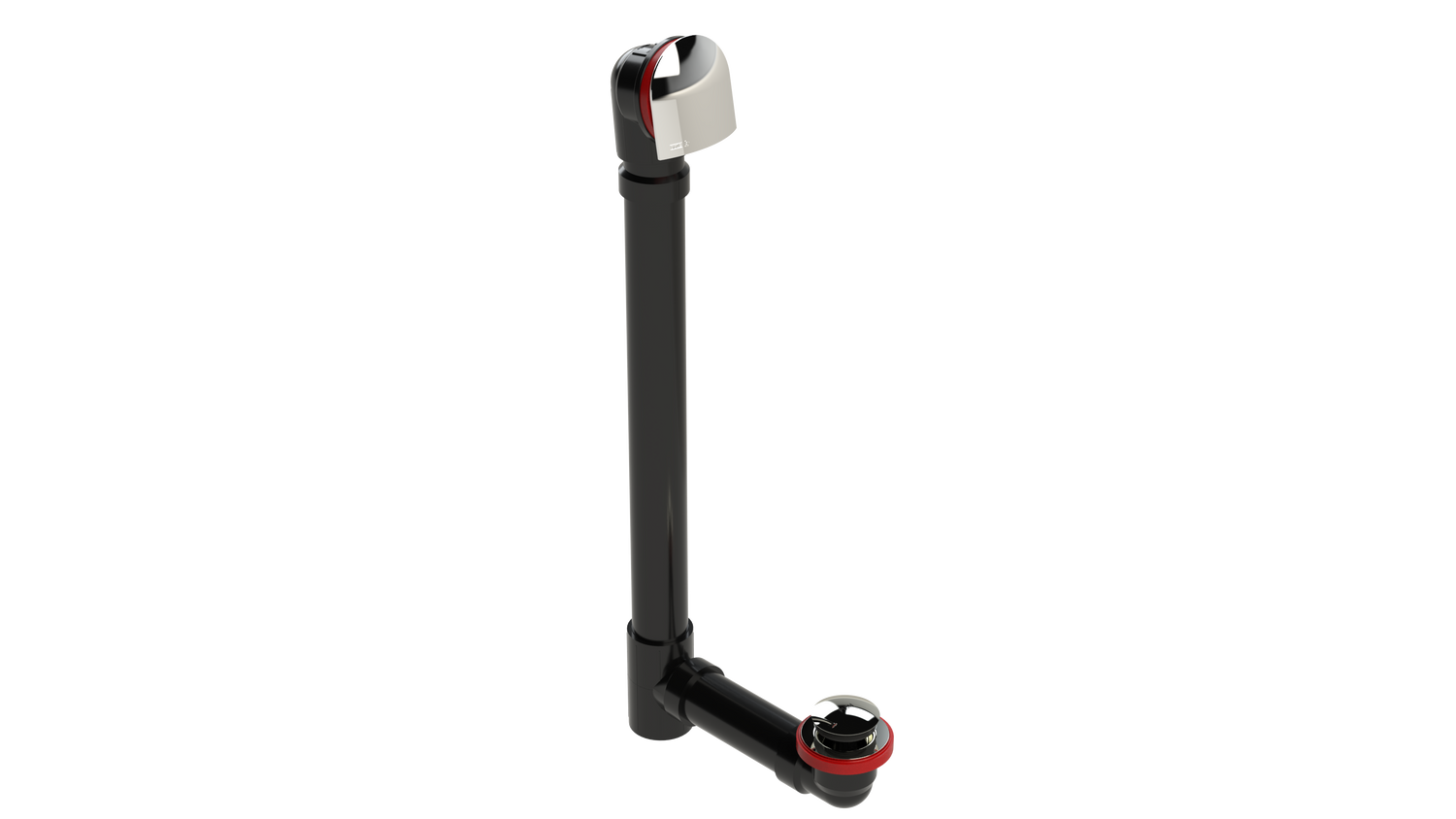

ABS OFFSET WASTE & OVERFLOW TIP-TOE EXTENDED (6040TIP-20CP)

The OS&B 6040TIP-20CP is a 1-1/2" ABS offset tip-toe waste and overflow (extended) with a Bell SlideOn™ faceplate. It features a spin-on tie plate and an angle adapter, with a large strainer and Tip-Toe stopper. It is made for 20" bathtubs and uses 1-1/2" ABS pipe.

Features

• Bell SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Material: ABS
• Construction: Schedule 40 ABS offset with Tip-Toe
• Length: Extended
• Faceplate: Bell SlideOn™
• Stopper: Tip-Toe
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: cCSAus (UPC); conforms to the requirements of the NPC, UPC, IPC and IRC
