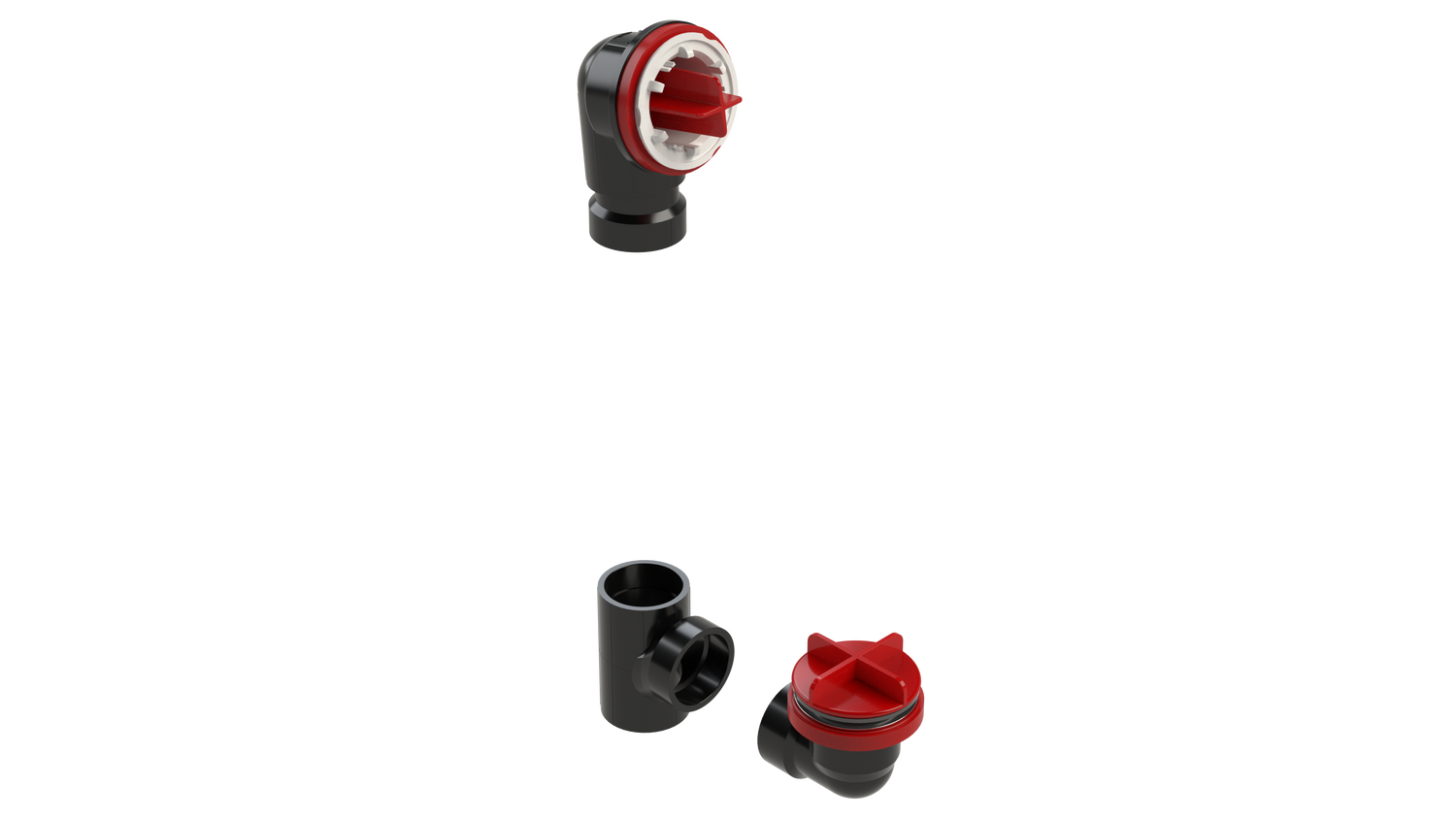

ABS Offset Waste & Overflow Testable Rough-In Kit (7030TDRI-K)

The OS&B 7030TDRI-K is a 1-1/2" ABS offset waste & overflow testable rough-in kit. It features a spin-on tie plate, an angle adapter, a large strainer and thread-in test plugs, and is for 1-1/2" ABS pipe. The kit comes less pipe and carries CCSA US UPC certification.

Features

• Spin-on tie plate for a toolless installation
• Angle adapter included; use optional
• Thick foam overflow gasket with adhesive back
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Self clinging rubber waste gasket
• Coarse thread strainer
• Thread-in waste test plug with stainless steel post
• Thread-in overflow test plug
• The "cCSAus" Meets UPC & IPC Code" mark means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Model: 7030TDRI-K
• Configuration: Kit, less pipe
• Material: ABS
• Construction: Schedule 40 ABS
• Pipe: For 1-1/2" ABS pipe
• Certification: ASME A112.18.2/CSA-B125.2
• Certifications: CCSA US UPC Certification
