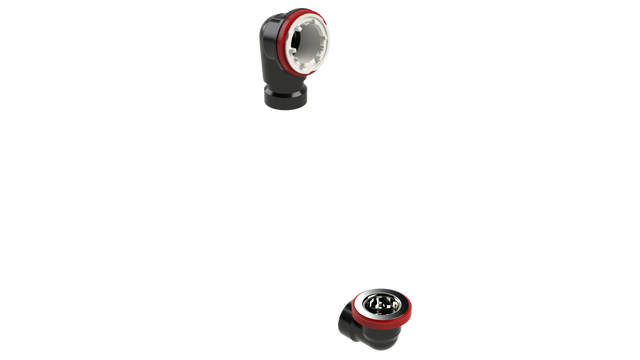

ABS Offset Waste & Overflow Rough-in (6040RI-HK)

The OS&B 6040RI-HK is a 1-1/2" ABS offset waste and overflow rough-in (half kit). It features a spin-on tie plate, an angle adapter and a large strainer, and is for 1-1/2" ABS pipe. The rough-in is of Schedule 40 ABS construction and is certified to ASME A112.18.2/CSA-B125.2. The half kit comes less pipe and tee.

Features

• Thick foam overflow gasket with an adhesive back
• Spin-on tie plate for a toolless installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Stainless steel coarse-thread strainer
• The "cCSAus" Meets UPC & IPC Code mark means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Size: 1-1/2"
• Material: ABS
• Construction: Schedule 40 ABS
• Pipe: For 1-1/2" ABS pipe
• Style: Offset
• Length: Half kit
• Configuration: Less pipe and tee
• Certifications: ASME A112.18.2/CSA-B125.2; CCSA US UPC Certification
