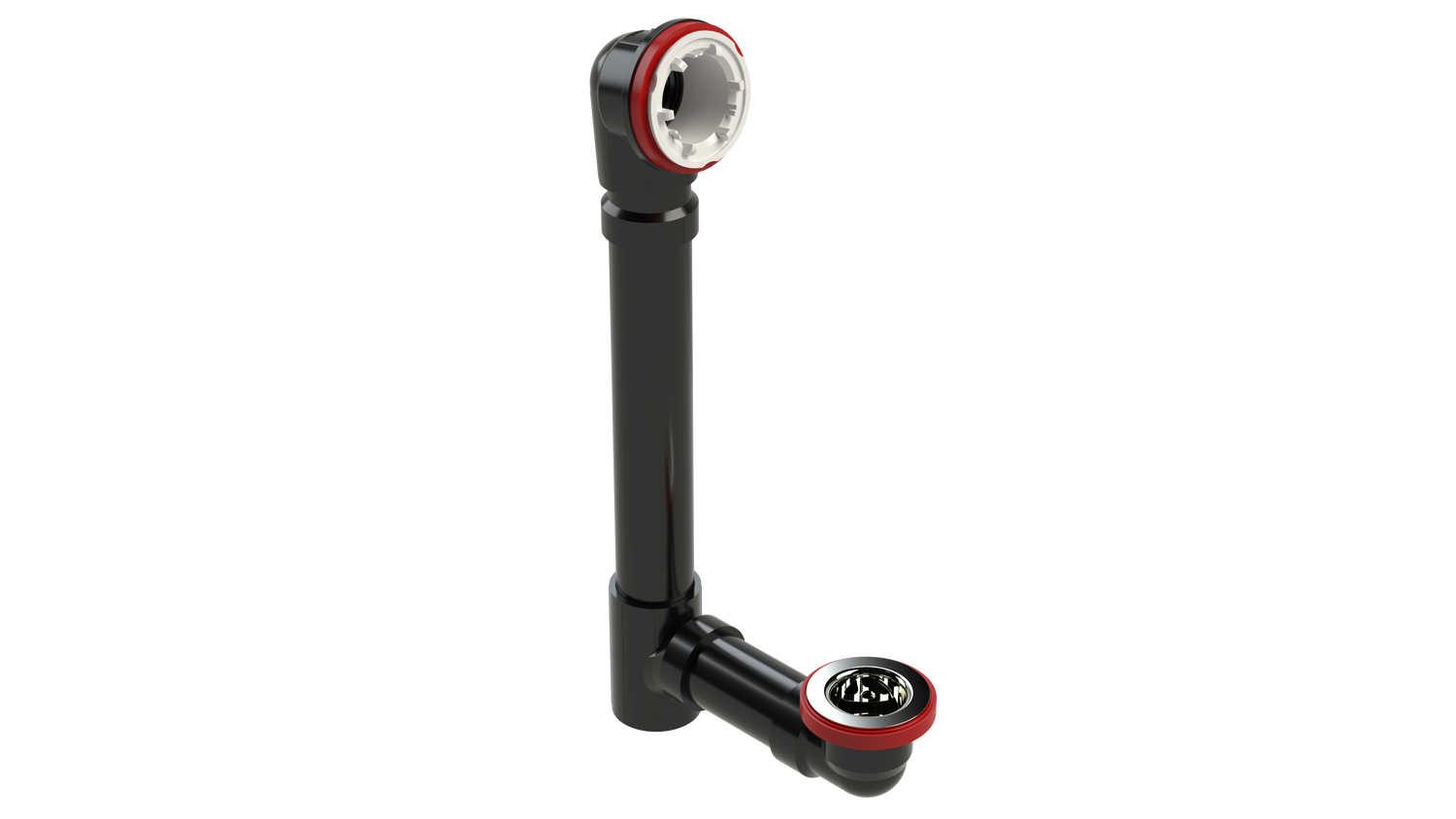

ABS Offset Waste & Overflow Rough-in (6040RI-16)

The OS&B 6040RI-16 is a 1-1/2" Schedule 40 ABS offset waste and overflow rough-in. It features a spin-on tie plate, an angle adapter and a large strainer, and is made for 1-1/2" ABS pipe. It carries the cCSAus Meets UPC & IPC Code mark, meaning it conforms to the requirements of the NPC, UPC, IPC and IRC.

Features

• Thick foam overflow gasket with an adhesive back.
• Spin-on tie plate for a tool-less installation.
• Overflow head with an integrated 6-degree angle.
• Overflow head with aggressive threads for a quicker and easier installation.
• Angle adapter included; its use is optional.
• Self-clinging rubber waste gasket.
• Stainless steel coarse thread strainer.

Specifications

• Model: 6040RI-16
• Type: Offset waste and overflow rough-in
• Material: ABS
• Pipe size: 1-1/2" ABS pipe
• Length: Standard
• Certifications: CCSA US UPC Certification; ASME A112.18.2/CSA-B125.2
