ABS OFFSET WASTE & OVERFLOW PLUG & CHAIN EXTENDED (6040CS-20CP)

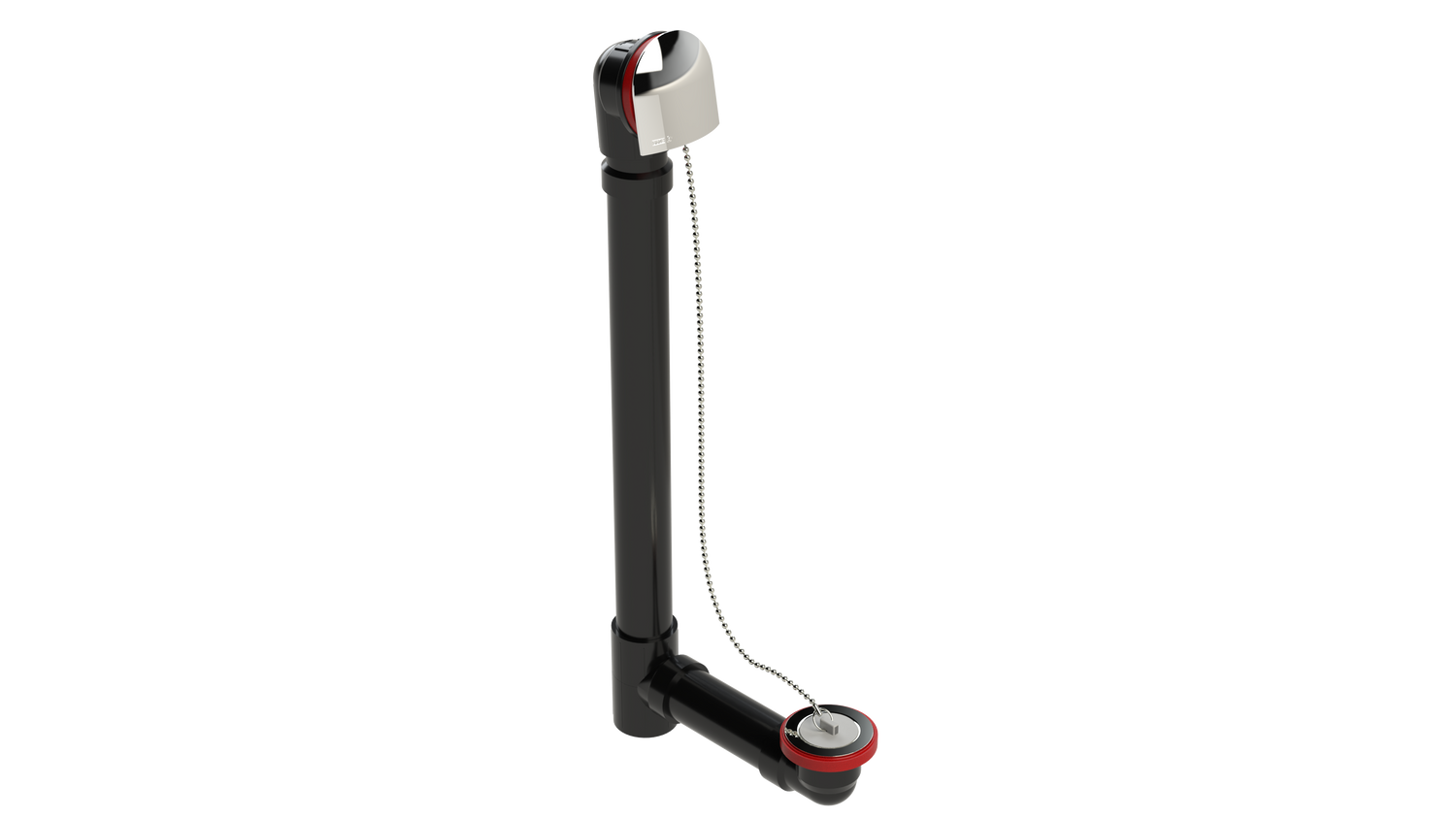

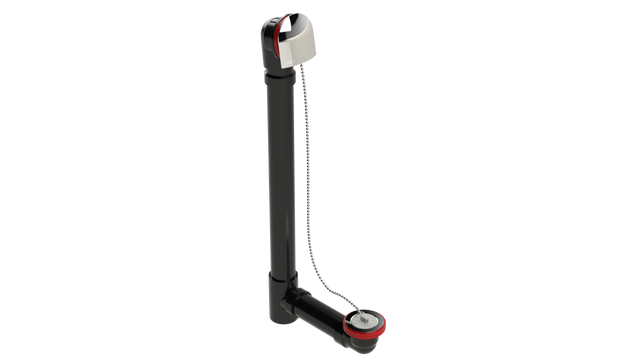

The OS&B 6040CS-20CP is a 1-1/2" ABS offset bath waste & overflow in an extended length with a plug & chain stopper. It is specified as a Schedule 40 ABS solvent weld extended-length waste & overflow, and features a spin-on tie plate, an angle adapter (use optional) and a Bell SlideOn™ faceplate. The large strainer pairs with the plug & chain stopper, and the overflow head has an integrated 6 degree angle.

Features

• Bell SlideOn™ faceplate
• Thick foam overflow gasket with an adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Large strainer with a plug & chain stopper

Specifications

• Style: Offset
• Pipe size: 1-1/2"
• Material: ABS
• Length: Extended
• Faceplate: Bell SlideOn™
• Stopper: Plug & chain
• Finish: Chrome Plated
• Certification: CCSA US UPC Certification
• Code conformance: The cCSAus Meets UPC mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC
