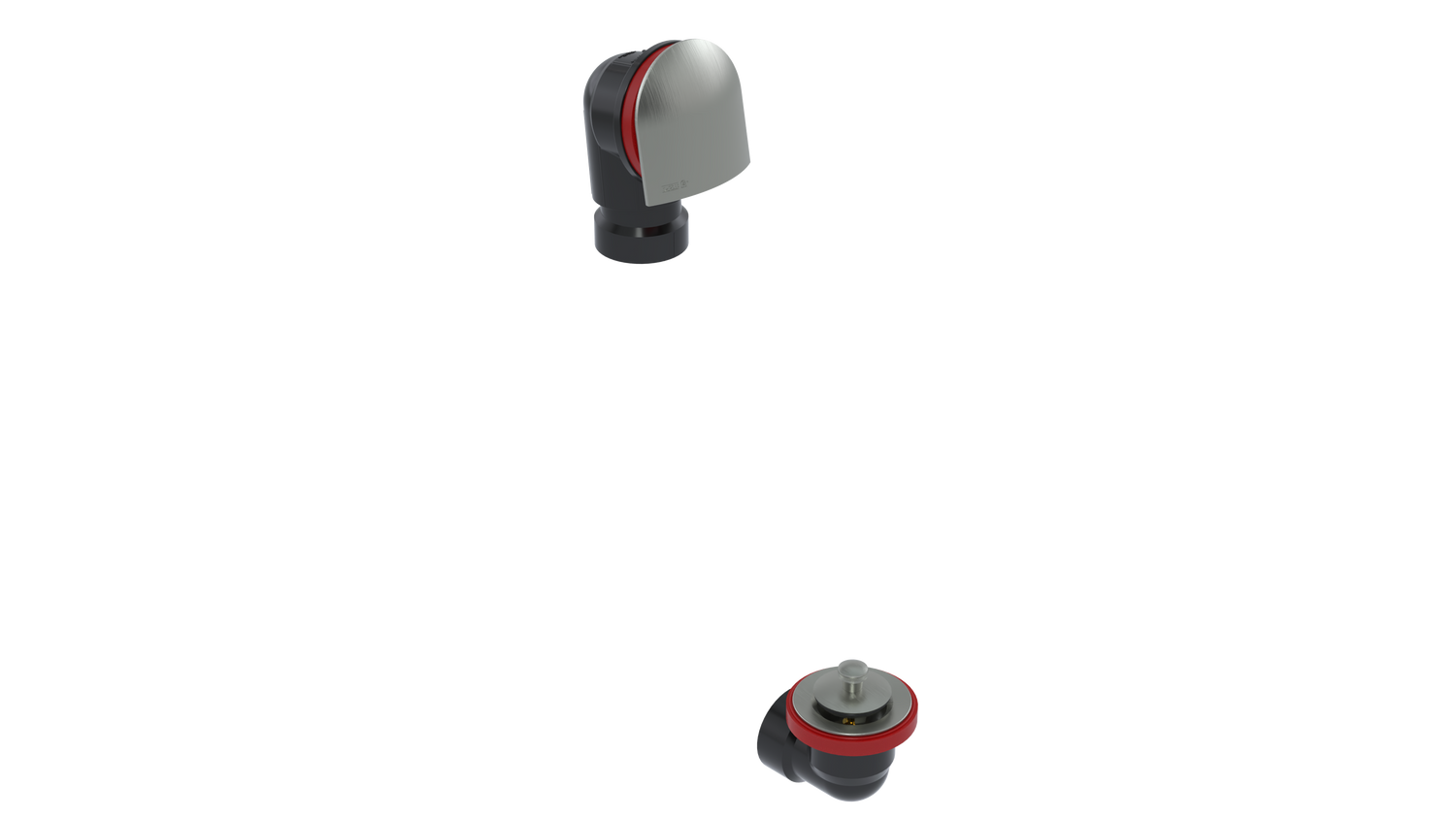

ABS OFFSET WASTE & OVERFLOW LIFT & TURN HALF KIT (6040LHK)

The OS&B 6040LHK is a 1-1/2" ABS offset Lift & Turn bath waste and overflow in the half kit version. It features a bell SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer and Lift & Turn stopper. It is an offset style 1-1/2" Schedule 40 ABS solvent weld bath waste and overflow, in a half kit (less tee) configuration.

Features

• Bell SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Large strainer with Lift & Turn stopper

Specifications

• Material: ABS
• Construction: 1-1/2" Schedule 40 ABS
• Connection: Solvent weld
• Style: Offset
• Length: Half Kit
• Stopper: Lift & Turn
• Faceplate: Bell SlideOn™

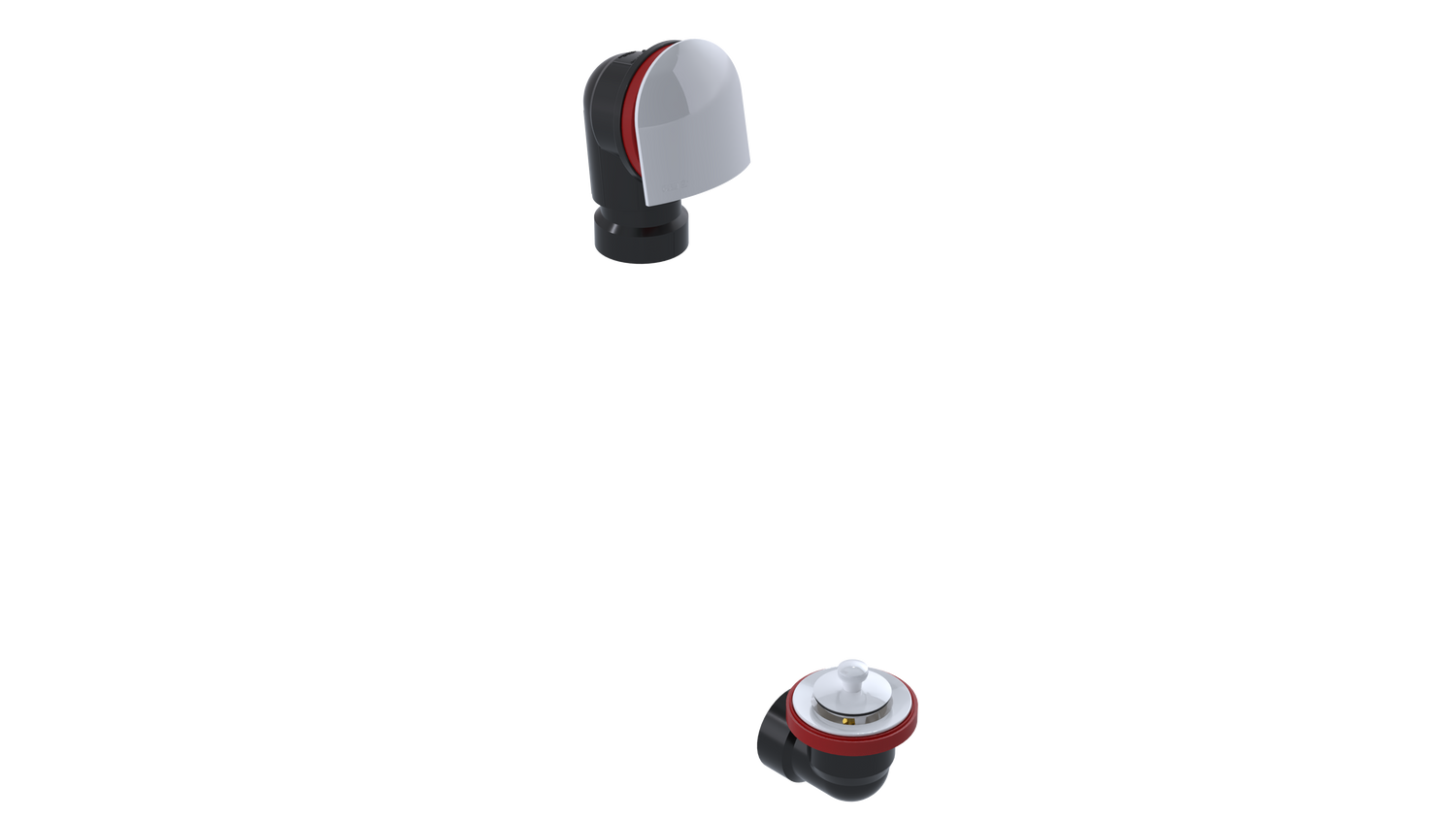

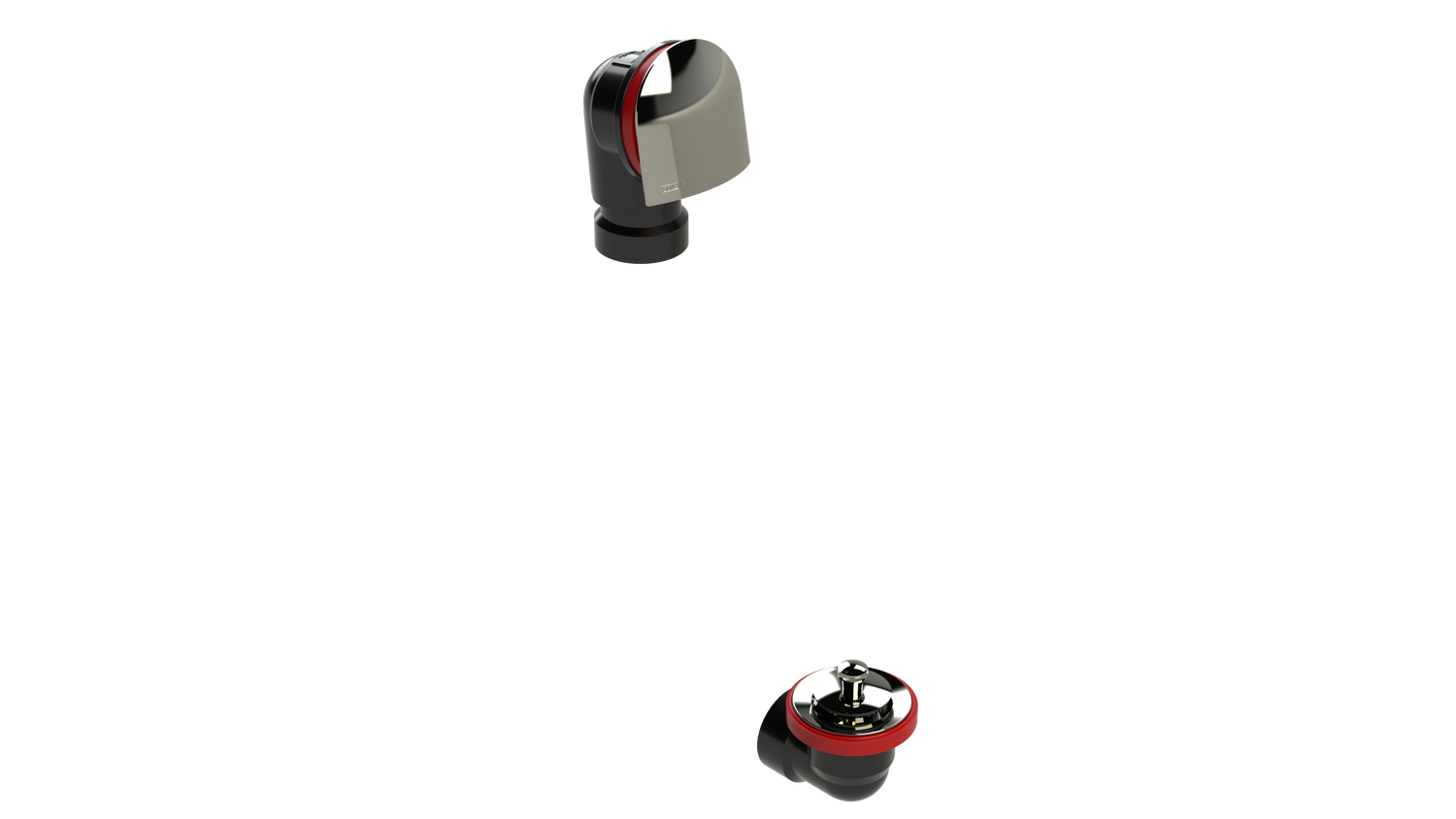

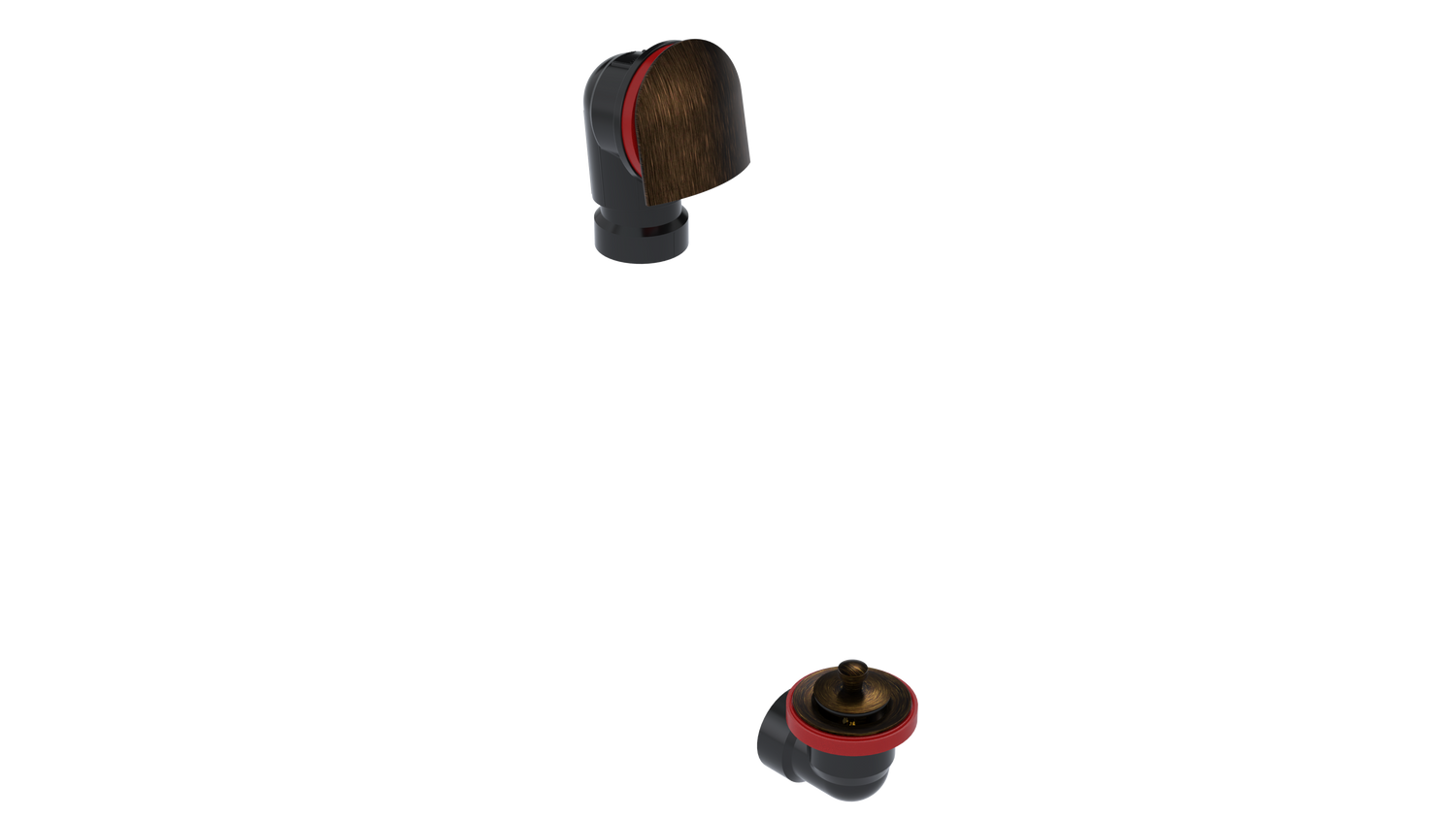

• Available finishes: Brushed Nickel, Chrome Plated, Polished Nickel, Venetian Bronze, White
• Certification (6040LHK-BN): CCSA US UPC Certification
