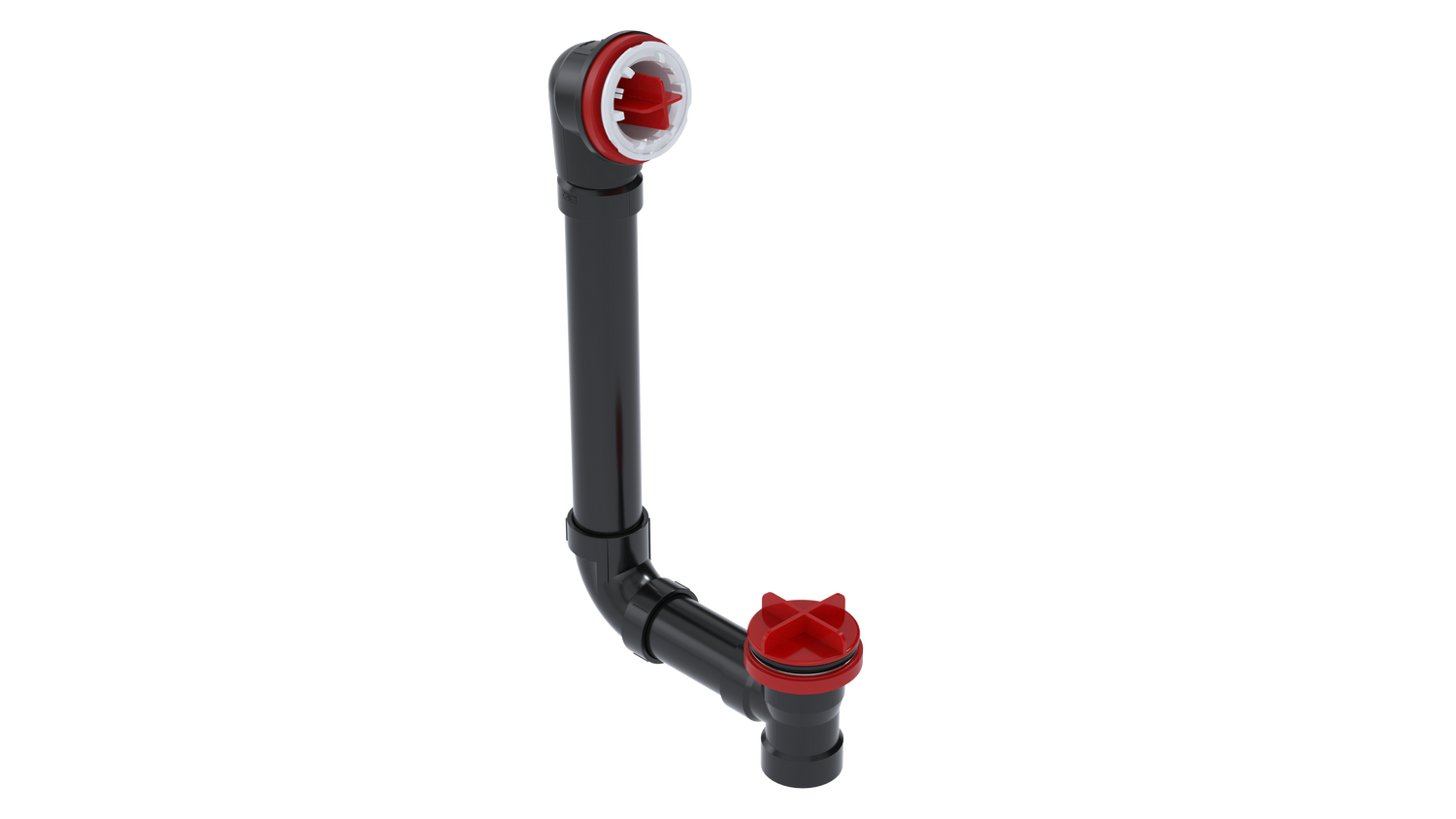

ABS Direct Waste & Overflow Testable Rough-In (73DTDRI-16)

The OS&B 73DTDRI-16 is a 1-1/2" ABS direct waste & overflow testable rough-in in the standard length. It features a spin-on tie plate, an angle adapter, a large strainer and thread-in test plugs, and is for 1-1/2" ABS pipe. It is built to ASME A112.18.2/CSA-B125.2.

Features

• Spin-on tie plate for a toolless installation
• Angle adapter included; use optional
• Thick foam overflow gasket with adhesive back
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Self clinging rubber waste gasket
• Coarse thread strainer
• Thread-in waste test plug with stainless steel post
• The "cCSAus" Meets UPC & IPC Code" mark means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Model: 73DTDRI-16
• Length: Standard
• Material: ABS
• Construction: Schedule 40 ABS
• Pipe: For 1-1/2" ABS pipe
• Certification: ASME A112.18.2/CSA-B125.2
