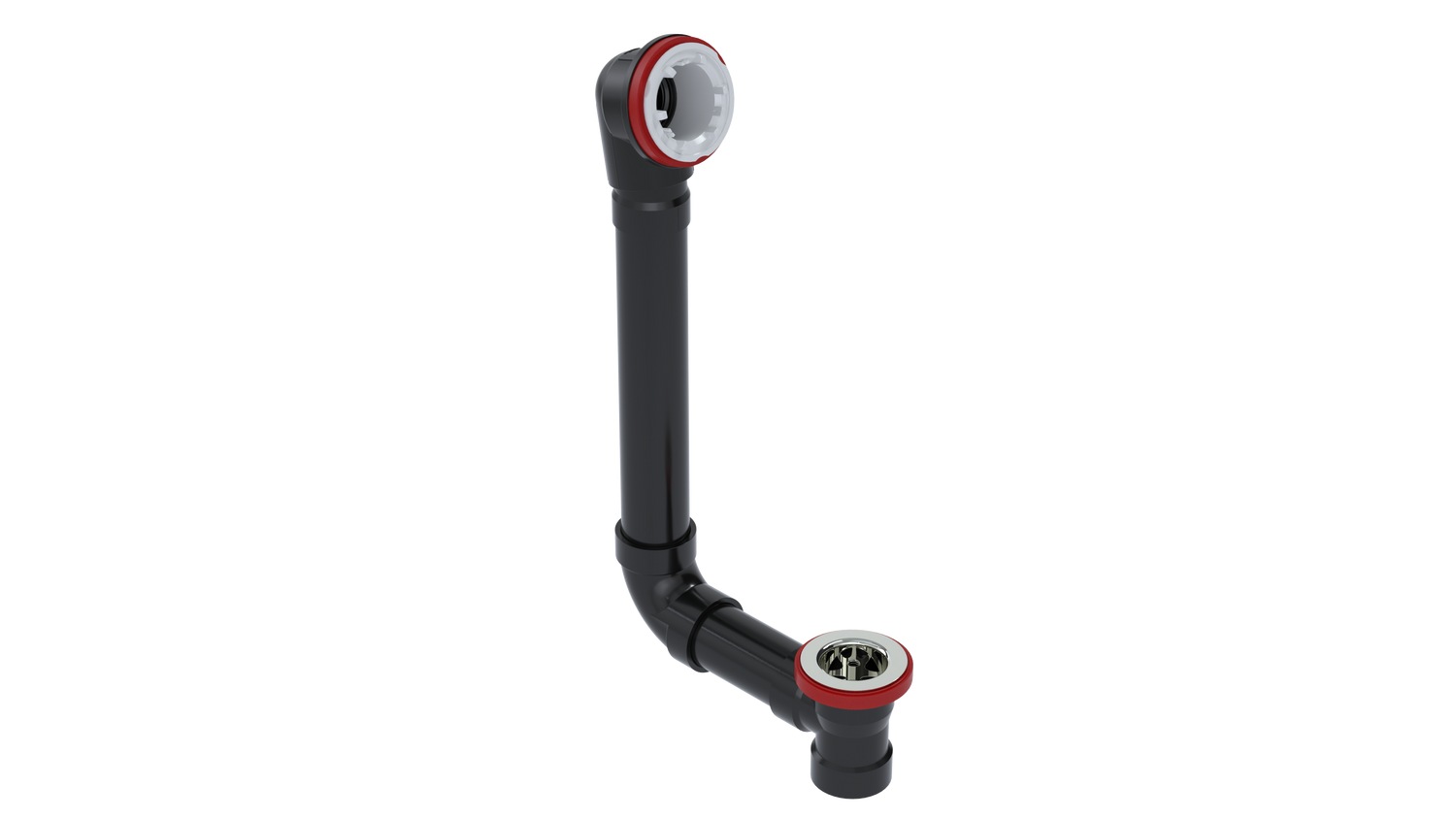

ABS Direct Waste & Overflow Rough-in (64DRI-16)

The OS&B ABS Direct Waste & Overflow Rough-in (64DRI-16) is a Schedule 40 ABS direct rough-in waste and overflow for 1-1/2" ABS pipe. The trim kit is sold separately. It features a spin-on tie plate, an angle adapter and a large strainer, and comes in the standard length.

Features

• Spin-on tie plate for a toolless installation
• Thick foam overflow gasket with adhesive back
• Overflow head with aggressive threads for a quicker and easier installation
• Self-clinging rubber waste gasket
• Polished stainless steel coarse thread strainer
• Angle adapter and large strainer

Specifications

• Construction: Schedule 40 ABS
• Material: ABS
• Pipe: For 1-1/2" ABS pipe
• Length: Standard
• Trim kit: Sold separately
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: "cCSAus" Meets UPC & IPC Code mark; conforms to the requirements of the NPC, UPC, IPC, and IRC
