ABS DIRECT DRAIN WASTE & OVERFLOW TIP TOE (64DTIP-CP)

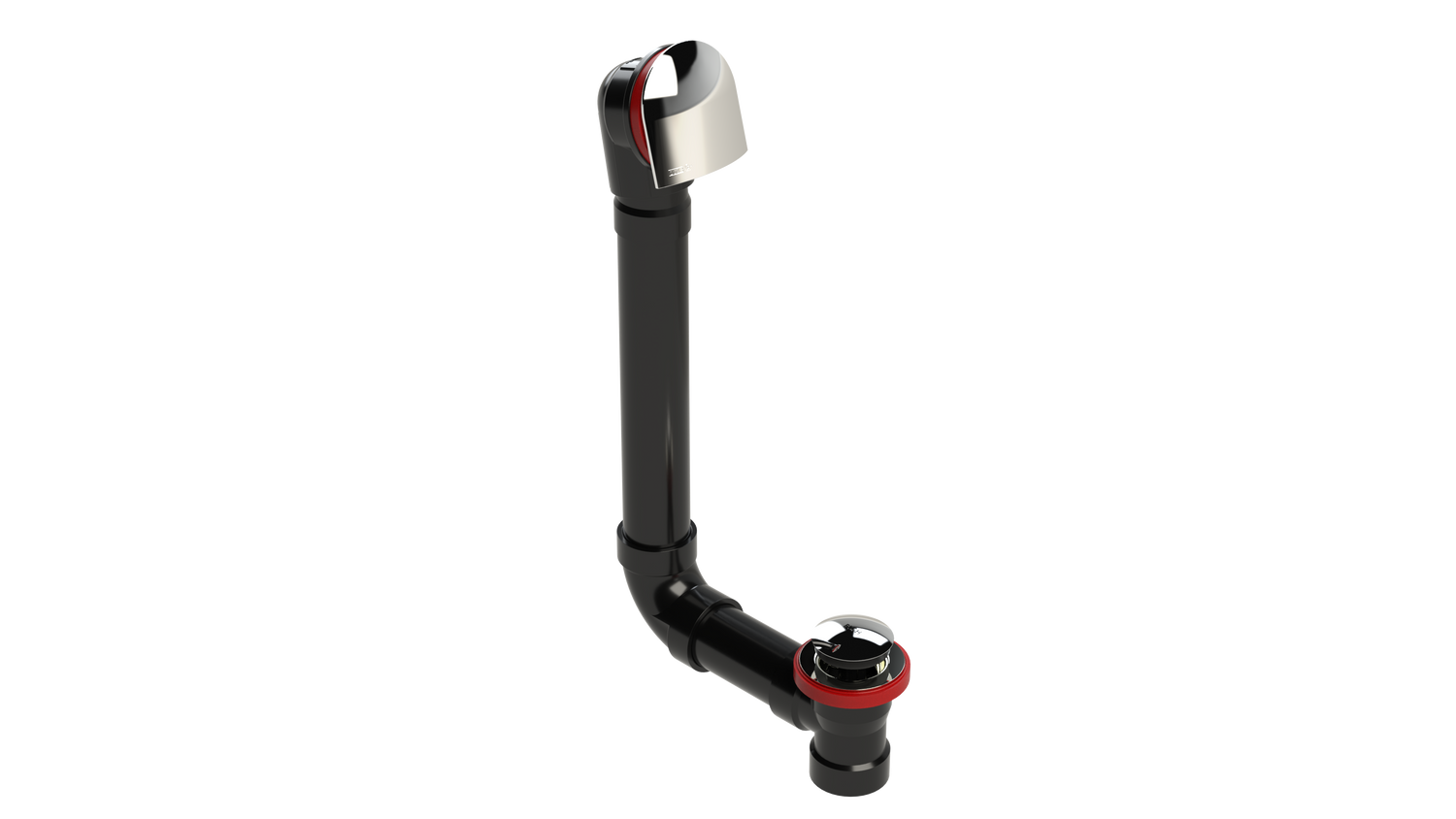

The OS&B 64DTIP-CP is a 1-1/2" ABS direct tip-toe bath waste and overflow with a Bell faceplate in Chrome Plated finish. It is a direct style 1-1/2" Schedule 40 ABS solvent weld bath waste/overflow (standard). It features a Bell SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer and tip-toe stopper.

Features

• Bell SlideOn™ faceplate
• Large strainer with tip-toe stopper
• Spin-on tie plate for a tool less installation
• Thick foam overflow gasket with adhesive back
• Overflow head featuring an integrated 6 degree angle
• Overflow head featuring aggressive threads for a quicker and easier installation
• Angle adapter included; use is optional
• Self-clinging rubber waste gasket and coarse thread strainer

Specifications

• Material: ABS
• Size: 1-1/2" Schedule 40 ABS, solvent weld
• Configuration: Standard
• Faceplate: Bell SlideOn™
• Closure: Tip-toe stopper
• Finish: Chrome Plated
• Certifications: CCSA US UPC Certification
• cCSAus mark: Conforms to the requirements of the NPC, UPC, IPC and IRC
