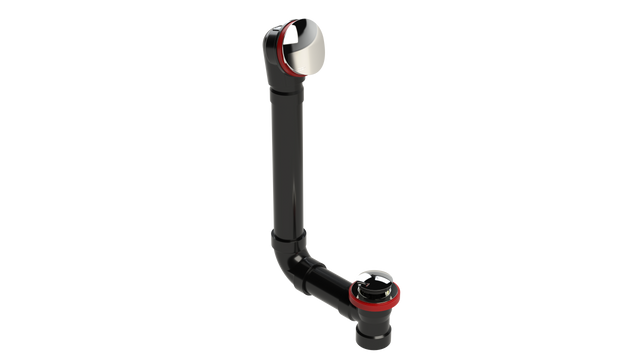

ABS DIRECT DRAIN WASTE & OVERFLOW TIP TOE (642DTIP-CP)

The OS&B 642DTIP-CP is a 1-1/2" ABS direct Tip-Toe waste and overflow with a Round SlideOn™ faceplate. It is a direct-style Schedule 40 ABS solvent weld bath waste/overflow (standard) with a spin-on tie plate, angle adapter (use optional), SlideOn™ faceplate and closure mechanism. The finish is Chrome Plated.

Features

• Round SlideOn™ faceplate.
• Large strainer with a Tip-Toe stopper.
• Thick foam overflow gasket with adhesive back.
• Spin-on tie plate for a toolless installation.
• Overflow head with an integrated 6 degree angle.
• Overflow head with aggressive threads for a quicker and easier installation.
• Angle adapter included; its use is optional.
• Self-clinging rubber waste gasket.
• Coarse thread strainer.
• Carries the cCSAus Meets UPC mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Brand: OS&B
• Material: ABS
• Pipe: 1-1/2" Schedule 40 ABS, solvent weld
• Configuration: Standard
• Faceplate: Round SlideOn™
• Stopper: Tip-Toe
• Finish: Chrome Plated
• Certification: CCSA US UPC
