ABS DIRECT DRAIN WASTE & OVERFLOW TIP TOE (641DTIP-CP)

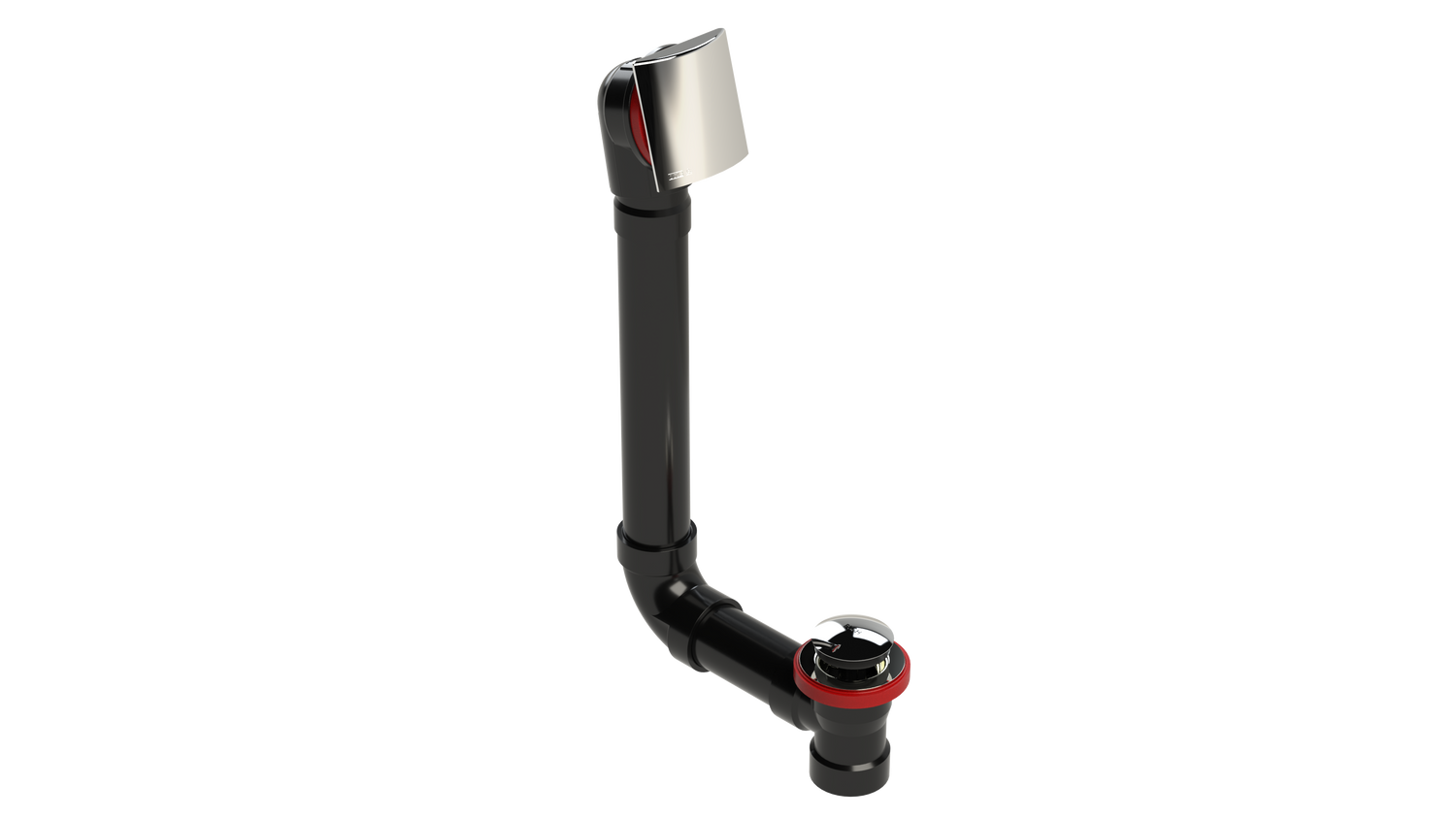

The OS&B 641DTIP-CP is a direct drain ABS bath waste and overflow with a Tip-Toe stopper, built from 1-1/2” Schedule 40 ABS for solvent weld installation. It pairs a Square SlideOn™ Faceplate with a Spin-on Tie Plate and an Angle Adapter, plus a large strainer and Tip-Toe closure. The product carries the cCSAus Meets UPC mark, meaning it conforms to the requirements of the NPC, UPC, IPC and IRC.

Features

• Direct style 1-1/2” Schedule 40 ABS solvent weld bath waste/overflow, standard configuration.
• Angle Adapter is provided; its use is optional.
• Large strainer with a Tip-Toe stopper closure mechanism.
• Certified cCSAus Meets UPC, conforming to the NPC, UPC, IPC and IRC.

Specifications

• Model: 641DTIP-CP
• Brand: OS&B
• Type: Direct style bath waste/overflow, standard
• Material: 1-1/2” Schedule 40 ABS
• Connection: Solvent weld
• Faceplate: Square SlideOn™ Faceplate
• Closure: Tip-Toe stopper
• Finish: Chrome Plated
• Certification: cCSAus Meets UPC (NPC, UPC, IPC and IRC)
