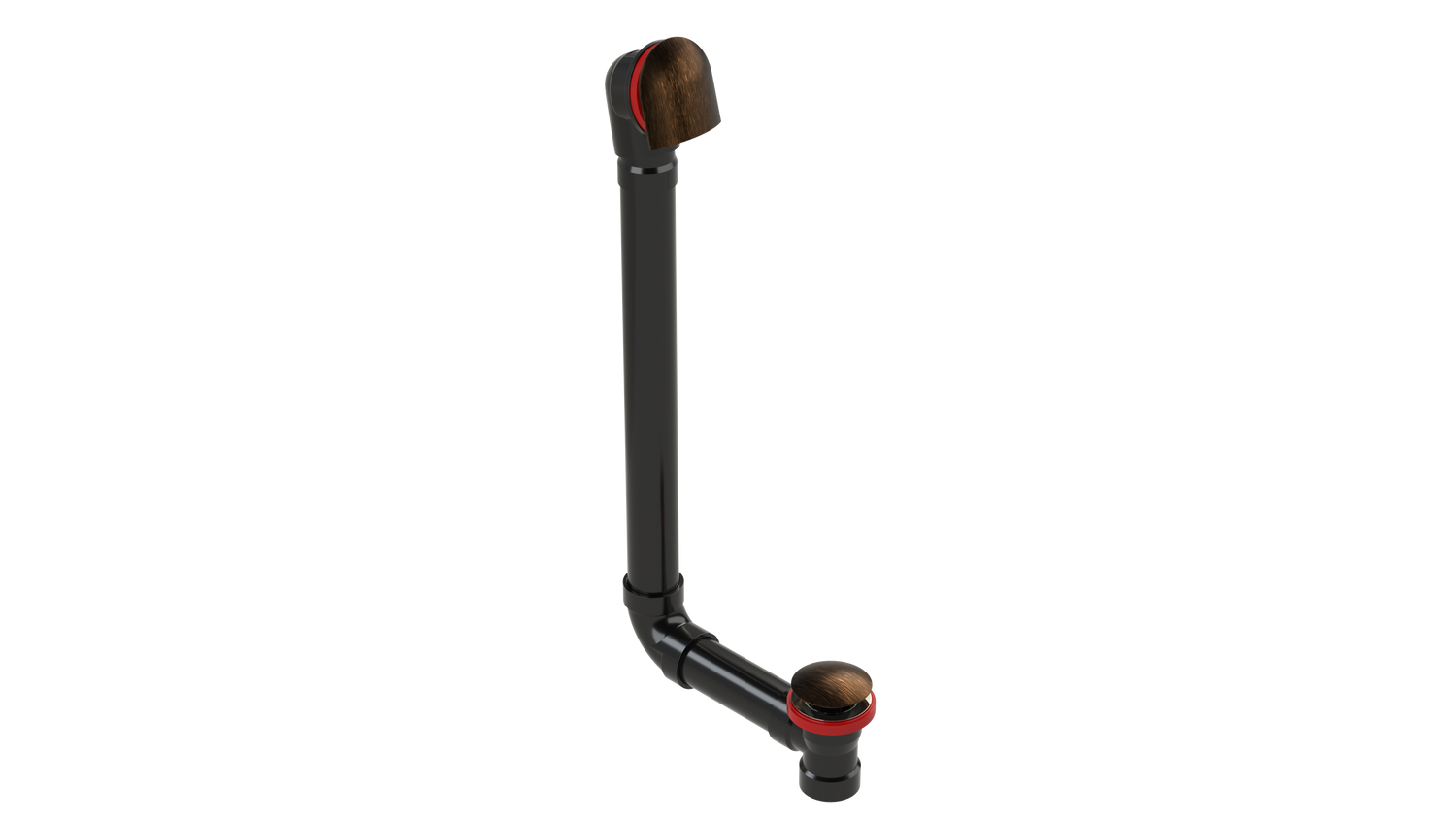

ABS DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (64DQ-20VB)

The OS&B ABS Direct Drain Waste & Overflow Clicker® Extended (64DQ-20VB) is a Schedule 40 ABS direct waste and overflow with Clicker®, finished in Venetian Bronze, made for 20" bathtubs. It features a Bell SlideOn™ faceplate, a spin-on tie plate and an angle adapter, with a large strainer and EUROCLICKER® stopper. It uses 1-1/2" ABS pipe.

Features

• Bell SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a toolless installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Construction: Schedule 40 ABS
• Material: ABS
• Pipe: Uses 1-1/2" ABS pipe
• Bathtub size: For 20" bathtubs
• Faceplate: Bell SlideOn™
• Stopper: EUROCLICKER®
• Finish: Venetian Bronze
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: "cCSAus" Meets UPC & IPC Code mark; conforms to the requirements of the NPC, UPC, IPC, and IRC
