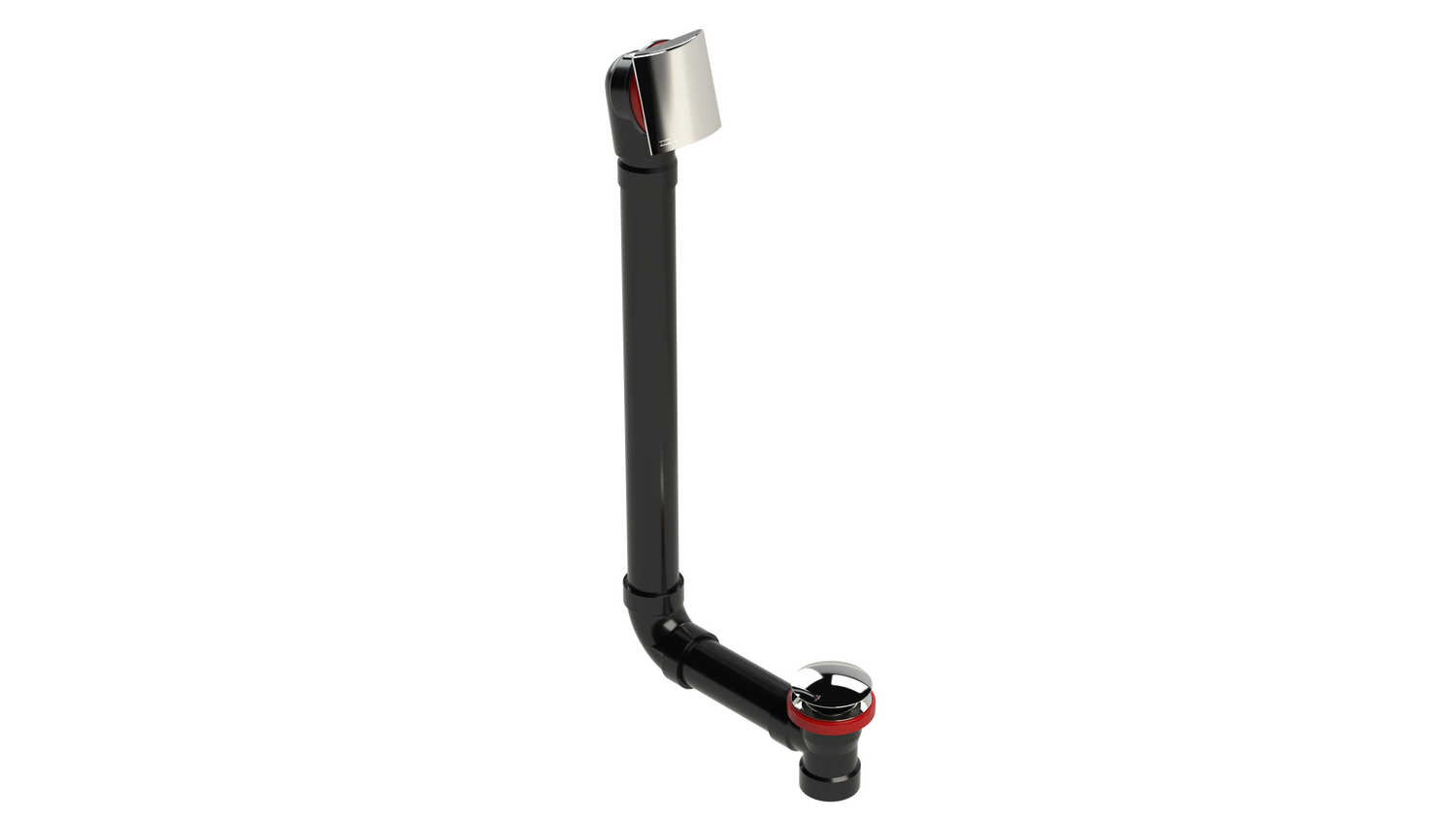

ABS DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (641DQ-20CP)

The OS&B 641DQ-20CP is a Schedule 40 ABS direct waste & overflow with Clicker®, extended, for 20" bathtubs. It features a SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer and EUROCLICKER® stopper. It uses 1-1/2" ABS pipe.

Features

• SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a toolless installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head featuring aggressive threads for a quicker and easier installation
• Angle adapter included; use is optional
• Self clinging rubber waste gasket
• Coarse thread strainer
• Large strainer with Clicker® stopper
• Meets ASME A112.18.2/CSA-B125.2
• The cCSAus mark means the product conforms to the requirements of the NPC, UPC, IPC and IRC

Specifications

• Material: ABS
• Type: Direct waste & overflow, extended
• Bathtub size: For 20" bathtubs
• Pipe: 1-1/2" ABS
• Closure: Clicker®
• Finish: Chrome Plated
• Certification: CCSA US UPC Certification
