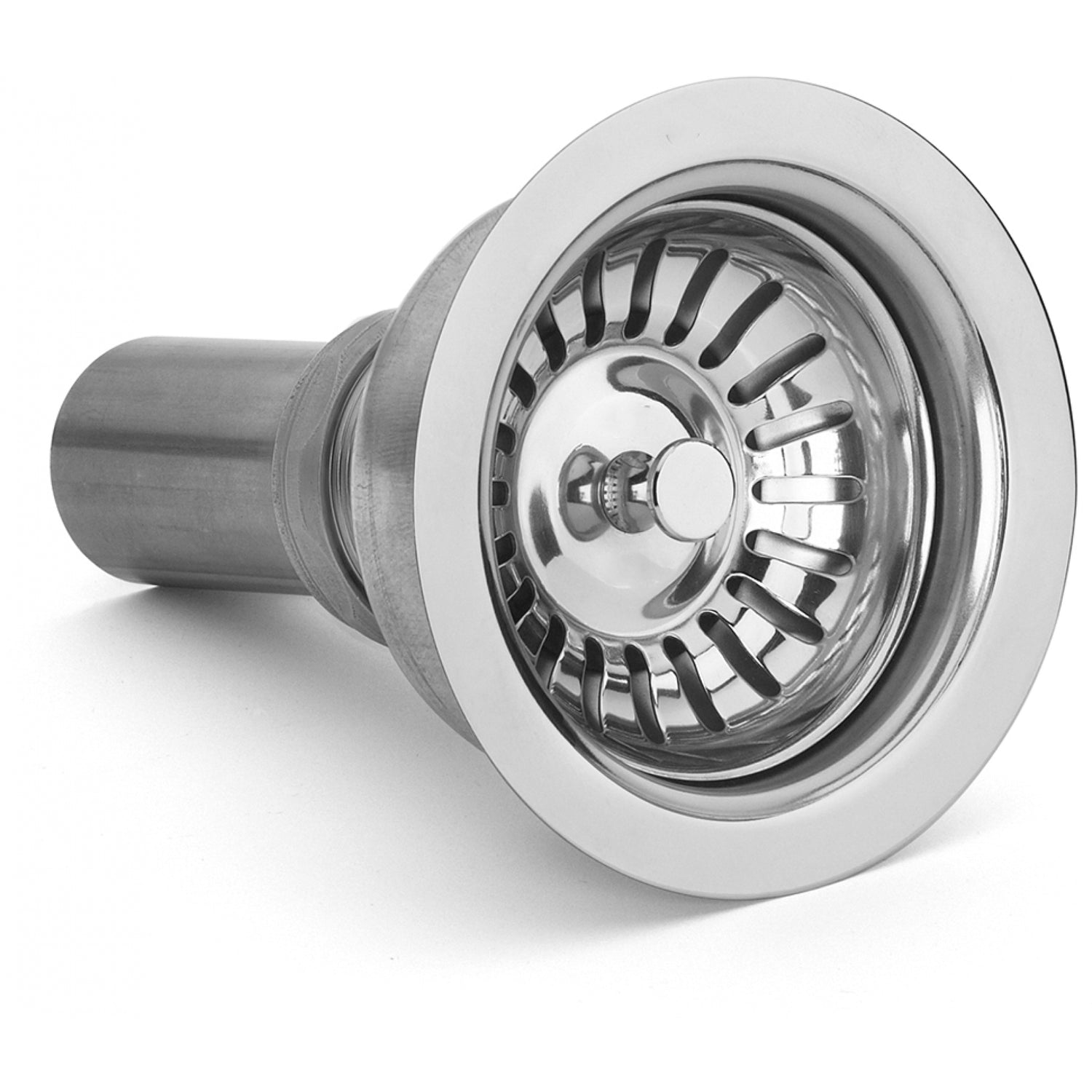

1140F-316 Type 316 3 1/2" waste fitting

The Franke 1140F-316 is a 3 1/2" (89 mm) waste fitting with a Type 316 stainless pull-up crumb cup strainer. The strainer comes with a 1-1/2" x 3" (38 mm x 76 mm) Type 316 stainless steel tailpiece, for enhanced corrosion resistance. It is certified to ASME A112.18.2-2005/CSA B125.2-2005.

Features

• Pull-up crumb cup strainer design
• Strainer and tailpiece are both Type 316 stainless steel
• Material code EN1.4401 17/12/2
• cUPC certification

Specifications

• Model: 1140F-316
• Product category: Waste fittings
• Waste size: 3 1/2" (89mm)
• Tailpiece diameter: 1 1/2" (38mm)
• Tailpiece: 1-1/2" x 3" (38 mm x 76 mm)
• Type of material: Type 316
• Material code: EN1.4401 17/12/2
• Waste tailpiece material: Type 316
• Certification: cUPC; ASME A112.18.2-2005/CSA B125.2-2005
