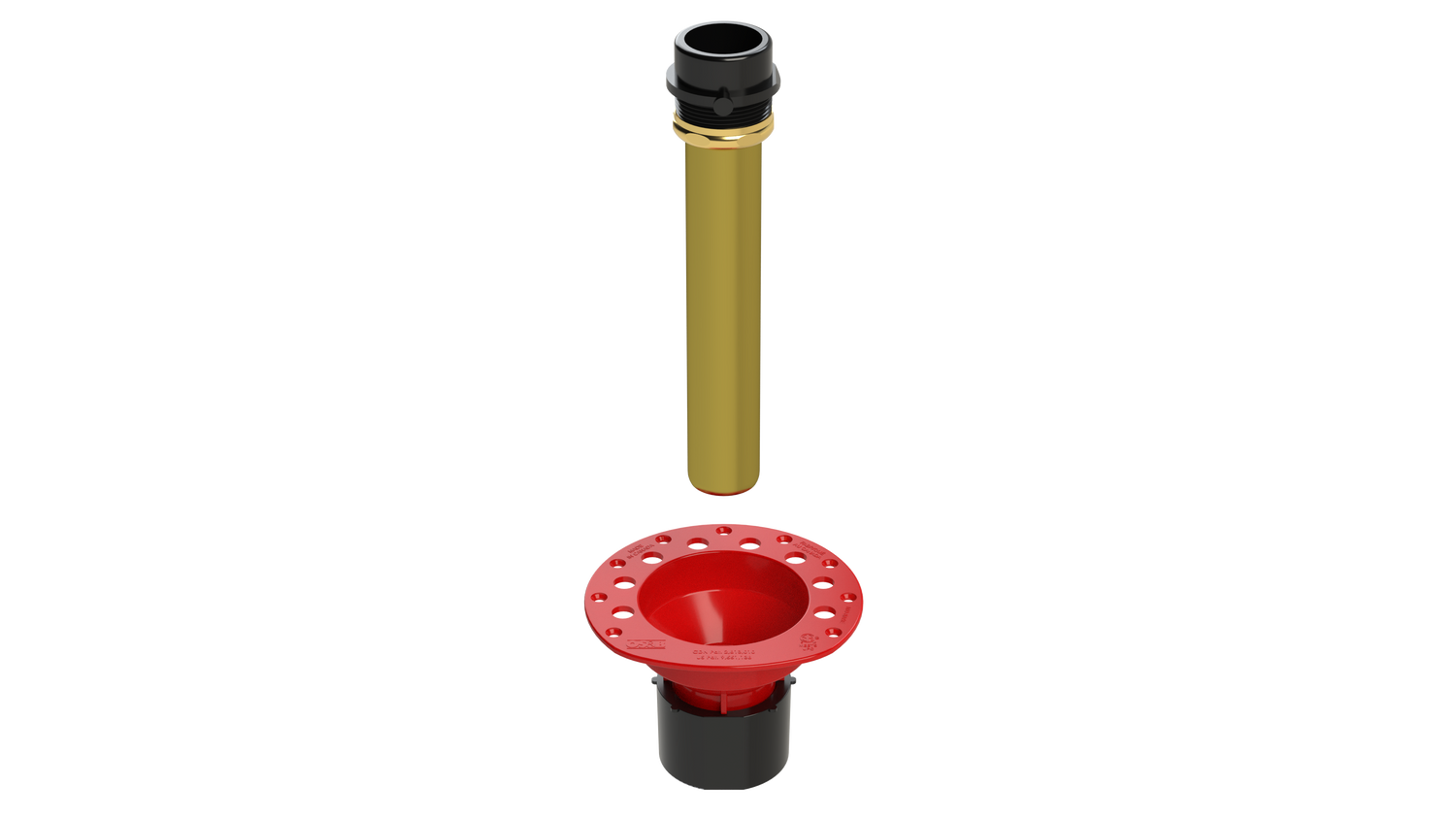

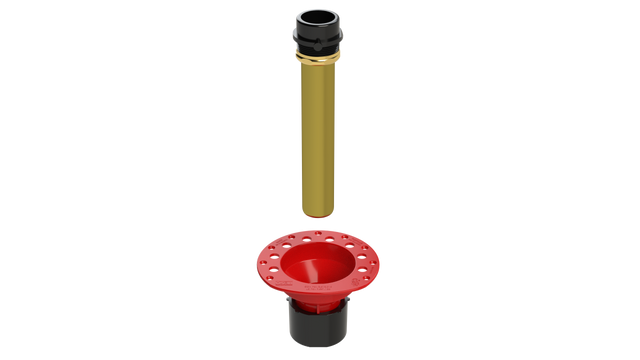

1 Piece ABS Island Tub Drain® Testable Rough-in for Freestanding Tubs (ITD60)

The OS&B ITD60 is a one-piece ABS testable rough-in Island Tub Drain® for freestanding tubs. The original Island Tub Drain created a new category and set the industry benchmark for freestanding tub drains, and ITD is still 100% engineered and manufactured in Canada. It is designed to be installed in an 8" joist space or greater; it is not for use with liquid applied or sheet membranes and must be installed in a dry area with no potential of water contact.

Features

• More compact asymmetrical deck flange makes installation in tight spaces easier
• Low profile 1 piece design allows for installation in an 8" joist space or greater
• Deeper well design accommodates bath drain fittings
• Built-in snap-off test cap allows for water/air/smoke testing (rated to 30psi)
• Allows the freestanding tub location to be defined at rough-in and the tub to be installed over finished floor
• Flanged brass tailpiece with nut & washer and lubricant
• ABS adapter kit that attaches to ABS bath wastes
• 2" x 1-1/2" ABS reducing bushing
• Removable mortar/debris guard and cutting template
• Island Tub Drain® is patented (Canadian Patent 2,813,010 & US Patent 9,551,138)

Specifications

• Material: ABS
• Joist space: 8" or greater
• Test cap rating: 30psi
• Tailpiece: 1-1/2", 20 GA, 8" L brass
• Drain seal: EPDM, 60 durometer
• Tile cap: Polyethylene
• Certifications: CCSA US UPC Certification
