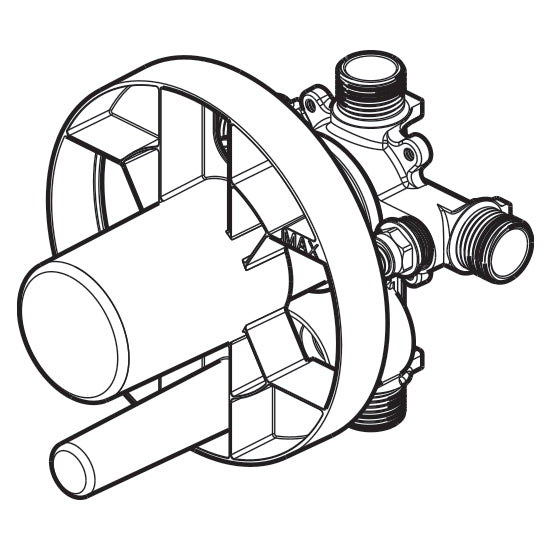

1/2 inches Pressure Balance Valve with Integrated Diverter and ABS Protective Cover

The Kalia 101573 is a 1/2” pressure balance valve with an integrated diverter and an ABS protective cover. Its push-button diverter has an automatic reset, and the valve has solid brass construction and integrated service stops. Maximum flow rate is 20 liters/min. (5.28 gallons/min.) at 60 psi.

Features

• 1/2” NPT male inlet, threaded or sweat
• Total adjustment of 19mm (3/4’’)
• Support for better stability during installation included
• Can be installed back-to-back
• Meets or exceeds ASME A112.18.1 / CSA B125.1
• Kalia Inc. guarantees all aspects of its products to be free of defects in material and workmanship for normal residential use; refer to the warranty included with Kalia products for details.

Specifications

• Model: 101573
• Valve type: Pressure balance with diverter
• Diverter: Push-button, with automatic reset
• Inlet: 1/2” NPT male, threaded or sweat
• Maximum flow rate: 20 liters/min. (5.28 gallons/min.) at 60 psi
• Total adjustment: 19mm (3/4’’)
• Material: Solid brass
• Cover: ABS protective cover
• Standards: ASME A112.18.1 / CSA B125.1
• Installation: Must be installed following the installation instructions provided
• Note: Dimensions are approximated and are subject to changes; please refer to the installation instructions
