On paper, a shower drain looks like the simplest purchase in the bathroom. One fitting, no moving parts, no finish decisions beyond the grate. Yet ask a plumber anywhere from Vancouver to Halifax what turns a quick bathroom job into a long one, and drain work comes up constantly. The reason is that the drain connects to everything you cannot see: the subfloor, the waterproofing, and the rough-in plumbing below.
This guide walks through the real shower drain installation cost factors, framed as effort and complexity rather than dollar figures, so you can size up your own project honestly before you buy anything. The short version: the drain itself is rarely the hard part. Where it sits, and what has to move to accommodate it, is.
The type of drain sets the baseline

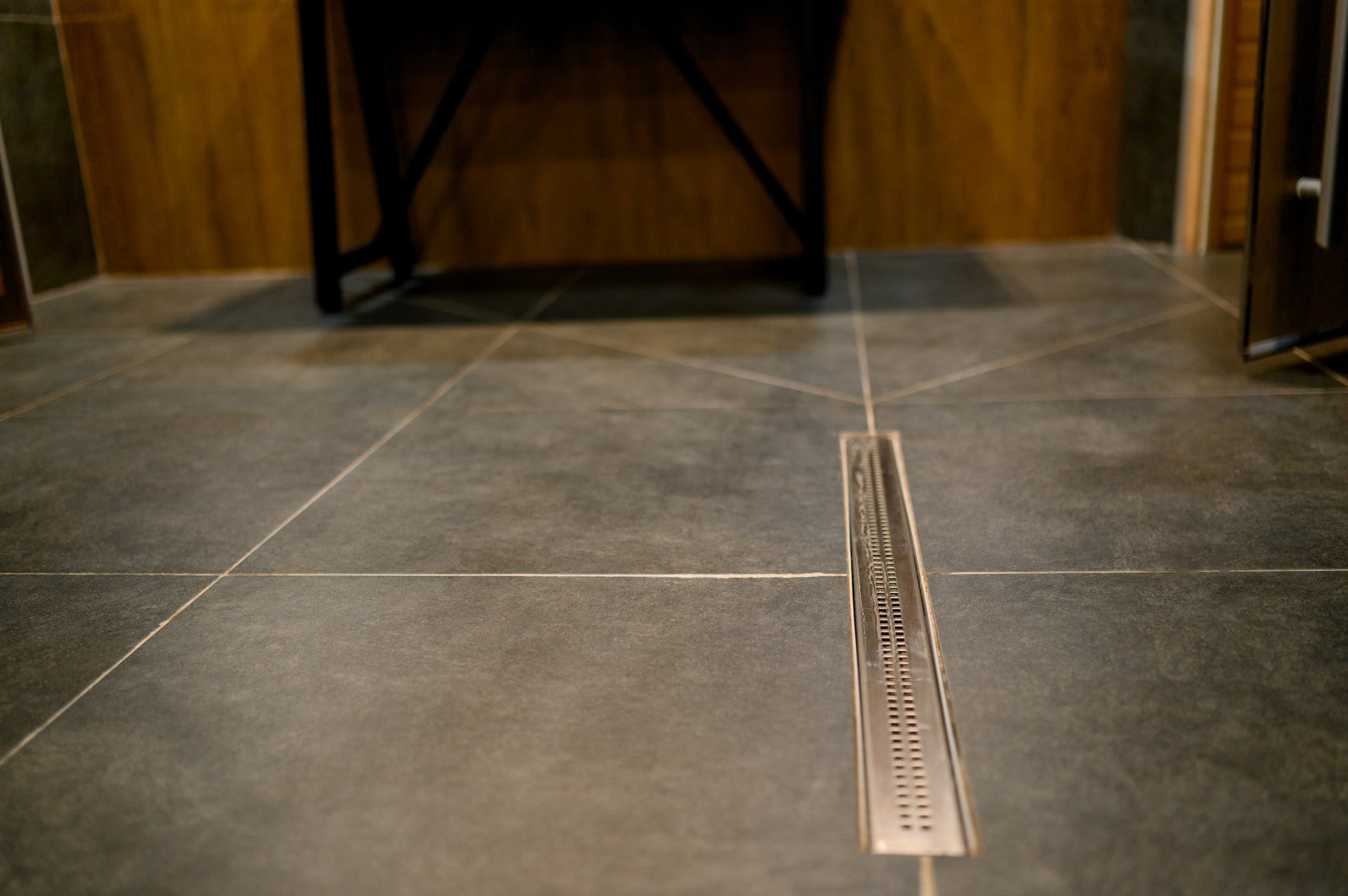

Not all shower drains ask the same of your floor. A conventional round or square point drain in the centre of the shower is the pattern most Canadian homes were plumbed for, so a like-for-like replacement usually lines up with the existing trap. A linear drain along one wall or at the entrance changes the geometry of the whole floor: the slope runs in a single plane toward one edge, which often means relocating the trap and rebuilding the pre-slope. Drains integrated into a factory shower base are the simplest of all, provided your rough-in matches the base's drain location.
| Drain type | Typical situation | Relative effort |
|---|---|---|
| Point drain, same location | Replacing a worn drain or resetting a base | Low to moderate |
| Point drain, new location | Larger shower footprint, layout change | Moderate to high |
| Linear drain | Curbless or barrier-free showers, large-format tile | High |
| Base-integrated drain | Acrylic or composite base over matching rough-in | Low |
Browsing the shower and floor drains collection before you commit to a layout is worth doing, because grate size, flange style, and outlet orientation all affect what your installer has to build around.
What sits under your floor matters more than the drain
The single biggest driver of effort is access to the plumbing below. A main-floor bathroom over an unfinished basement is the easy case: the trap and arm are visible from below, and moving or replacing them is straightforward work. A second-storey bathroom over a finished ceiling means either opening that ceiling or doing everything blind from above, and both add real labour.
Concrete is its own category. In condos and slab-on-grade homes across Canada, relocating a drain means cutting and coring concrete, then patching it to the building's standards. In a condo, that work usually also involves strata or syndicate approval and, in most buildings, a licensed plumber as a condition of the permission. If your slab-built shower drain is staying exactly where it is, none of this applies, which is why so many condo renovations keep the original drain location even when everything else changes.
Site prep and waterproofing are half the job
A shower drain is not installed into a floor so much as into a waterproofing system, and the two have to match. Traditional mortar-bed showers use a clamping-collar drain that sandwiches the liner; modern bonded-membrane systems use a flanged drain that the sheet or liquid membrane adheres to directly. Mixing systems is where leaks come from, so the drain choice and the waterproofing method get decided together, not separately.
This is also where a factory base earns its keep. A quality acrylic or composite base from the shower bases collection arrives with the slope built in and a defined drain opening, which removes the pre-slope, membrane, and flood-test steps that a tiled floor demands. If your renovation budget of time and disruption is tight, a base over an existing rough-in is the lowest-effort path to a finished shower.
Plumbing, venting, and the code picture in Canada
Every shower drain needs a trap and proper venting, and that is where code enters the picture. The National Plumbing Code of Canada sets the model, but provinces and territories adopt it with their own amendments, and cities layer permit requirements on top. Practically, that means a straight swap in the same location is often permitted work you or a plumber can do simply, while moving a drain or altering venting generally triggers a plumbing permit and inspection. Check with your local authority before demolition, not after.
Two more Canadian specifics worth knowing. First, look for CSA or cUPC certification marks on any drain and trap components you buy; inspectors look for them too. Second, cold climate matters: drains and traps serving showers above unheated spaces, in cottages, or near exterior walls need thought about freeze protection and winterization, especially in the Prairies and anywhere the building sits empty in January.
When DIY is realistic, and when it is not
There is honest DIY territory here, and there is territory where a licensed plumber protects both your floor and your insurance position.
- Realistic DIY: replacing a grate or strainer, swapping the top assembly of an existing drain, installing a new base whose drain lands on the existing rough-in, and cosmetic upgrades like a tile-in grate on a compatible body.
- Pro territory: relocating a drain, any concrete cutting, tying a new drain into an unfamiliar membrane system, venting changes, and anything in a condo where the building requires licensed trades.
A useful self-test: if the job stops at the drain body, it is probably yours. If it continues into the trap, the pipe, or the structure, bring in a professional.
Where the drain lands in your renovation sequence
Drain decisions come early, even though the drain disappears under everything else. A sensible order for a shower rebuild looks like this:
- Demolition and inspection of the existing rough-in.
- Any plumbing relocation, followed by inspection where required.
- Subfloor repair and pre-slope, with the drain body set.
- Waterproofing and flood test, or base installation.
- Tile, glass, and trim, then the finished grate last.
Buy the drain before step two, because its outlet size and flange style dictate the rough-in. It ships easily anywhere in Canada, so there is no reason it should be the item holding up your schedule. For help planning the rest of the enclosure around it, our bathroom and kitchen guides cover bases, doors, and shower systems in the same practical terms.
Frequently asked questions
Can I replace a shower drain without removing the tile?
Sometimes. If only the grate or the top assembly is worn, many drains allow replacement from above. If the drain body, its seal to the membrane, or the trap has failed, the floor around the drain has to open up, and at that point most installers recommend assessing the whole pan rather than patching one spot.
Are linear drains always harder to install than point drains?
In a renovation, usually yes, because the trap typically has to move toward a wall and the floor needs a single-plane slope. In new construction or a full gut, the gap narrows considerably since the rough-in is being built from scratch either way. The payoff is a curbless-capable, large-tile-friendly floor.
Do I need a permit to move a shower drain in Canada?
In most jurisdictions, relocating drainage or altering venting requires a plumbing permit, while a same-location replacement often does not. Rules vary by province and municipality, so confirm with your local building department. Condos add their own approval layer regardless of what the city requires.
What should I check before buying a replacement drain?
Four things: the outlet size of your existing pipe, the connection type your waterproofing system needs, the grate size and finish you want visible, and a CSA or cUPC certification mark. If any of the first two are uncertain, photograph the existing rough-in and confirm compatibility before ordering.
