Set a freestanding tub in the middle of a bathroom and there is no wall to hide the plumbing in. Everything — waste line, trap, and usually the filler too — comes up through the floor, and the fitting that makes it work is the island tub drain. Its rough-in is the least forgiving part of the project: miss by an inch and you are shifting the tub off its planned spot or opening the floor twice. Here is how the assembly works, how to position it, what your sub-floor needs to allow, and why a good plumber will not quote the job without the tub drawing.
What an island tub drain actually is
With an alcove or drop-in tub, the waste and overflow hang off the end of the tub inside a wall or skirt cavity, usually behind an access panel. A freestanding tub has none of that. An island tub drain is a rough-in assembly that sits below the floor — typically inside a joist bay — with a riser that comes up through one opening in the finished floor to meet the tub's tailpiece.
Most kits follow the same pattern: a body or box mounted to the framing before the finished floor goes down, a trap below it, and a trim piece that finishes the floor penetration once the tub is set. Canadian rough-in specialists like OS&B are well known for this style of kit, and decorative makers such as Mountain Plumbing offer finish-matched trim; our drains and waste fittings collection covers both ends of that spectrum. Many freestanding tubs also skip the overflow entirely or build it into the tub body — one more way the tub choice drives the rough-in, not the other way around.
Positioning comes off the tub spec sheet — nothing else
There is no standard drain location for freestanding tubs — some drain dead centre, many are offset toward one end. The only authoritative source for the centre point is the manufacturer's rough-in drawing for the exact tub you are buying. In practice:
- Fix the tub's position in the room first. Decide the clearances you want around it and mark the tub's footprint on the subfloor.
- Transfer the drain location from the spec sheet. The drawing gives the drain centre relative to the tub's outline; measure from your footprint marks, not from walls the drawing does not reference.
- Confirm orientation. An offset drain means the tub only sits one way — flip it end-for-end and the drain misses by a wide margin.
- Verify against the physical tub before the floor closes. Manufacturers revise drawings and cast tubs can vary slightly; if the tub is on site, measure it.
This is why the sequence matters: choose the tub before anything gets roughed in. If you are still shortlisting, start with our ranking of freestanding tub brands in Canada and browse current models in the freestanding bathtubs collection.
Sub-floor depth: where installs get complicated
The rough-in body and trap need room below the finished floor — how much you have depends on the floor construction.
- Wood-framed floors are the easy case: most kits are designed to sit within a joist bay. The common snag is the drain landing on a joist — the fix might be shifting the tub slightly, added blocking, or occasionally a structural header, so sort it out with the framer early.
- Slab-on-grade means forming the drain path into the pour on new builds, or cutting and chipping it into the slab on renovations — noisy, dusty work priced accordingly.
- Condo concrete slabs are the hardest case. Coring a suspended slab usually needs engineering sign-off and strata approval; in many buildings the practical answer is a raised platform floor. Budget for that conversation early.
- In-floor heating must stay clear of the drain opening, the filler rough-in, and anywhere the installer will drill anchors.
Connect and test before the tub is set
The trap and rough-in body get installed, connected, and leak-tested while the floor is still open. Once the finished floor is down, the tub is dry-fitted over the riser to confirm alignment, then connected. Some designs let the installer make up the drain from above, through the drain opening inside the tub; others must be connected as the tub is lowered into place. A heavy stone tub lowered onto a live connection is a very different labour job than a top-access acrylic tub — another line item your plumber cannot price without the spec sheet.
Access after the fact
There is no access panel with a freestanding tub, so think about serviceability before the floor closes:
- Kits with top access can usually be tightened or resealed from inside the tub by removing the drain trim — worth asking about when you buy.
- Above an unfinished basement or a dropped ceiling you have natural access from below; over a finished ceiling, a leak means opening drywall.
- Never build or tile the tub in — it should be able to lift off its connection if it ever has to.

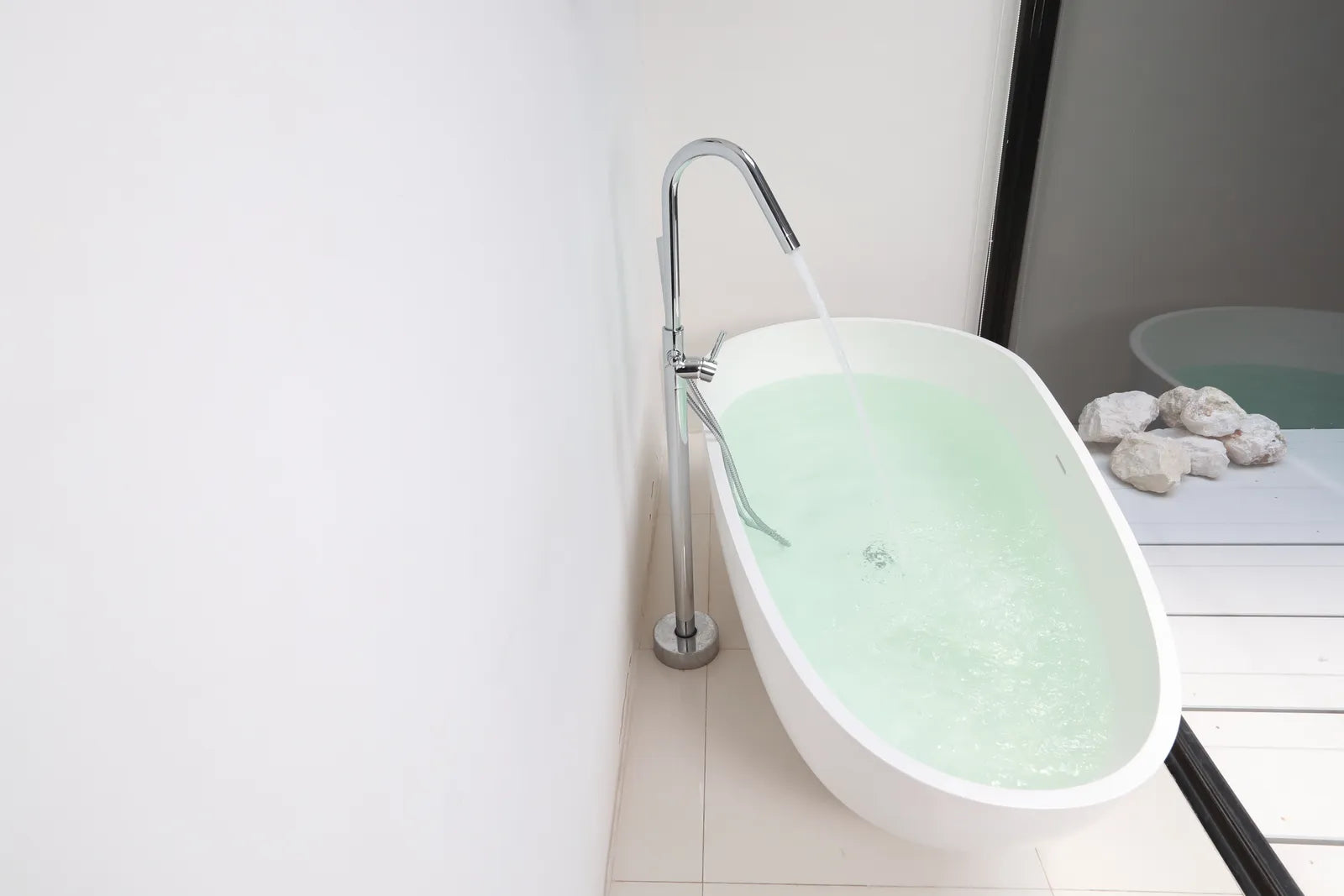

Coordinating the floor-mount filler rough-in
If the tub sits away from every wall, the filler mounts to the floor too, and its rough-in happens at the same stage. A floor-mount filler is a lever arm a metre off the floor, so its mounting hub must anchor to solid structure — blocking between joists, or an approved anchor detail in concrete. Position it close enough that the spout pours well inside the rim, far enough that it does not crowd the tub, and so the handles are reachable from where you sit. Check the filler's spout height against the tub's rim height — deep soakers need taller fillers — and lay out drain and filler together off the same marks. You can compare floor-mount styles from Riobel, Aquabrass, Rubinet and Vogt in our tub fillers collection.
Why plumbers ask for the tub spec before quoting
It is not stalling. The spec sheet tells the plumber the drain location and orientation, whether there is an overflow, how the final connection is made, roughly what the tub weighs, and what the filler has to coordinate with — and each of those swings the labour estimate. A top-access acrylic tub over an open basement is a short day; a stone tub on a condo slab is a project. Sending the rough-in drawing with your quote request gets you a firmer number and a smoother install. The same fixture-first logic is why we tell people to measure the toilet rough-in before buying the toilet, too.
Frequently asked questions
Can I reuse my old built-in tub's drain for a freestanding tub?
Rarely as-is. A built-in tub's trap sits at the wall end of the tub, while a freestanding tub's drain usually lands well away from any wall. Most conversions involve opening the floor and relocating the trap to match the new tub's spec sheet.
Does a freestanding tub need an overflow?
Many freestanding tubs are sold without one, and most Canadian jurisdictions do not require a tub overflow — but interpretations vary, so confirm locally before committing. Some models offer an integral overflow that drains through the tub body itself.
How much depth does the drain need below the floor?
It depends on the kit and trap arrangement, so get the drain kit's own rough-in drawing alongside the tub's. Most kits are designed to fit within a typical wood-framed joist bay, while concrete floors need a formed or cut recess. Give both drawings to your plumber to confirm fit against your floor build-up.
Should the drain and floor-mount filler be roughed in at the same time?
Yes. They are separate rough-ins — the filler never shares the drain's opening — but they depend on the same tub position and the same open floor. Doing both in one visit, off the same marks, is cheaper and keeps the layout aligned.
