Grab bars are one of the few bathroom purchases where the dimensions matter more than the finish. A bar a few inches too long misses the solid backing in your wall, one too short spans nothing useful, and one with the wrong projection crowds a narrow shower. Whether you are updating a condo bathroom in Vancouver, a Prairie bungalow, or a century home in Halifax, the fit questions are the same. Here are the standard size ranges, how those numbers are measured, and what to confirm on a spec sheet before you order.
Standard grab bar sizes in Canada

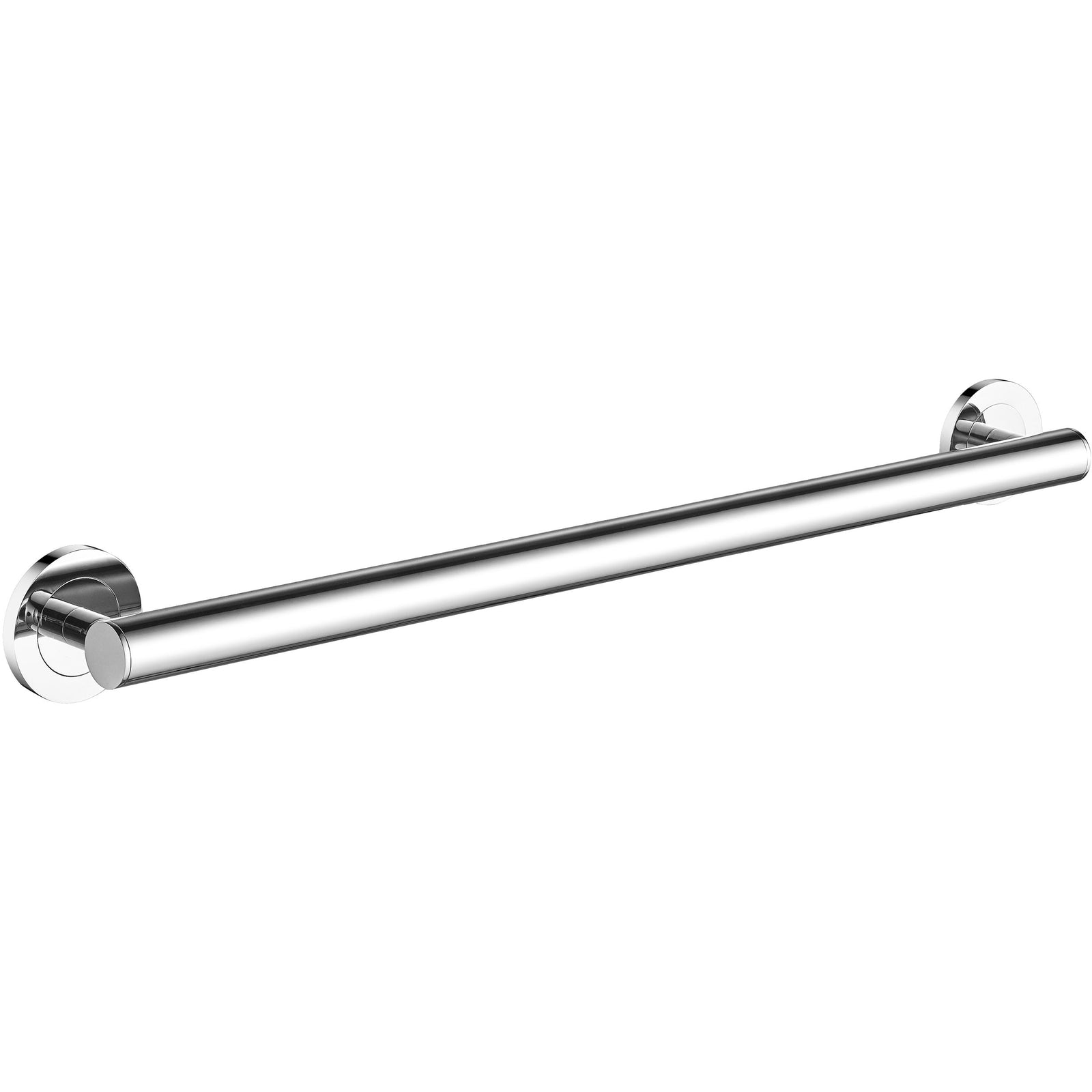

Grab bars sold in Canada follow the same nominal sizing used across North America, and most spec sheets list both imperial and metric. The common lengths are 12, 16, 18, 24, 30, 32, 36, 42 and 48 inches, roughly 300 mm to 1,200 mm. The line-up in our grab bar collection clusters around these standards for a reason: they are sized to land on typical wall framing.
| Nominal length | Typical use |
|---|---|
| 12 to 18 in | Vertical bar at a shower or tub entry, or a short support point beside a toilet |
| 24 in | Horizontal bar on the control wall of a shower |
| 30 to 36 in | Horizontal bar along the long wall of a tub or shower |
| 42 to 48 in | Long runs behind a toilet or spanning a full tub wall |
Diameter is the other core dimension. Most residential grab bars are 1-1/4 or 1-1/2 inches in diameter, about 32 to 38 mm, and both fall within the range accessibility guidance treats as graspable. Thinner bars suit smaller hands and look lighter; 1-1/2 inches is the safer default when several people will use the same bar.
How grab bar dimensions are actually measured
This is where most sizing mistakes start. The nominal length on the box, say 24 inches, is almost always the centre-to-centre distance between the two mounting flanges, not the overall length of the bar, which runs a few inches longer once the flanges and end bends are included. Centre-to-centre matters when you are hitting studs; overall length matters when you are fitting between a valve and a glass panel. Good spec sheets give you both.
Two more figures to look for:
- Wall clearance: the gap between the bar and the finished wall. Accessibility guidance commonly references a clearance of about 1-1/2 inches, enough for a firm grip without so much room that a forearm can slip behind the bar.
- Projection: how far the whole assembly stands off the wall. In a compact shower stall this can meaningfully affect standing room, so check it before choosing a deep-clearance design.
- Flange diameter: concealed-screw flanges are commonly around 3 inches across. That circle needs a flat landing spot, which matters on small-format tile, heavy grout lines or curved surfaces.
Measuring your space before you buy
Ten minutes with a tape measure and a stud finder saves a return shipment. Work in this order:
- Find the solid backing. Grab bars must anchor into studs, plywood backing or blocking, not just drywall or tile. Most Canadian wood framing places studs at 16 inches on centre, but verify, especially in older homes where spacing wanders.
- Measure the flat, unobstructed wall. Note the valve, shower head drop, any niche, and the swing or track of the door. The bar needs clear space along its full length plus knuckle room around it.
- Choose the orientation. Horizontal bars help with steadying and lowering, vertical bars help at entry points, and each orientation changes which studs you can reach.
- Match centre-to-centre to your backing. With studs at 16 inches on centre, a 16-inch bar spans two studs and a 32-inch bar spans three. Other lengths usually mean one flange lands on a stud and the other needs blocking or a manufacturer-approved anchor rated for the job.
If you are mid-renovation, add plywood backing across the whole wet wall before the tile goes on: it costs little and means any bar length works later. Planning bar locations alongside your shower system layout also avoids the classic conflict where the ideal grab bar zone is already occupied by a valve trim.
Clearance and placement, stated generally
Published accessibility guidance commonly places horizontal grab bars roughly 33 to 36 inches above the finished floor, with vertical entry bars starting lower. Treat these as starting points, not final answers. In Canada, the national model codes are adopted with amendments province by province, and barrier-free requirements can differ between provinces, between residential and commercial projects, and between a private renovation and a regulated care setting. If the installation has to satisfy an inspector, confirm heights against your local code before drilling. For a private home, the practical rule is simpler: the bar should sit where the user's hand naturally lands, which is worth testing with the actual user in the actual space.
Common fit mistakes
- Buying by overall length instead of centre-to-centre. The bar arrives, the flanges miss the studs, and the project stalls.
- Using a towel bar as a grab bar. They can look similar, but towel bars are not built or anchored to take body weight. If a bar will ever be grabbed in a slip, buy a real grab bar.
- Ignoring the flange landing. A 3-inch flange centred on a grout intersection or mosaic tile is hard to seal and hard to level.
- Forgetting the door. Sliding shower doors and swing panels can clip a bar mounted too close to the opening.
- Choosing looks over diameter. A sleek thin bar that the main user cannot grip confidently has failed at its one job.
- Assuming any anchor will do. Hollow-wall installations are only as safe as the anchor system the manufacturer rates for that bar. When in doubt, add blocking.
Reading the spec sheet like a pro
Manufacturers such as Kohler and American Standard publish detailed dimensional drawings for their grab bars. Whatever the brand, confirm this short list before ordering:
- Centre-to-centre length and overall length, in both inches and millimetres
- Bar diameter and wall clearance
- Flange type, concealed or exposed screw, and flange diameter
- Weight rating, and the condition attached to it, which is almost always proper installation into solid backing
- Material and finish, with 304 stainless steel being the common baseline for wet areas
- Any accessibility standard the bar is stated to meet, verified on the spec sheet itself rather than the marketing copy
Everything in our grab bar range ships Canada-wide, and if you are weighing a broader safety upgrade, our bathroom planning guides cover the neighbouring decisions in the same plain terms.
Frequently asked questions
What is the most common grab bar size?
For showers, a 24-inch horizontal bar on the control wall and a 12 to 18 inch vertical bar at the entry are the most common picks, while tub walls usually take a 30 to 36 inch bar. The right answer depends on your stud locations and the user's reach, so measure first.
Is grab bar length measured end to end or centre-to-centre?
The nominal size is almost always centre-to-centre between the mounting flanges. Overall length runs a few inches longer. Use centre-to-centre to plan your anchoring and overall length to confirm the bar physically fits the wall section.
What diameter grab bar should I choose?
Choose between 1-1/4 and 1-1/2 inches, which is the range accessibility guidance treats as graspable. Go toward 1-1/4 inches for smaller hands and a lighter look, and 1-1/2 inches when multiple users or maximum grip security is the priority.
Can I install a grab bar where there is no stud?
Only with blocking added behind the wall, or with the specific hollow-wall anchoring system the manufacturer rates for that bar and wall type. Generic plastic anchors are never acceptable for a device meant to catch a falling adult.
