Grab bars are one of the few bathroom upgrades that can genuinely prevent a serious injury, yet many of the bars installed in Canadian homes sit in the wrong spot, at the wrong height, or bite into nothing more than drywall. The bar itself is rarely the weak point. Placement is. Get the height, location and anchoring right, and a grab bar becomes something you can trust with your full weight at the worst possible moment.
Canadians think hard about slips every icy January, from Vancouver to Halifax, but the bathroom is a year-round hazard in every province. One caveat up front: the National Building Code and provincial codes set the legal requirements for barrier-free washrooms, and the specifics vary by province and project type. Treat the numbers below as widely used residential guidance, and confirm anything code-related with your local building department.
How a grab bar actually holds you up
When someone slips, the load does not arrive gently. A falling adult puts a sudden, jerking force on a bar that can far exceed their standing body weight. That force travels from the hand through the bar, the mounting flange and the screws, into whatever those screws are biting into. The assembly is only as strong as its weakest link, and in most failed installations the weak link is the wall, not the bar.

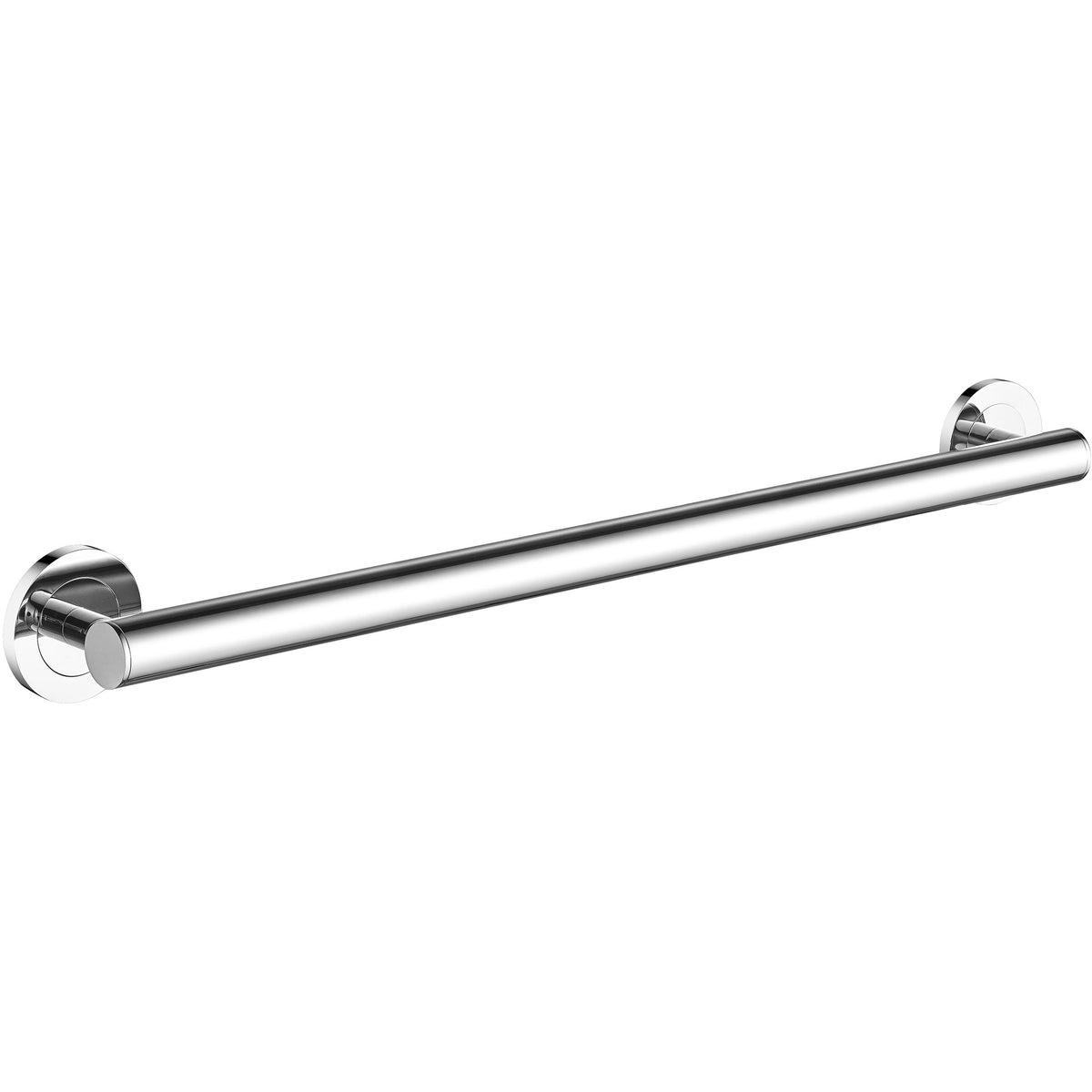

Proper grab bars are engineered for this. Look for bars tested to recognized North American standards and rated for a substantial concentrated load when correctly anchored. Two dimensions matter for grip. First, a diameter of roughly 32 to 38 mm (about 1 1/4 to 1 1/2 inches), so an average hand can wrap fully around it. Second, about 35 to 38 mm of clearance from the wall, enough space to grab quickly but not so much that a forearm can slip behind the bar and get trapped during a fall.
Height and placement, zone by zone
Accessibility guidance across North America clusters around similar numbers. These are the ranges most commonly referenced for residential work, measured from the finished floor to the centreline of the bar.
| Location | Common placement | Typical height guidance |
|---|---|---|
| Beside the toilet | Horizontal bar on the nearest side wall | Roughly 750 to 870 mm (about 30 to 34 in) |
| Behind the toilet | Horizontal bar on the rear wall | A similar range, useful where there is no side wall |
| Inside the shower | Horizontal bar on the back or control wall | Roughly 810 to 920 mm (about 32 to 36 in) |
| Shower or tub entry | Vertical bar where you step in | Lower end near waist height so it is reachable mid-step |
| Along the bathtub | Two horizontal bars on the long wall | One low bar a short distance above the tub rim for pushing up from a soak, one higher bar for standing support |
Those ranges are starting points, not commandments. A tall user, a seated transfer from a wheelchair, or a bather who always sits changes the geometry, which is why the testing step below matters more than any chart.
A practical placement plan
- Watch the actual movements. Have the person who will use the bars walk through their routine: stepping over the tub rim, lowering onto the toilet, turning under the spray. Where a hand instinctively reaches for the wall is where a bar belongs.
- Mock it up with painter's tape. Tape the proposed positions on the wall and test them for a few days. Moving tape is far cheaper than patching tile.
- Find the structure. Locate studs, or plan solid wood blocking between them if the wall is open during a renovation. Blocking a whole wall section during a remodel costs little and gives you total freedom later.
- Choose the right bar. Match the length to the movement (longer bars span more studs and more of the motion), and pick a textured or matte grip surface for wet zones.
- Install, then load test. Seal any penetrations through a wet-area wall, and pull hard on the finished bar with your full weight before anyone depends on it.
Common mistakes to avoid
- Treating a towel bar as a grab bar. Standard towel bars are decorative and will tear out under a fall. If a bar might ever be grabbed, it must be a rated grab bar.
- Anchoring into drywall alone. Plastic plugs and light-duty anchors are not designed for sudden human loads.
- Mounting by eye at standing height. Bars placed to look right to a standing installer often end up too high for anyone pushing up from a toilet or tub.
- Random diagonal bars. Hands can slide down an angled bar during a fall, so angle one only when it deliberately follows a specific movement.
- Protecting the inside of the shower but not the entry. Balance is most at risk while stepping over a threshold or tub rim, so the vertical entry bar is often the most valuable one in the room.
- Ignoring waterproofing. Every screw through a shower wall pierces the moisture barrier, and unsealed penetrations invite rot that weakens the structure the bar depends on.
When to call a professional
Bring in a contractor when the wall is tiled over a waterproofing membrane, when there is no accessible framing where the bar needs to go, or when the wall is a fibreglass or acrylic surround that needs specialized backing. An occupational therapist is worth consulting for anyone with a progressive mobility condition, since they can specify placements for how needs will evolve, not just how they are today. And if the bathroom must legally meet barrier-free requirements, in a rental suite or commercial setting for example, your local building authority is the only source that counts. Some provinces and territories offer home adaptation assistance for accessibility renovations; your provincial housing office can confirm what applies where you live.
Product categories that support the same goal
A grab bar rarely works alone. Browse our grab bars in a range of lengths and finishes to match the plan taped on your wall, and pair them with coordinating towel bars and bath hardware so the safety upgrades disappear into the design. If you are renovating anyway, a low-threshold shower base removes the riskiest step in the room, and a taller-bowl model from our toilet collection shortens how far anyone must lower and rise. Everything ships across Canada, and you can dig deeper into planning an accessible or future-proof bathroom in our library of buying and renovation guides.
Frequently asked questions
What is the standard grab bar height beside a toilet?
Most North American accessibility guidance places a horizontal side-wall bar roughly 750 to 870 mm (about 30 to 34 inches) above the finished floor. In a private home, adjust to suit the actual user, and confirm with your local building department if the project must meet barrier-free code.
Can I use a towel bar as a grab bar?
No. Towel bars are not built or anchored to hold a falling person and will pull out of the wall. The reverse works fine though: a properly installed grab bar makes an excellent towel bar in bathrooms where a clinical look is unwelcome.
Do grab bars have to be screwed into studs?
Studs or solid wood blocking are the gold standard. Where framing is genuinely unreachable, engineered heavy-duty anchors made specifically for grab bars can work in certain wall types, but only when installed exactly to the manufacturer's instructions and load rating. Ordinary plastic drywall plugs are never acceptable.
What diameter and finish should I choose?
A diameter around 32 to 38 mm suits most hands, and a knurled, peened or matte surface grips far better than polished chrome when wet. Modern grab bars come in brushed nickel, matte black and other popular bath finishes, so there is no need to settle for an institutional look.
