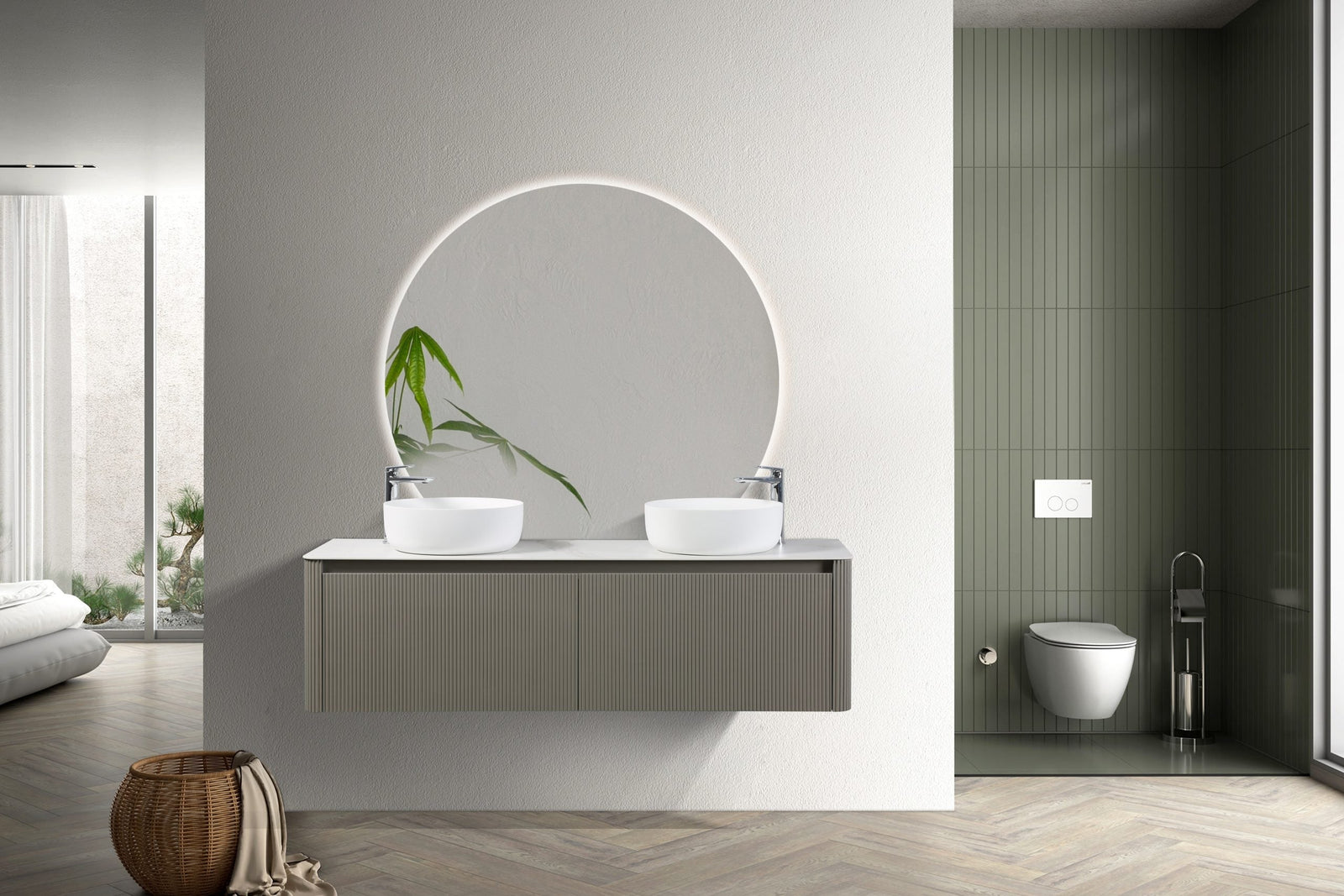

Floating vanities, also called wall-hung or wall-mount vanities, have become one of the most requested bathroom upgrades in Canada, from condo refreshes in Vancouver to century-home renovations in Halifax. The appeal is obvious: clean lines, an open floor that makes a small bathroom feel bigger, and easier cleaning underneath. The catch is structural. A floor-standing cabinet carries its own weight through its legs. A floating vanity carries nothing itself: every kilogram of cabinet, stone countertop, sink, stored items, and the person leaning on the edge each morning is transferred into the wall. Blocking is what makes that possible, and it is the one part of the project you cannot skip or improvise.
How floating vanity blocking actually works
Blocking is solid lumber installed horizontally between the wall studs, fastened so its face sits flush with the framing. When the drywall goes back on, the vanity's mounting rail or brackets screw through the finished wall into continuous wood rather than into hollow drywall or a single lucky stud.
The physics matter here. A floating vanity is a cantilever: the load hangs out in front of the wall, which means the top fasteners are not just holding weight straight down, they are being pulled outward in tension while the bottom of the cabinet presses back against the wall. Drywall anchors handle neither force well over time. Studs alone are often in the wrong place, since a typical vanity rarely lines up neatly with framing spaced at 16 inch centres. Blocking gives you a continuous band of structural wood exactly where the manufacturer's hardware needs it, at any point along the wall.
Most quality wall-hung vanities ship with a metal hanging rail, cleats, or bracket pairs, and the installation sheet specifies where the fasteners land. That sheet is your blocking map. Read it before anyone picks up a saw.
The fix path, in honest steps
- Confirm the vanity and its mounting height first. Choose the actual unit before framing, because bracket locations vary by brand and model. Decide your finished rim height, then work backward through countertop thickness and finished floor build-up, including tile and underlay, to find where the blocking band must sit behind the wall.
- Open the wall, or plan around a closed one. In a full renovation the wall is already open, and adding blocking takes an hour. In a retrofit you either cut and patch a horizontal band of drywall, which is routine work for a taper, or you accept a surface-mounted solution such as a painted plywood cleat, which changes the look.
- Install generous blocking. Common practice is two-by lumber, often 2x8 or 2x10, set flat between studs and fastened with structural screws into the stud faces, not just toe-nailed. A wider band than strictly necessary is cheap insurance, and it gives you flexibility if the vanity position shifts a few centimetres during finishing.
- Coordinate the plumbing rough-in at the same time. Floating vanities usually hide the drain and supplies inside the wall for that clean open look. The drain height, P-trap location, and shut-off valves all have to clear the cabinet's drawer boxes.
- Photograph everything before closing up. Phone photos with a tape measure in frame save real grief when you mount the rail through fresh drywall or tile.
- Close, finish, then mount. Drywall or backer, tile if applicable, then the rail, then the cabinet. Level the rail with care, because a floating vanity broadcasts even a small tilt.
Common mistakes we see
- Trusting anchors. Toggle bolts and drywall anchors are for towel rings, not for a cabinet holding a stone top and a basin full of water. This is the failure mode behind most sagging or fallen vanities.
- Blocking at the wrong height. Forgetting the thickness of tile, underlay, or a new subfloor can leave the blocking band centimetres away from where the rail actually lands.
- Ignoring the drain. A trap that conflicts with the top drawer means either a shallower drawer or replumbing. Check the cabinet's internal clearances against your rough-in.
- Blocking only for the vanity. While the wall is open, add blocking for the mirror or medicine cabinet, wall sconces, towel bars, and any current or future grab bars. Blocking for grab bars in particular is far cheaper now than after the tile is up, and it matters for aging-in-place planning.
- Cutting corners on an exterior wall. In a Canadian winter climate, blocking on an outside wall means working around insulation and the vapour barrier. Compress or tear that layer carelessly and you invite condensation problems inside the wall. Take the time to reseal properly.
When to call a pro
Plenty of confident DIYers handle blocking in a wood-framed wall. Bring in a contractor or plumber when the situation changes:
- Steel studs or concrete. Many condos from Toronto to Calgary have steel-stud partitions or solid concrete demising walls. Steel studs need different blocking details and fasteners, and concrete calls for engineered anchors.
- Plumbing moves. Relocating a drain or supplies generally requires a permit and inspection. Canada's National Plumbing Code is adopted and amended province by province, and Quebec runs its own regime, so always defer to your local authority and a licensed plumber for specifics.
- Uncertain wall condition. Old plaster, previous water damage, or a wall shared with a shower deserves professional eyes before it carries a cantilevered load.
- Condo rules. Many buildings require board approval and licensed trades for any in-wall work. Check before cutting.
Choosing the vanity itself
Once the wall is ready, the fun part starts. Browse our wall-mount vanities for floating designs across a range of widths and finishes, or compare against the broader vanity collection if you are still weighing floating against floor-standing. Pair the cabinet with a CSA or cUPC certified faucet from the bathroom faucet collection, and confirm the sink cut-out or vessel configuration matches your countertop plan before ordering. Everything ships Canada-wide, so the same project plan works whether you are renovating in Regina or St. John's. For more step-by-step renovation help, our bathroom and kitchen guides cover the rest of the project, from rough-in valves to lighting.
Frequently asked questions
How much weight does a floating vanity need to support?
There is no single number, because it depends on the cabinet, the countertop material, and the sink. Manufacturers publish load guidance in their installation instructions, and a sensible plan also accounts for water in the basin, filled drawers, and a person leaning or a child climbing. Proper blocking sized to the manufacturer's hardware layout handles all of this with margin. When in doubt, over-build the blocking.
Can I install a floating vanity without opening the wall?
Sometimes, but with compromises. If the mounting points happen to land on studs, and the manufacturer's hardware allows it, a stud-only installation can work. Otherwise your options are cutting a band of drywall to add blocking, which patches invisibly, or surface-mounting a structural cleat, which remains visible. Relying on anchors alone is the one option to rule out.
What size lumber should I use for blocking?
Most installers use two-by dimensional lumber, commonly 2x8 or 2x10 laid flat between studs, or a band of thick plywood let into the studs. The right answer is whatever gives continuous solid wood behind every fastener location on the vanity's mounting hardware, with room to spare. Follow the installation sheet for your specific unit.
Do I need blocking in a concrete condo wall?
No, concrete is its own anchor base, but you need the correct engineered concrete anchors, accurate drilling, and confidence that you are not hitting embedded conduit or post-tension cables. In post-tensioned buildings, drilling into the wrong slab or wall zone is genuinely dangerous. This is a job for a contractor familiar with your building type, and usually one your condo board will want documented.
