Bathroom accessories look like the easy part of a renovation. Towel bars, robe hooks, paper holders, mirrors: small purchases, small stakes. Then the box arrives and the bar is wider than the wall section beside the shower, or the mirror covers half the light switch. Fit problems are rarely about quality; they are about dimensions nobody checked. This guide covers standard size ranges, measuring, and the clearance habits that keep a bathroom working well anywhere in Canada, from Vancouver to Halifax.
Why dimensions come before finish
Finish is the fun decision, but it is also the reversible one. A brushed nickel bar and a matte black bar hang on the same holes; a 75 cm bar and a 45 cm bar do not. Once anchors are set in tile, moving an accessory means patching, re-drilling and sometimes replacing a tile you cannot match. Start with the wall, not the catalogue page.
Standard size ranges for common accessories
Manufacturers vary, so always confirm the spec sheet for your exact model, but most accessories fall into predictable ranges. Canadian spec sheets often list both metric and imperial, so both appear here.
| Accessory | Common sizes | Typical mounting position |
|---|---|---|

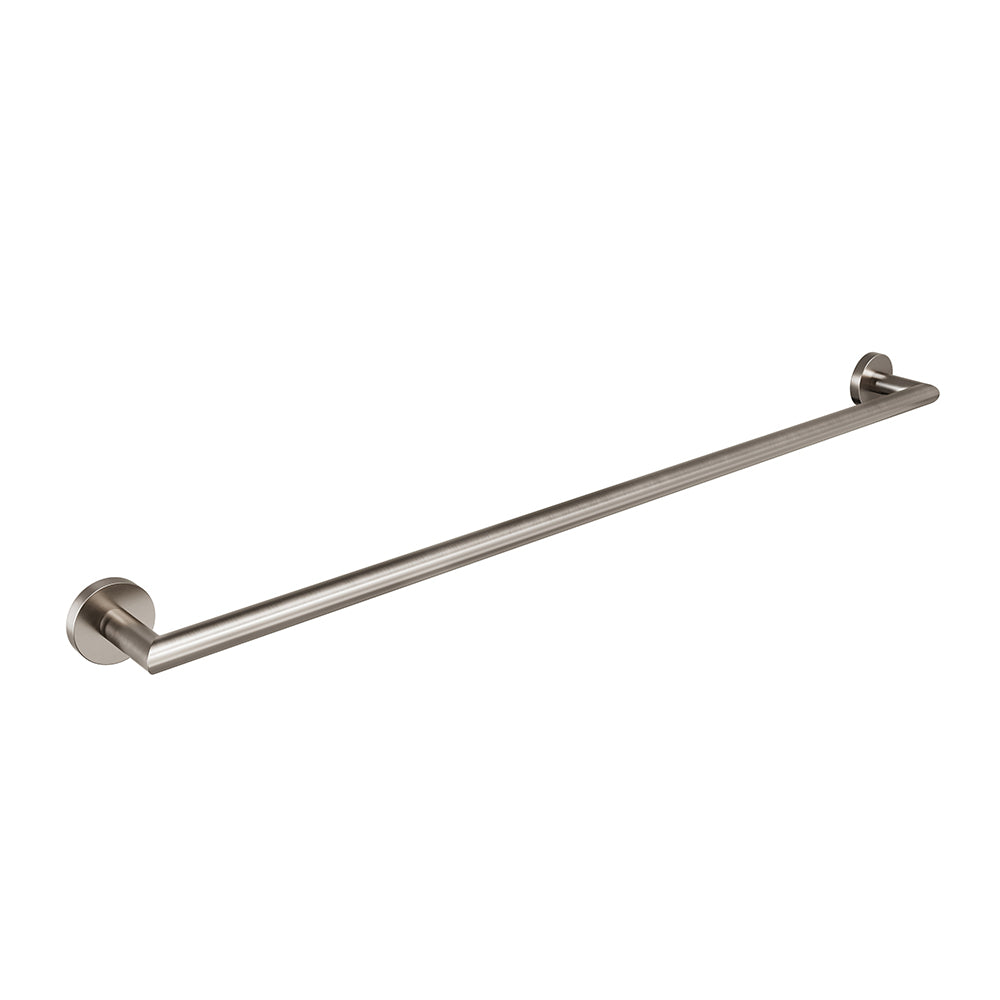

| Towel bar | 45, 60 and 75 cm (18, 24 and 30 in) bar lengths | Roughly 110 to 120 cm (42 to 48 in) off the floor |
| Towel ring | Roughly 15 to 22 cm (6 to 9 in) across | Above counter height, clear of the faucet |
| Robe hook | Projects about 5 to 10 cm (2 to 4 in) from the wall | Around 165 to 180 cm (65 to 70 in) high |
| Toilet paper holder | About 15 to 20 cm (6 to 8 in) wide | Near 66 cm (26 in) high, within easy reach of the seat |
| Grab bar | Lengths from about 30 to 120 cm (12 to 48 in), diameters around 32 to 38 mm | Set by accessibility requirements; confirm locally |
| Vanity mirror | Usually equal to or slightly narrower than the vanity | Bottom edge a few centimetres above the backsplash |
| Medicine cabinet | Commonly about 35 to 90 cm (14 to 36 in) wide | Centred on the sink, at eye level for daily users |
Treat these as starting points, not rules. A household with young kids might drop hooks lower; a tall couple might raise the towel bar. The genuinely non-negotiable numbers, mainly grab bar placement in accessible washrooms, come from provincial and municipal building requirements, not a retailer's chart.
How to measure the space
- Map the wall first. Sketch each wall where accessories will go and mark everything already on it: switches, outlets, tile edges, trim, the shower glass, the door casing.
- Measure between obstacles. The usable span is the distance between the nearest two obstructions, minus breathing room each side; a 60 cm bar does not fit a 62 cm gap comfortably.
- Check what is behind the drywall. Hooks and light bars can rely on quality anchors, but anything weight-bearing wants a stud or solid blocking. Recessing a medicine cabinet into an exterior wall deserves extra caution: in a Canadian winter that wall carries insulation and a vapour barrier, so plan the cut properly.
- Record projection, not just width. Note how far the accessory stands off the wall, then walk the room. Door swings, drawer pulls and shoulders in a tight powder room collide with projection before they collide with width.
- Photograph everything with the tape in frame. A photo with visible measurements settles later arguments a memory cannot.
Clearance rules worth following
- Give towels room to dry. A folded bath towel needs most of a 60 cm bar; two towels want a longer bar or two bars.
- Keep accessories out of every swing path: the bathroom door, the shower door and the vanity drawers.
- Leave a visible margin between hardware and any tile edge or corner; mounted tight to an edge, it reads as a mistake even when it functions.
- Place the paper holder ahead of the bowl, not behind the plane of the seat, and keep it reachable without twisting.
- Never hang a grab bar on hollow-wall anchors; it must tie into structure, and in accessible washrooms local code dictates height and length.
Common fit mistakes
- Confusing bar length with overall width. A "60 cm" towel bar often measures 65 cm or more once the mounting posts are included. The overall dimension is the one that has to fit your wall.
- Ignoring depth on mirrors and cabinets. A surface-mount medicine cabinet can project far enough to clip a sconce or crowd a small room. Check the depth line and the door swing.
- Mixing units mid-project. Canadian renovations live in both worlds: studs at 16 inches, tile in centimetres. Pick one unit for your notes and convert everything once.
- Ordering a matching set piecemeal. If the bar, ring, hook and paper holder must match, size and order them as a family so one substitution does not break the finish or spacing plan.
Reading a spec sheet like an installer
Four numbers do most of the work on any accessory spec sheet: overall length or width, centre-to-centre distance between mounting points, projection from the wall, and, for bars, the tube diameter. Centre-to-centre matters most on replacements, since matching the existing holes means no patching. Manufacturers such as ICO Bath, Kalia and Riobel publish dimensioned drawings for their accessory lines, and mirror and decor brands like Renwil list overall frame dimensions including depth. If a product page lacks a drawing, ask for one rather than scaling a photo.
A note on certifications: marks like cUPC and CSA apply mainly to plumbing fittings and fixtures rather than towel bars and hooks. The National Plumbing Code governs the plumbing side of a renovation, while accessory placement rules, especially for grab bars, come from building requirements that vary province to province. When in doubt, your local inspector or contractor is the authority, whether you are renovating in the Prairies, in Quebec or on either coast.
Sizing up your shortlist
With measurements in hand, matching products to spaces is quick. Browse our towel bars in every common length with overall width in mind, check depth as carefully as width on bathroom mirrors and medicine cabinets, and treat grab bars as the category where structure and local code lead. Everything ships across Canada, and the rest of our buying guides cover sizing for tubs, vanities and showers the same way.
Frequently asked questions
What length of towel bar should I buy?
Start from the wall, not the towel. Measure the clear span between obstructions, subtract a margin on each side, then choose the largest standard length that fits, remembering that overall width including posts runs longer than the named bar length. A 60 cm (24 in) bar is the common default; a 45 cm (18 in) bar suits powder rooms and hand towels.
How high should bathroom accessories be mounted?
Common practice puts towel bars roughly 110 to 120 cm off the floor, hooks around shoulder height, and the paper holder near 66 cm within easy reach of the seat. These are conventions, not code, so adjust for the people who use the room daily. The exception is grab bars in accessible washrooms, where heights are set by local building requirements.
Are grab bar sizes regulated in Canada?
The bars themselves come in standard lengths and diameters, but where accessibility rules apply, placement, height and structural anchoring are specified by building codes that vary by province and municipality. A private home has more freedom, though solid structural mounting is essential everywhere. Confirm requirements with your local authority before drilling.
Why do spec sheets mix inches and centimetres?
Canadian construction runs on both systems: framing and rough-ins are imperial, while many product dimensions arrive metric, especially from European brands. Convert every measurement in your notes to one unit before comparing products.
