Adding an ensuite bathroom is one of the most valuable renovations a Canadian home can get, and one of the easiest to get wrong. Most homeowners sketch a floor plan first and pick fixtures at the end. Plumbers do it the other way around: toilet, shower or tub, and vanity first, because those choices dictate where the drains go and how much wall you need. Here is how to plan fixtures for a new ensuite, with the trade-offs laid out honestly.
Why fixtures come before the floor plan
A new ensuite usually borrows space from a bedroom, a closet or a hallway, so every centimetre matters, and the fixtures set the minimums. A toilet needs clearance on both sides and in front. A shower base has a fixed footprint and a drain that has to line up with the joists below. Sketch first and shop later, and you often find the base you love is a few centimetres too wide, or the toilet rough-in does not match the drain your plumber already cut. In the current CAD pricing environment, a mid-project fixture change can mean re-framing, re-plumbing and re-tiling, which costs far more than the fixture itself.
The decisions that lock in your layout
| Fixture | What it decides | Confirm before framing |
|---|---|---|
| Toilet | Drain location, rough-in distance, side clearances | Rough-in measurement, floor-mount or wall-hung |
| Shower or tub | Largest footprint in the room, drain position, valve wall | Base dimensions, drain location, door swing |
| Vanity | Wall length, plumbing height, mirror and lighting placement | Width, depth, single or double sink |
| Ventilation | Fan location, duct route outdoors | Shortest exterior path |
Toilet: measure the rough-in before anything else
The rough-in is the distance from the finished wall to the centre of the drain. Most floor-mount toilets sold in Canada are built around a standard rough-in, but compact models sometimes call for a shorter one, and a mismatch is the most common ensuite surprise. With a brand-new drain you get to choose, so pick the toilet first and hand your plumber the spec sheet.
- Floor-mount or wall-hung. Wall-hung toilets from lines like Duravit, TOTO and Geberit hide the tank inside the wall, which frees floor space and makes cleaning easier. The trade-off is a thicker wall for the carrier and a more involved install, so decide early.
- Standard or smart. Bidet seats and integrated smart toilets from TOTO and Kohler need a GFCI outlet beside the toilet. Run the outlet during the build even if you are not buying one yet.
Look for CSA or cUPC marks on any toilet you consider. Browse the toilet collection to compare one-piece, two-piece and wall-hung formats side by side.
Shower or tub: the honest trade-off
Most new ensuites end up shower-only, and for good reason: a walk-in shower fits where a tub will not. Still, be clear-eyed about the choice.
- Shower only. Maximum flexibility on footprint, easier accessibility later in life, and a simpler drain. Choose a base from a manufacturer like Maax or Kalia, and confirm the drain position (centre, offset or linear) before rough-in, because it cannot move afterward without opening the floor.
- Tub and shower combo. Better for resale in homes with only one other bathroom, but it commits you to a longer wall and fixed alcove dimensions.
- Freestanding tub plus separate shower. The spa-style layout from brands like Victoria + Albert, Bain Ultra or Cheviot. Beautiful, but it needs the most floor area, a tub filler roughed in at exactly the right spot, and a floor structure checked for the weight of a filled tub.
Whatever you choose, decide the valve type early. A thermostatic shower system holds its temperature when someone flushes elsewhere, while a pressure-balanced valve is the simpler option. Both are widely available with CSA or cUPC marks from Riobel, Kalia, Kohler and Aquabrass. Compare formats in the shower systems collection and match them to the shower bases you have room for.
Vanity, faucet and storage in a tight room
The vanity is the most flexible fixture, so choose it last among the big three. Once the toilet and shower have their space, the remaining wall length tells you what width you can fit.

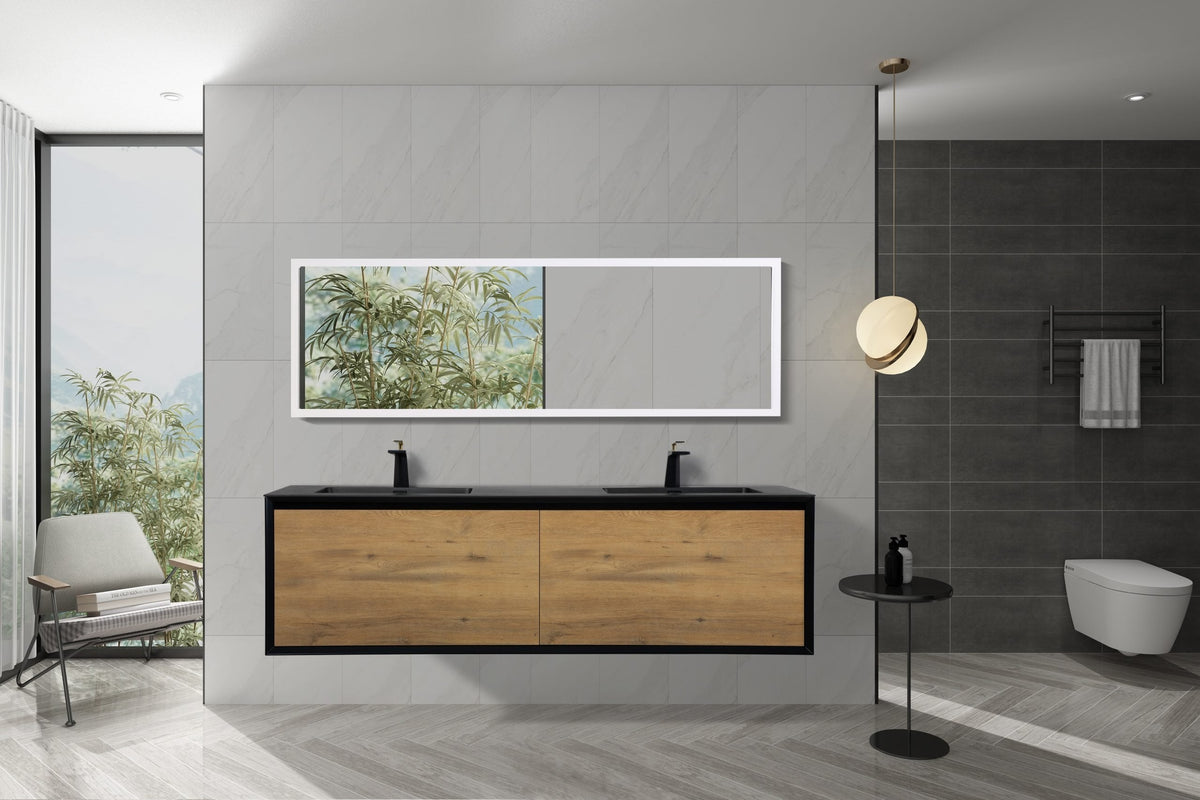

- A wall-mount vanity makes a small ensuite feel larger and leaves the floor easy to clean. Look at the wall-mount vanities if you can add blocking while the studs are exposed.
- Shallow-depth vanities are the usual answer when a standard depth blocks the door swing, and many manufacturers offer them.
- Choose the faucet with the sink, not after. Vessel sinks need tall spouts, and the countertop drilling decides single-hole versus widespread.
Plan the mirror and lighting at the same time. A recessed medicine cabinet, such as those from Sidler, needs a stud bay free of plumbing and wiring, so tell your electrician before drywall. Sconces flanking the mirror light a face better than one overhead fixture, and lines like Kuzco and Alora have compact options for narrow walls.
Canadian realities to plan around
Plumbing in Canada follows the National Plumbing Code as adopted and amended by each province, with municipal additions on top. Venting, clearances and permit rules vary from British Columbia to the Maritimes, so confirm specifics with your local building department or a licensed plumber.
- Exterior walls and freezing. From the Prairies to northern Quebec, supply lines in exterior walls are a risk. Where you can, keep the shower valve and vanity plumbing on interior walls, or have the plumber insulate the cold side.
- Ventilation. An ensuite off a bedroom puts humidity right where you sleep, so a properly ducted fan that vents outdoors, not into the attic, is essential in a cold climate.
- Shipping and lead times. Shower bases, tubs and vanities ship by freight across Canada, which takes longer than a parcel. Order them early so they are on site when the trades need them, whether you are in Vancouver, Winnipeg or Halifax.
A practical order of operations
- Measure the space and note existing drains, vents and joists.
- Choose the toilet and confirm its rough-in and clearances.
- Choose the shower base or tub and confirm drain position and door swing.
- Fit the vanity to the remaining wall and pick the faucet, mirror and lighting together.
- Hand spec sheets to your plumber and electrician before any rough-in.
- Order long-lead items early; accessories can wait until after the tile.
Contractors and designers handling several of these projects can use the trade program. For deeper dives into individual categories, from toilet formats to shower valve types, the buying guides hub covers each one.
Frequently asked questions
How small can an ensuite bathroom be?
Smaller than most people expect, provided you choose compact fixtures. A shower-only ensuite with a wall-hung toilet and a shallow vanity fits where a tub never would. The limit is the clearance your local code requires around the toilet and shower, so confirm that before committing to a layout.
Should I choose a wall-hung toilet for a new ensuite?
If you are building new walls anyway, this is the easiest time to do it. The carrier and in-wall tank need a deeper cavity that is simple to frame now and difficult to retrofit. The payoff is more visible floor, easier cleaning and a seat height you set during installation.
Do I need a permit to add an ensuite in Canada?
Almost always, yes. New plumbing fixtures, drains and electrical circuits are permit work in every province, with details that vary by municipality. Your contractor typically pulls the permit, but confirm it is in place before the walls close up.
What should I buy first?
The toilet and the shower base or tub, because they have fixed dimensions and drain positions your plumber needs before roughing in. The vanity, faucet, mirror and lighting follow once the layout is confirmed, and accessories come last.
