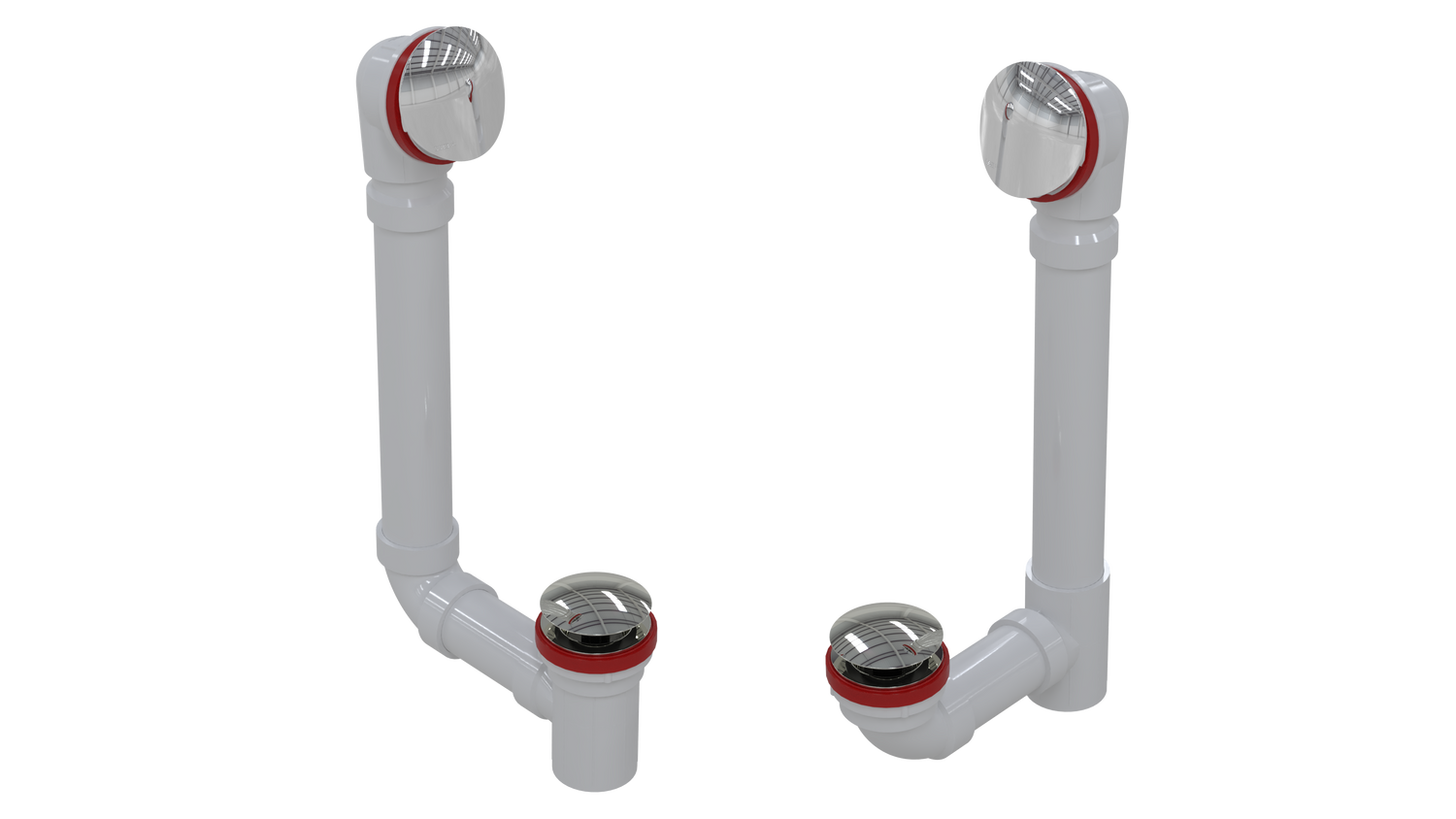

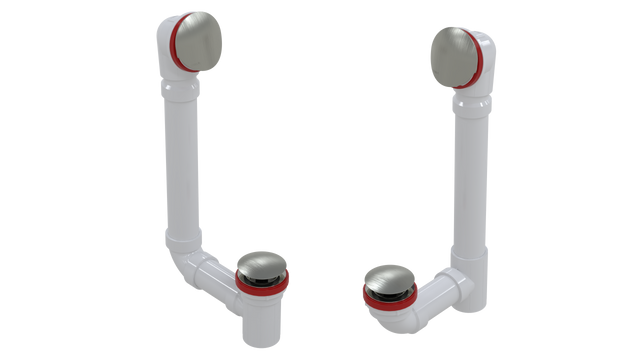

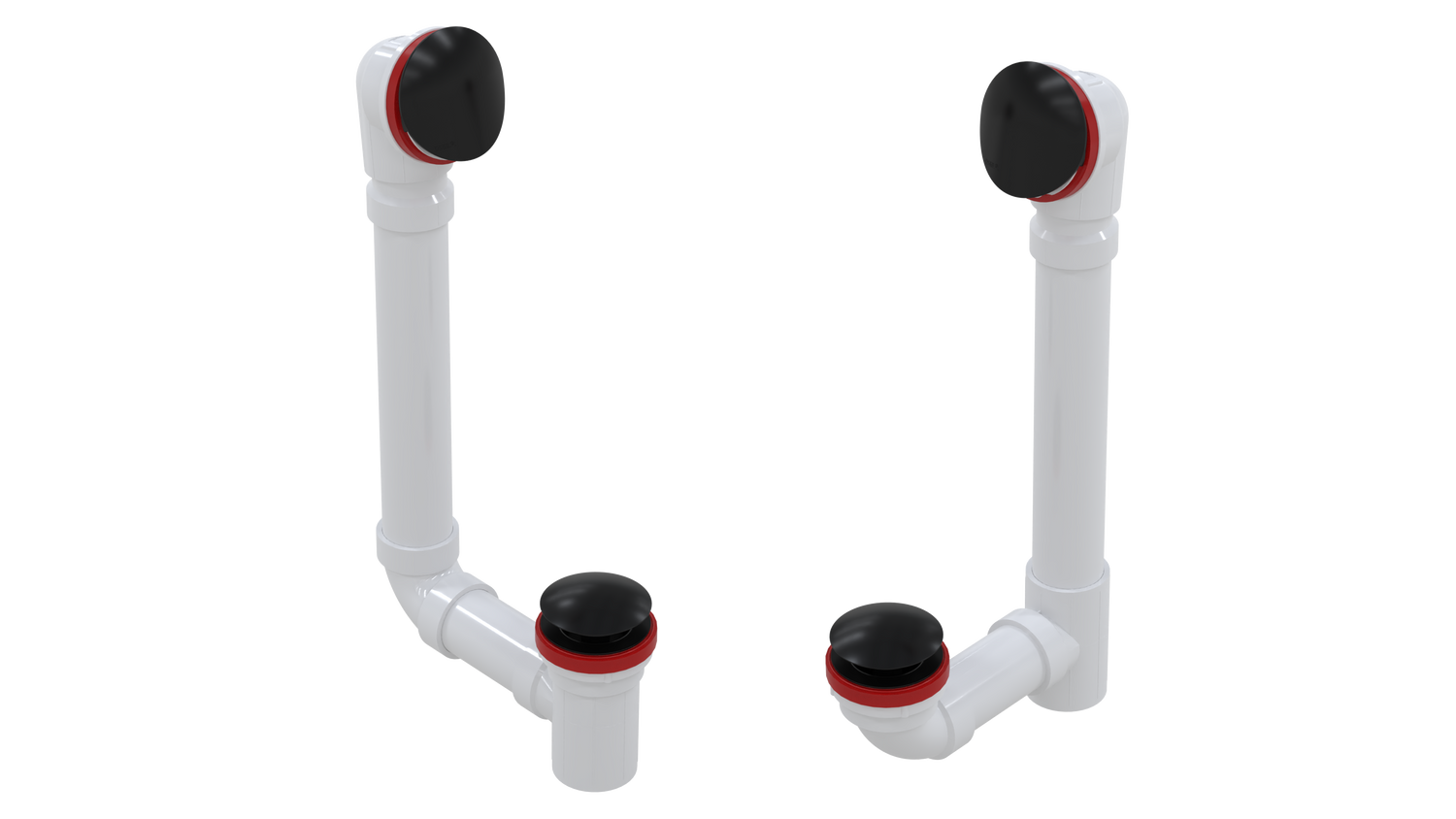

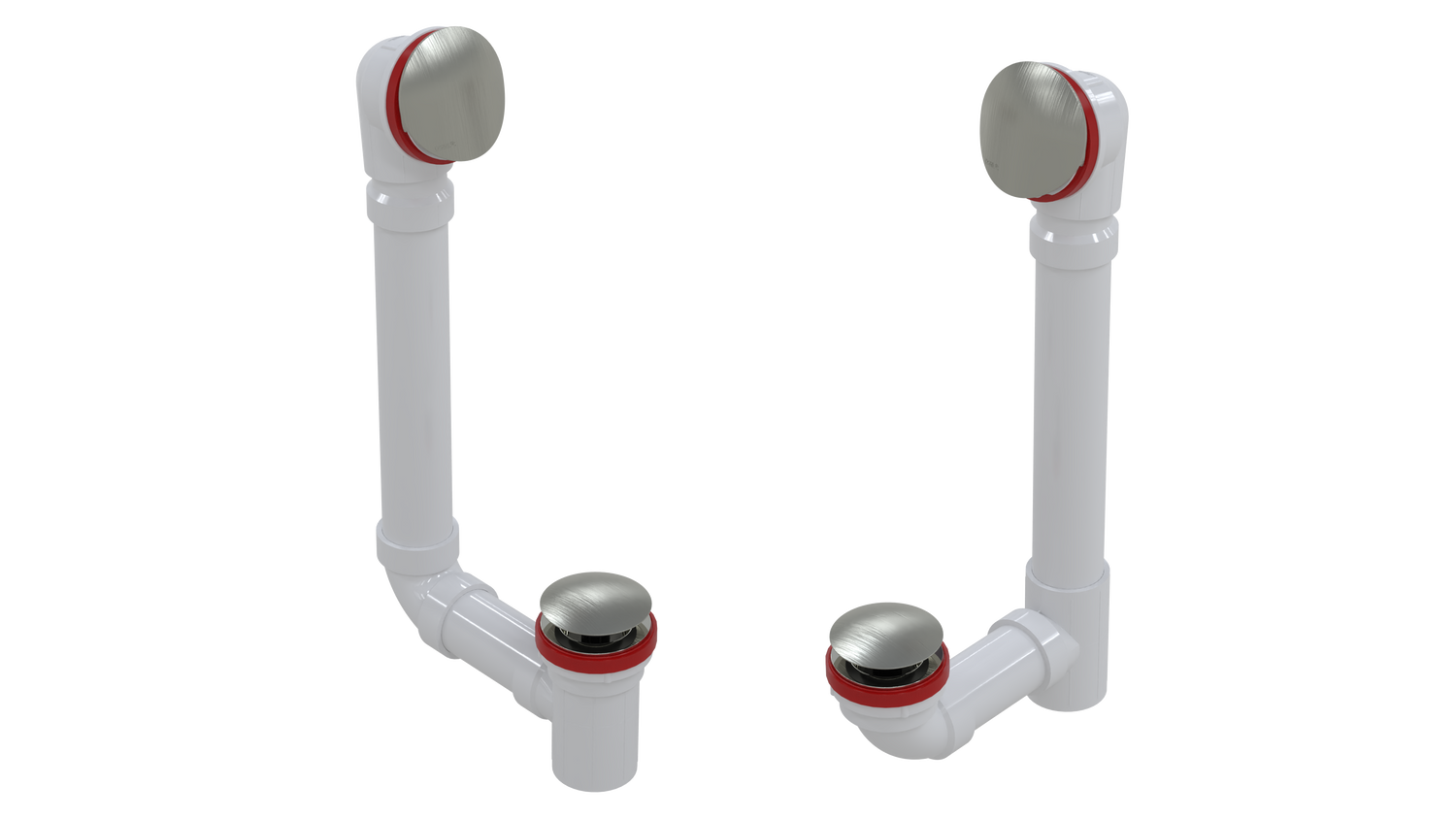

PVC TOTAL 1™ W/O W/ROUND & CLICKER® - 16" (5162Q)

The OS&B Total 1™ Clicker® bath waste and overflow is a 1-1/2" PVC drain with a round faceplate. Total 1™ offers 2 drain configurations, Offset or Direct, in one package, with no leftover parts. Contractors do not need to keep both Offset and Direct Drain bath waste kits in the truck. This 5162Q complete PVC bath drain comes with pipe, fittings and Clicker trim kit, and fits most 16" tubs.

Features

• 1 kit gives 2 drain configurations (Offset and Direct)
• SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Large/coarse thread strainer
• Total 1™ connector
• State of California, LA County and MASS approved

Specifications

• Drain size: 1-1/2"
• Material: PVC
• Faceplate: Round
• Mechanism: Clicker®
• Available finishes: Brushed Nickel, Chrome Plated, Matte Black
• Certification: cCSAus Meets UPC mark: conforms to the requirements of the NPC, UPC, IPC and IRC
• Test devices: WOTEST-K upper and lower test devices ordered separately if required
