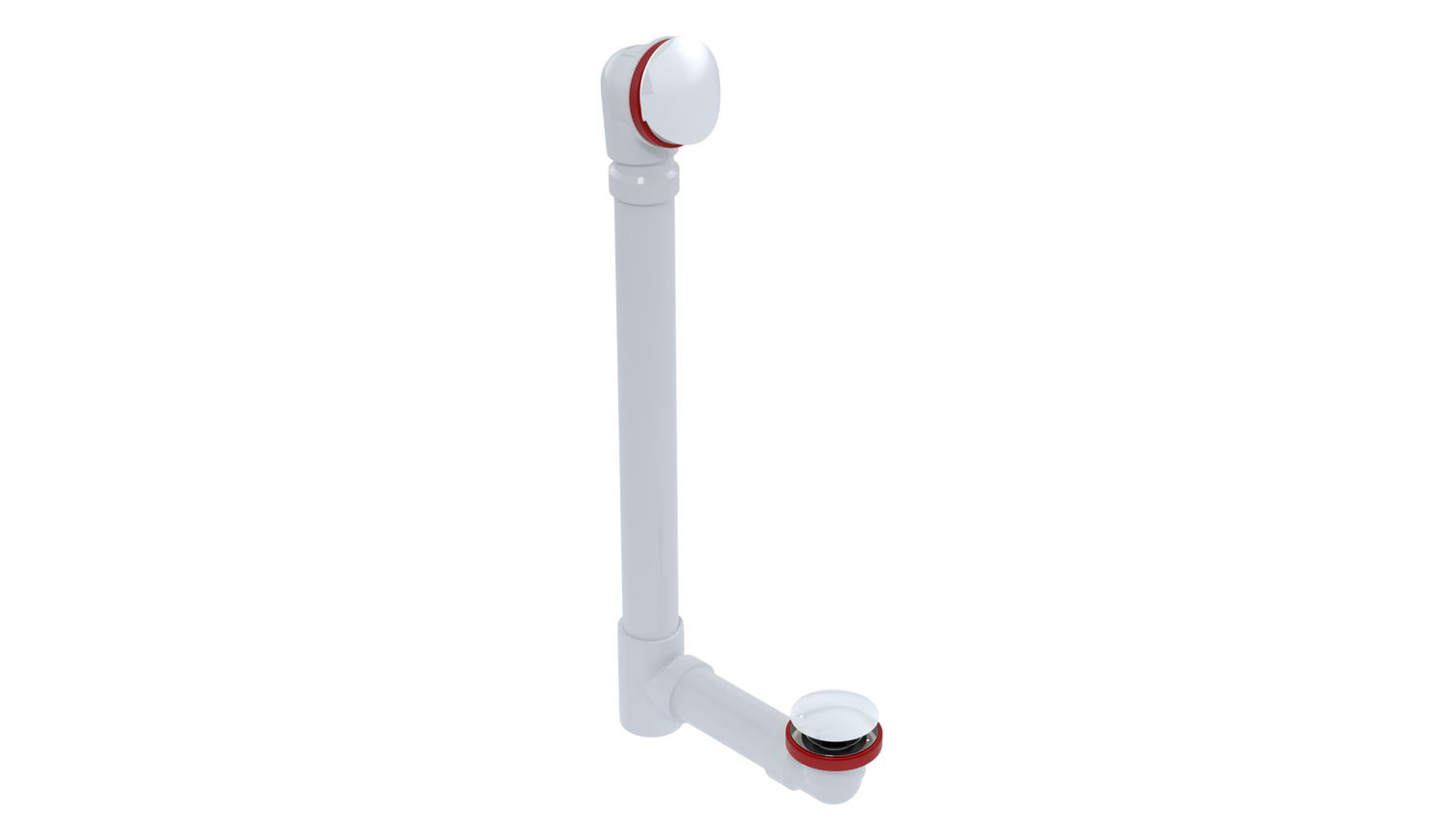

PVC OFFSET WASTE & OVERFLOW CLICKER® EXTENDED (5152Q-20W)

The OS&B 5152Q-20W is a 1-1/2" PVC offset Clicker® waste & overflow in the extended length, with a round faceplate, in White. It features a Round SlideOn™ faceplate, a spin-on tie plate and an angle adapter, with a large strainer and a Brass Top EUROCLICKER® stopper. It is made for 20" bathtubs and uses 1-1/2" PVC pipe.

Features

• Round SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool less installation
• Overflow head featuring an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; use is optional
• Self clinging rubber waste gasket
• Coarse thread strainer
• The "cCSAus Meets UPC & IPC Code" mark means the product conforms to the requirements of the NPC, UPC, IPC, and IRC

Specifications

• Finish: White
• Material: PVC
• Construction: Schedule 40 PVC
• Length: Extended
• Bathtub size: For 20" bathtubs
• Pipe: Uses 1-1/2" PVC pipe
• Certifications: ASME A112.18.2/CSA-B125.2; CCSA US UPC Certification
