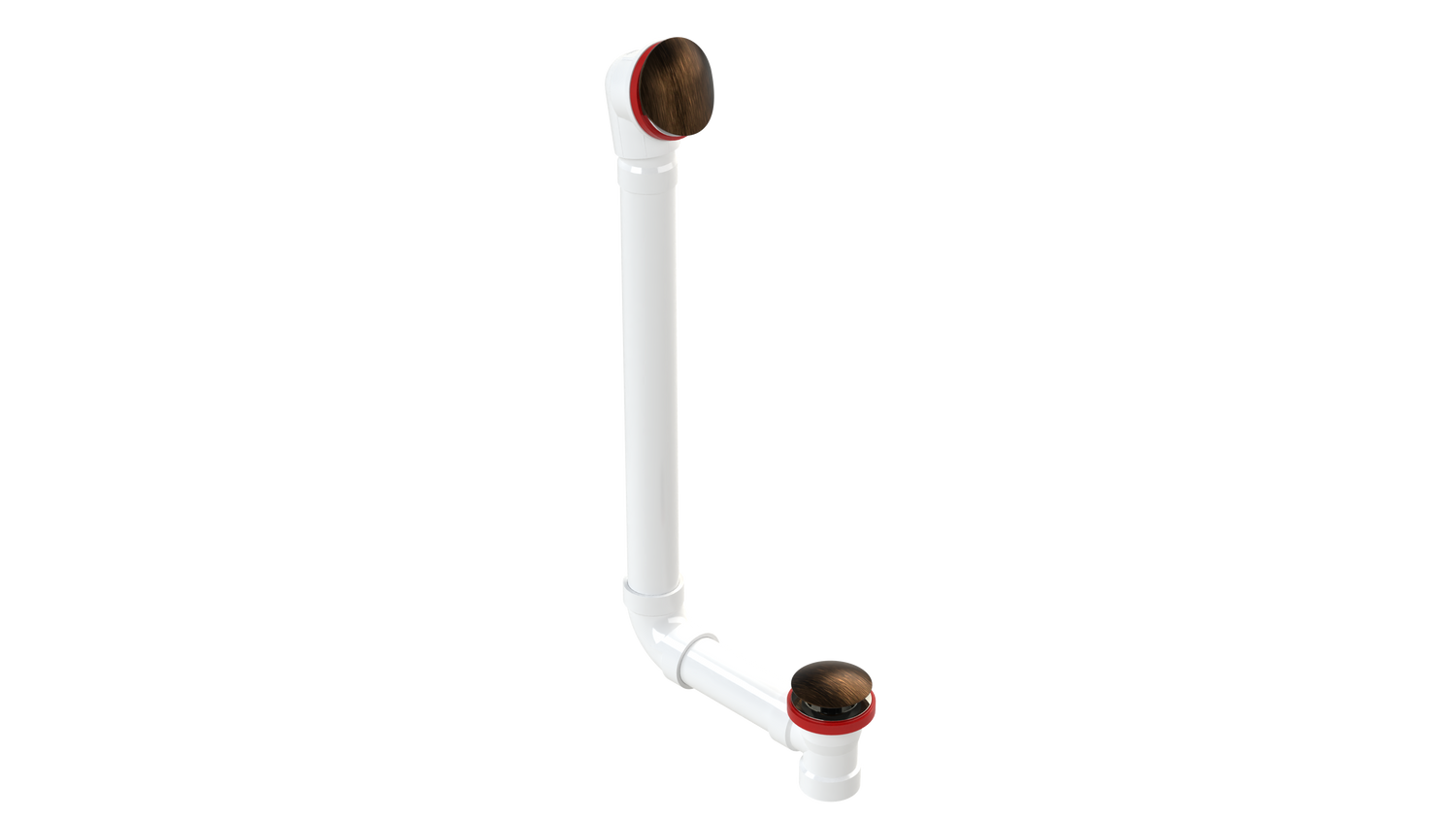

PVC DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (542DQ-20VB)

The OS&B 542DQ-20VB is a 1-1/2" PVC direct Clicker® bath waste and overflow in the extended version. It features a round SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer and brass top EUROCLICKER® stopper. It is a Schedule 40 PVC direct waste and overflow with Clicker®, for 20" bathtubs and using 1-1/2" PVC pipe.

Features

• Round SlideOn™ faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer
• Large strainer with brass top EUROCLICKER® stopper

Specifications

• Material: PVC
• Construction: Schedule 40 PVC
• Pipe: Uses 1-1/2" PVC pipe
• Bathtub: For 20" bathtubs
• Style: Direct
• Length: Extended
• Stopper: Brass top EUROCLICKER®
• Faceplate: Round SlideOn™
• Finish: Venetian Bronze
• Certification: ASME A112.18.2/CSA-B125.2
• Certification mark: CCSA US UPC Certification
