PVC DIRECT DRAIN WASTE & OVERFLOW CLICKER® EXTENDED (541DQ-20POLN)

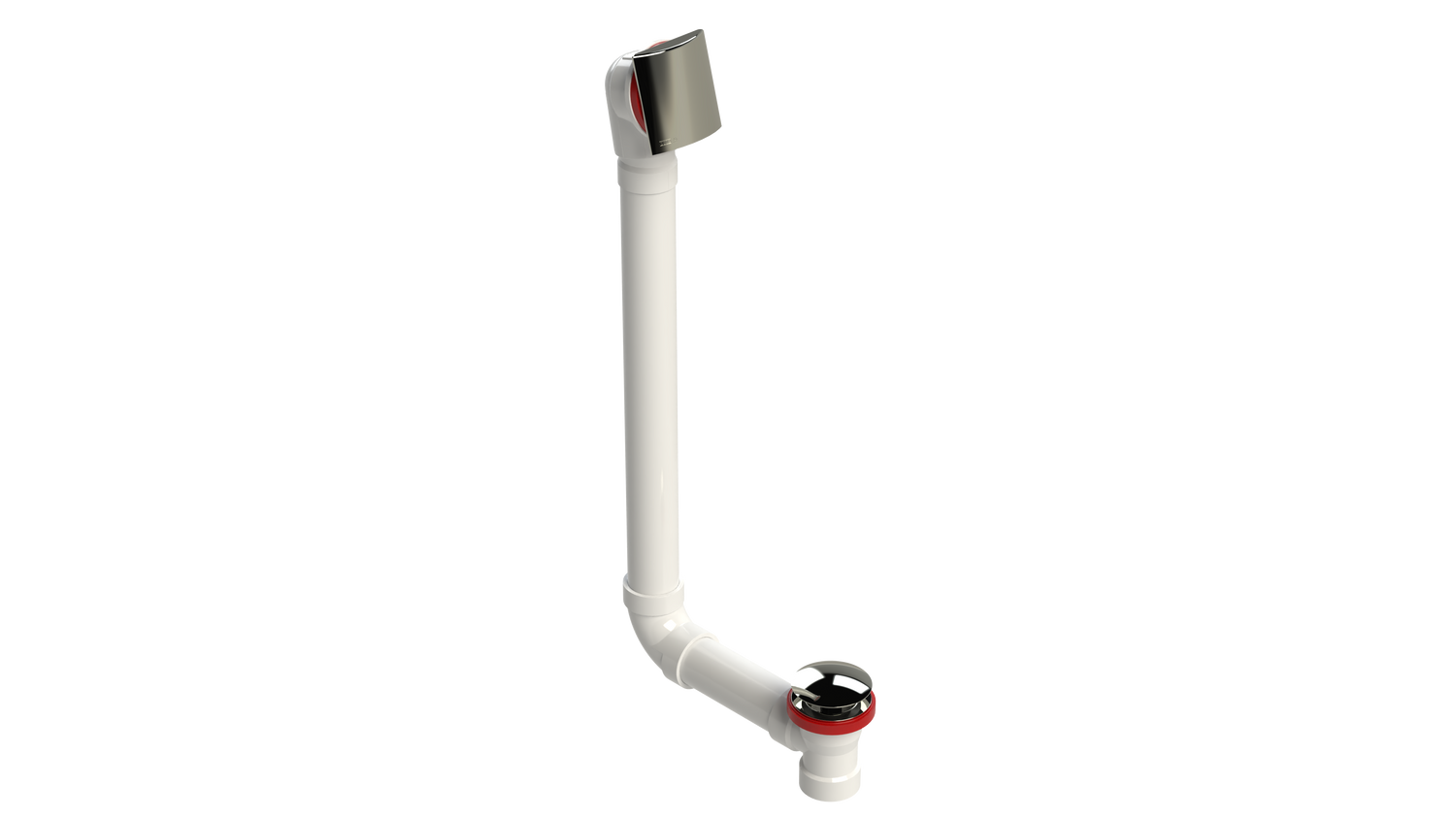

The OS&B 1-1/2" PVC Direct Clicker® extended waste & overflow (541DQ-20POLN) has a square SlideOn™ faceplate in Polished Nickel. It features a spin-on tie plate and angle adapter, and a large strainer with EUROCLICKER® stopper. It is a Schedule 40 PVC drain for 20" bathtubs and uses 1-1/2" PVC pipe.

Features

• Square SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Material: PVC
• Length: Extended
• Pipe size: 1-1/2" PVC pipe
• Bathtub size: For 20" bathtubs
• Faceplate: Square
• Finish: Polished Nickel
• Certification: ASME A112.18.2/CSA-B125.2
• Code compliance: cCSAus mark: conforms to the requirements of the NPC, UPC, IPC and IRC
