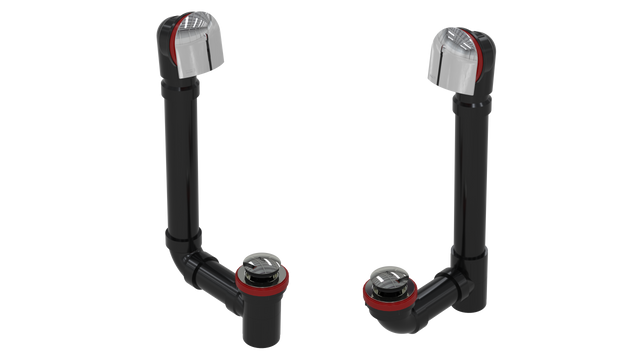

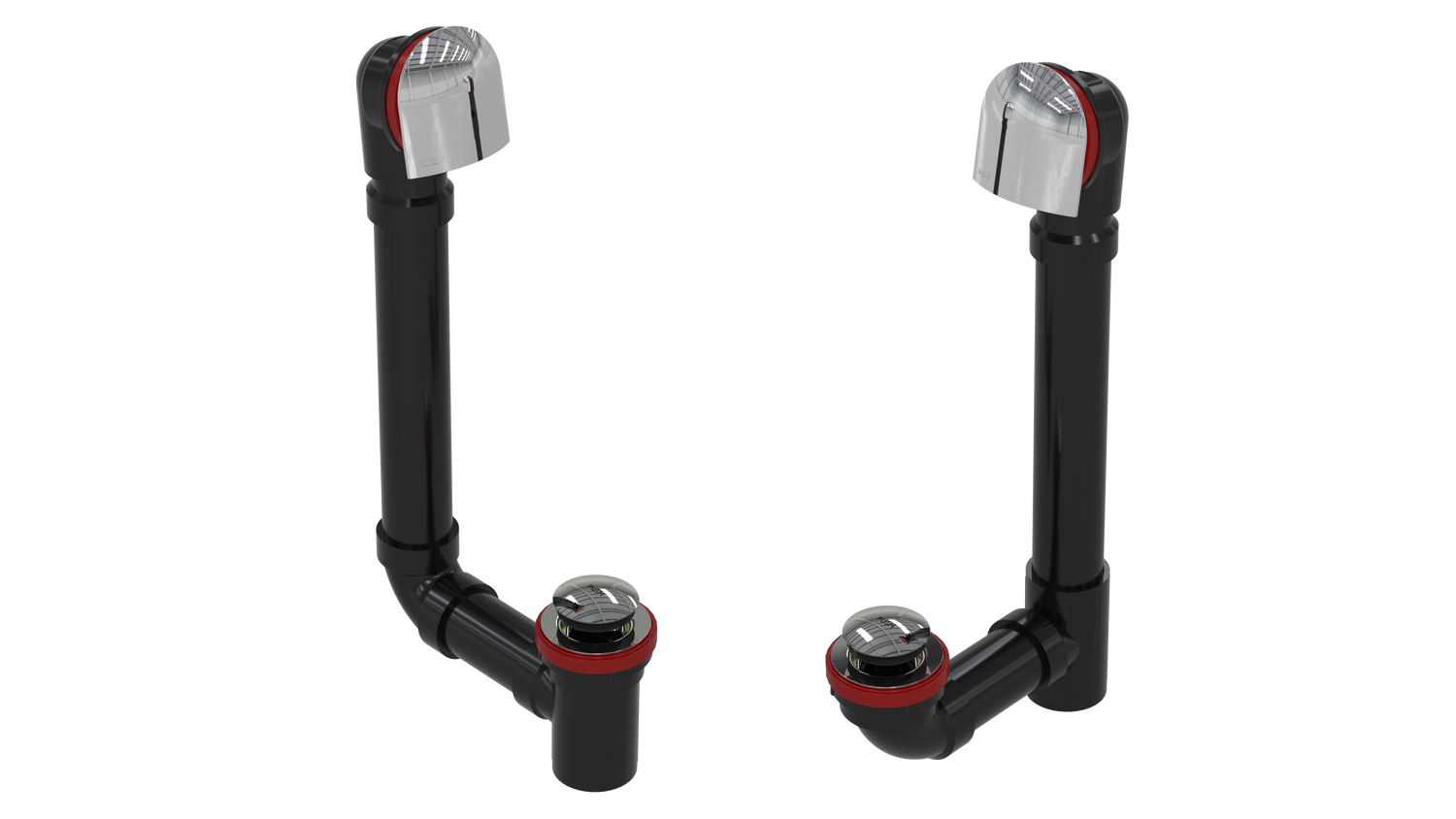

ABS TOTAL 1™ W/O W/BELL & TIP-TOE - 16" (6060TIP-CP)

The OS&B ABS Total 1™ Tip-Toe waste & overflow (6060TIP-CP) is a 1-1/2" ABS bath waste with a Bell faceplate. Total 1™ offers 2 drain configurations (Offset or Direct) in one package, with no leftover parts. Contractors do not need to keep both Offset and Direct Drain bath waste kits in the truck, and wholesalers can reduce inventory costs and shelf space with fewer SKUs.

Features

• 1 kit = 2 drain configurations (Offset and Direct)
• SlideOn faceplate
• Thick foam overflow gasket with adhesive back
• Spin-on tie plate for a tool-less installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Large/coarse thread strainer
• Total 1™ Connector

Specifications

• Model: 6060TIP-CP
• Material: ABS
• Faceplate: Bell
• Drain mechanism: Tip-Toe
• Finish: Chrome Plated
• Certifications: CCSA US UPC Certification
• Installation requirement: Must use certified 1-1/2 ABS DWV pipe
