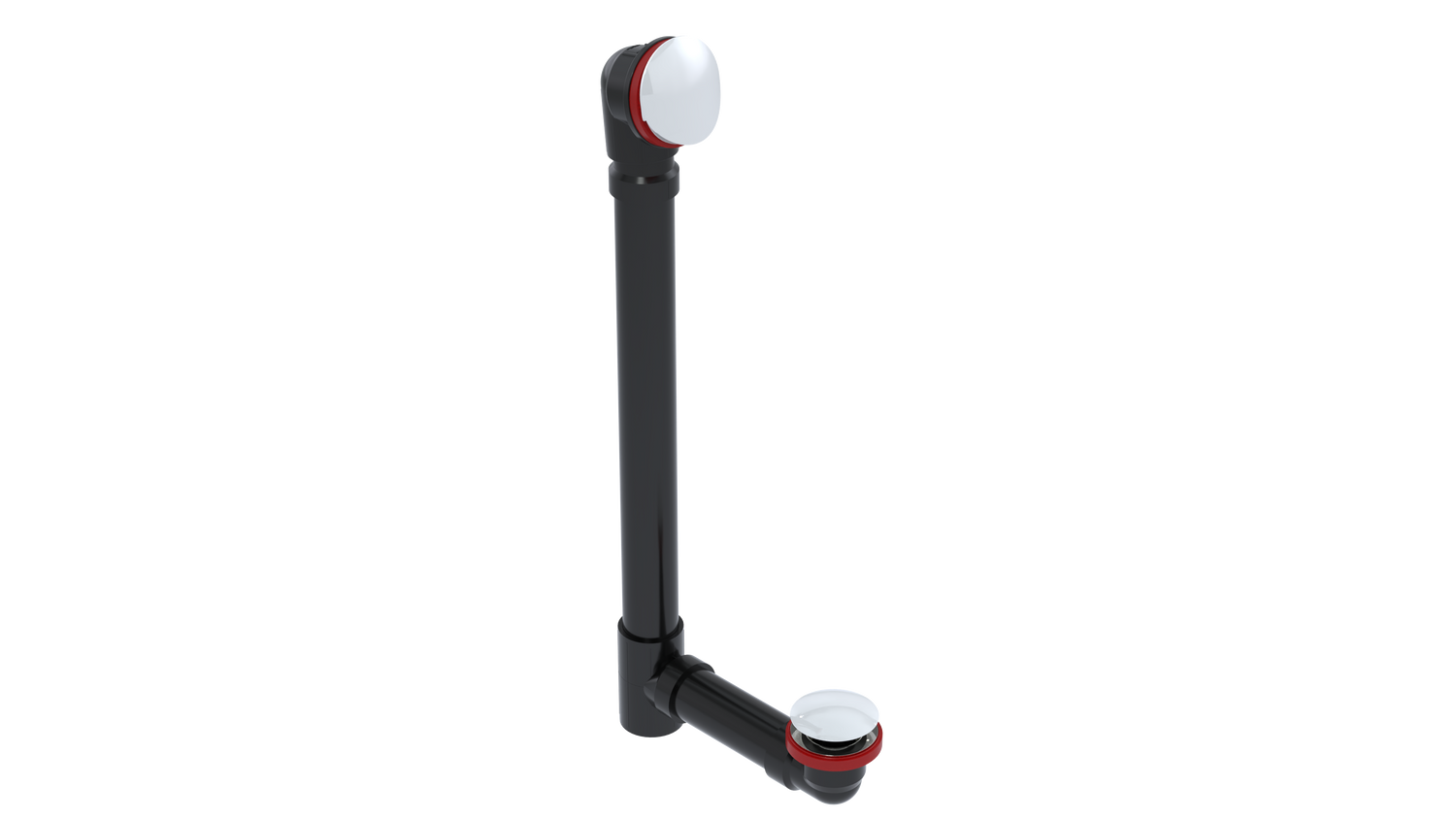

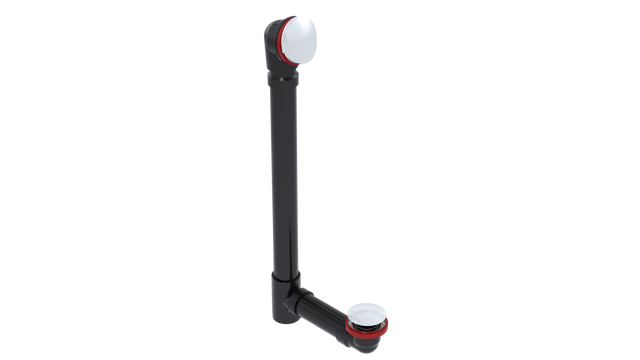

ABS OFFSET WASTE & OVERFLOW CLICKER® EXTENDED (6042Q-20W)

The OS&B 6042Q-20W is a 1-1/2" ABS offset waste and overflow with a Clicker® stopper and a round faceplate, in the extended length. It features a Round SlideOn™ faceplate, spin-on tie plate and angle adapter, with a large strainer and EUROCLICKER® stopper. This Schedule 40 ABS waste and overflow is made for 20" bathtubs and uses 1-1/2" ABS pipe. This listing is finished in White.

Features

• Thick foam overflow gasket with adhesive back.
• Spin-on tie plate for a tool-less installation.
• Overflow head with an integrated 6 degree angle.
• Overflow head with aggressive threads for a quicker and easier installation.
• Angle adapter included; its use is optional.
• Self-clinging rubber waste gasket.
• Coarse thread strainer.
• Carries the cCSAus "Meets UPC & IPC Code" mark, which means the product conforms to the requirements of the NPC, UPC, IPC and IRC.

Specifications

• Material: ABS
• Faceplate: Round SlideOn
• Length: Extended
• Stopper: EUROCLICKER® (Clicker®)
• Application: For 20" bathtubs; uses 1-1/2" ABS pipe
• Finish: White
• Certifications: CCSA US UPC Certification; ASME A112.18.2/CSA-B125.2
