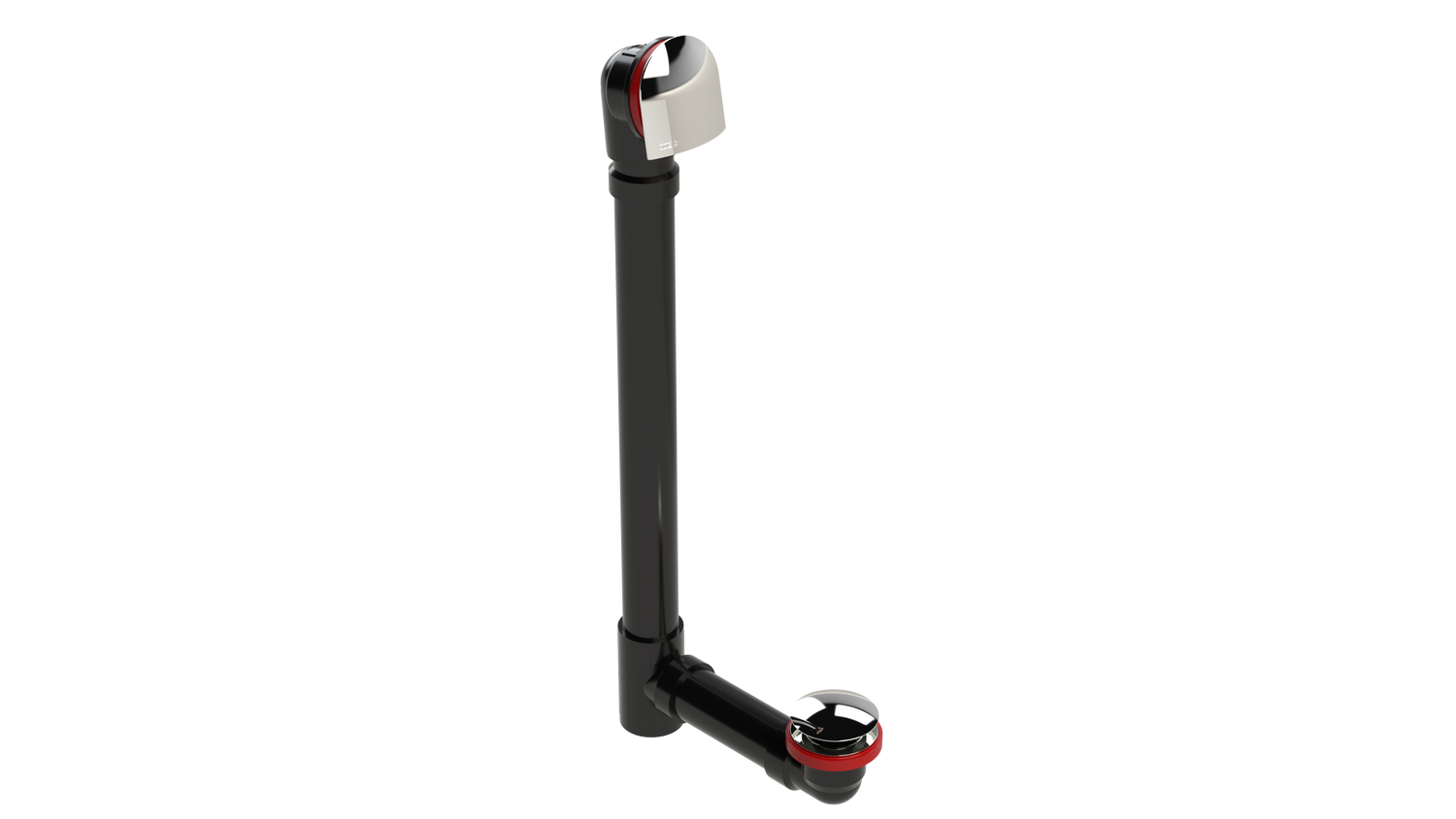

ABS OFFSET WASTE & OVERFLOW CLICKER® EXTENDED (6040Q-20BCP)

The OS&B 6040Q-20BCP is a 1-1/2" ABS offset bath waste and overflow with a Clicker® stopper in an extended length, for 20" bathtubs. It features a Bell SlideOn™ faceplate, a spin-on tie plate and an angle adapter, with a large strainer and Top EUROCLICKER® stopper. Made of Schedule 40 ABS, it uses 1-1/2" ABS pipe.

Features

• Thick foam overflow gasket with an adhesive back.
• Spin-on tie plate for a tool-less installation.
• Overflow head with an integrated 6-degree angle.
• Overflow head with aggressive threads for a quicker and easier installation.
• Angle adapter included; its use is optional.
• Self-clinging rubber waste gasket.
• Coarse thread strainer.

Specifications

• Model: 6040Q-20BCP
• Type: Schedule 40 ABS offset extended waste and overflow with Clicker®
• Material: ABS
• Pipe size: 1-1/2" ABS pipe
• Bathtub: For 20" bathtubs
• Faceplate: Bell SlideOn™
• Finish: Brass Chrome Plated
• Certifications: CCSA US UPC Certification; ASME A112.18.2/CSA-B125.2
