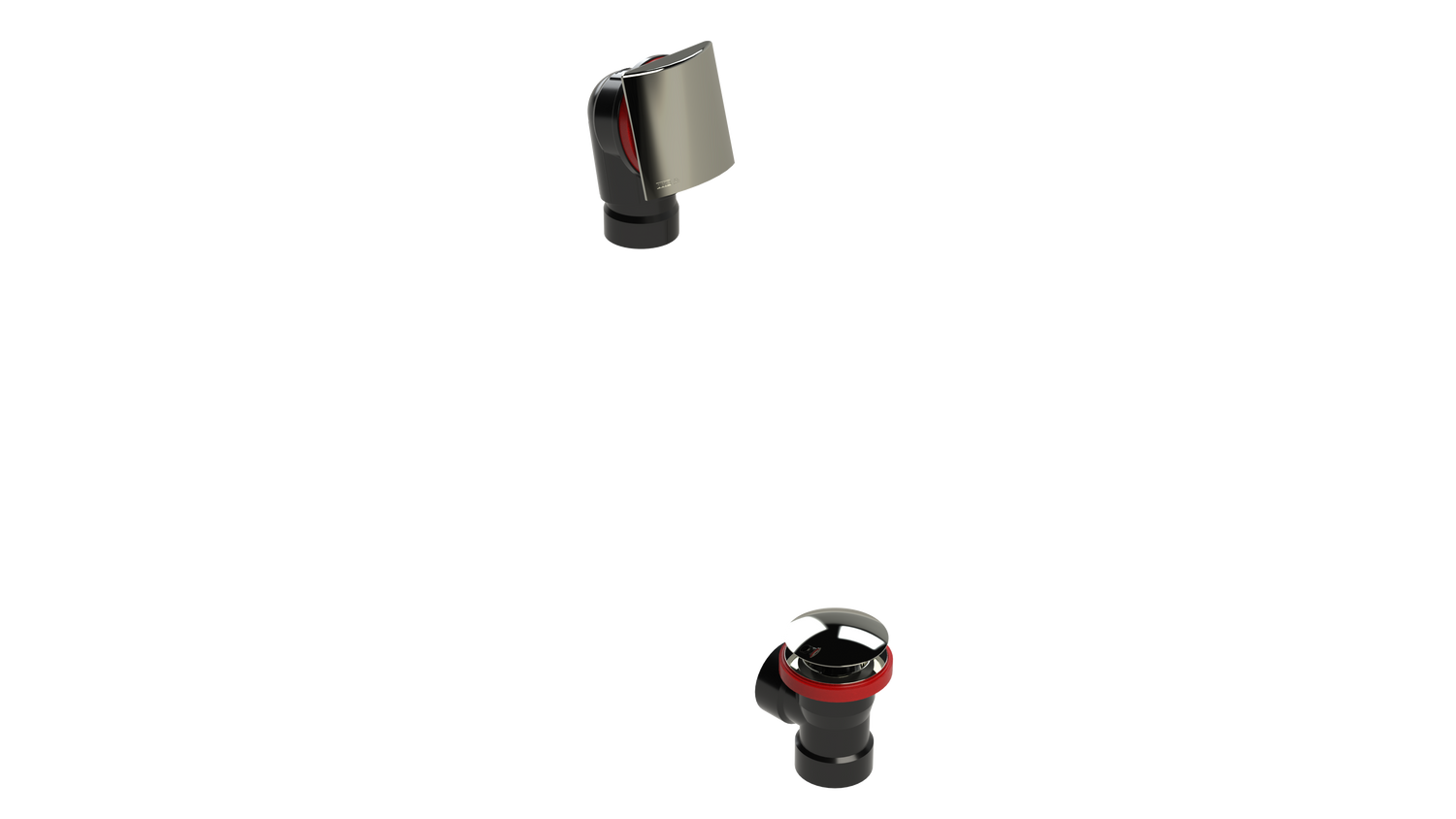

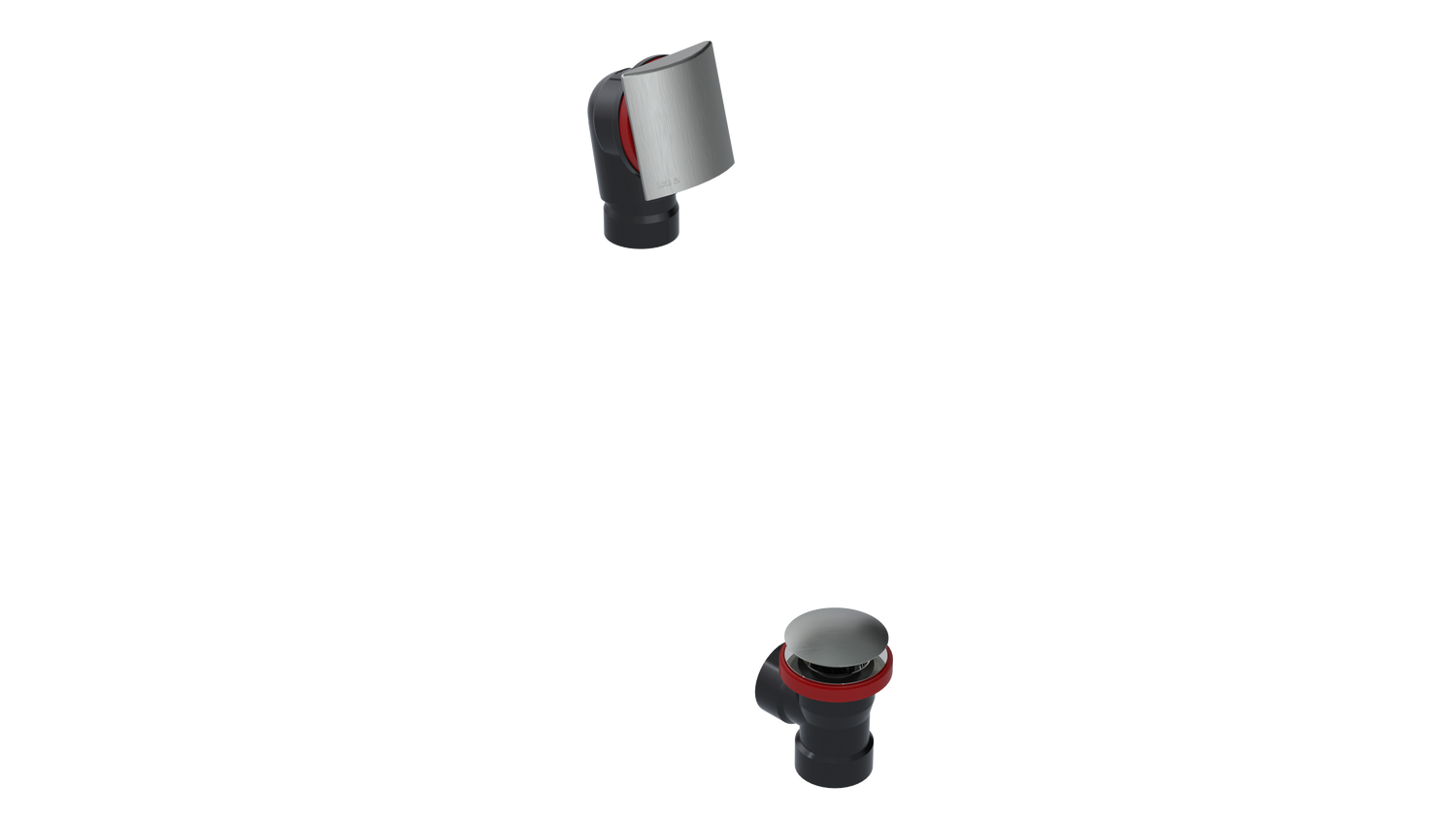

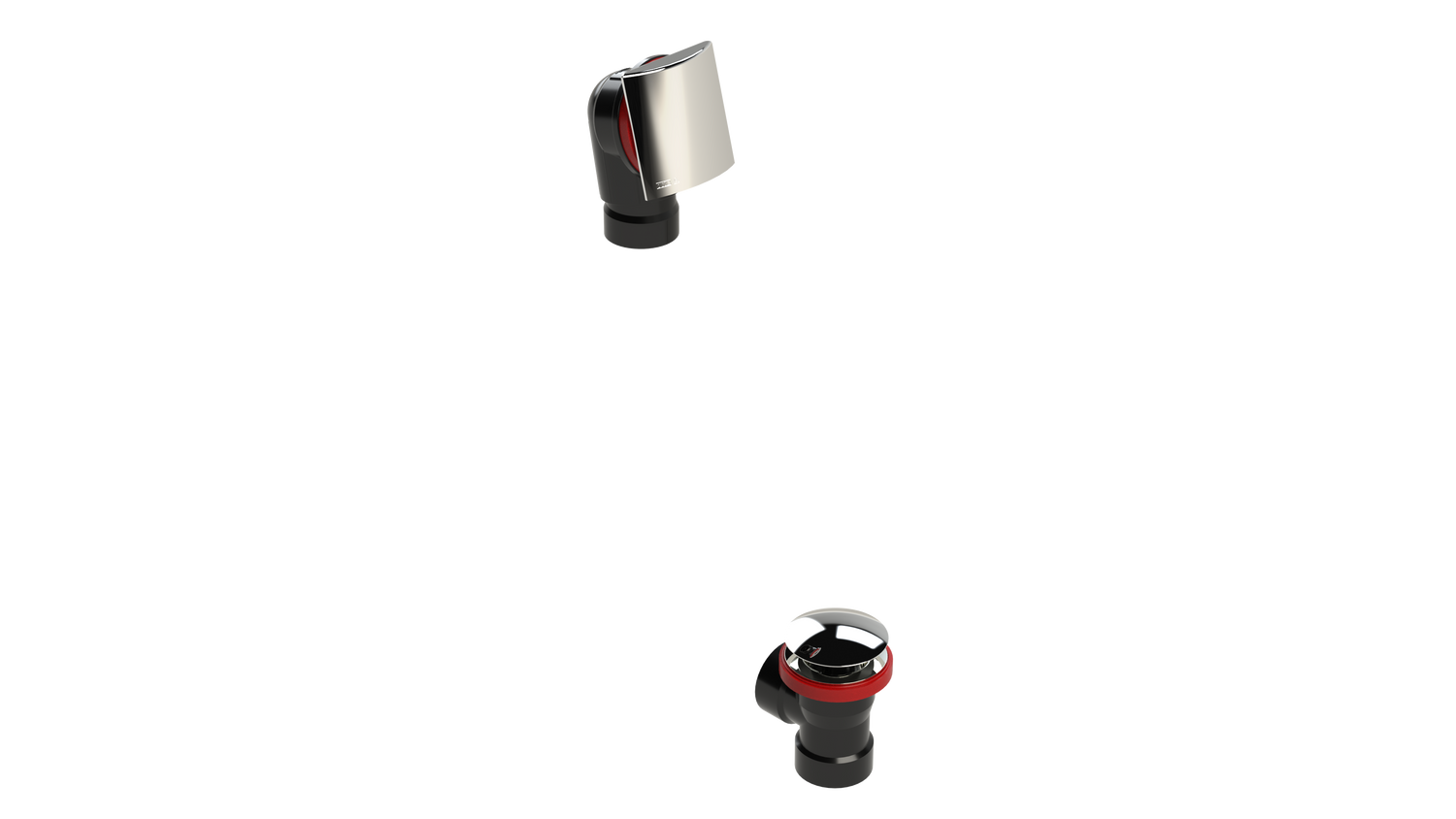

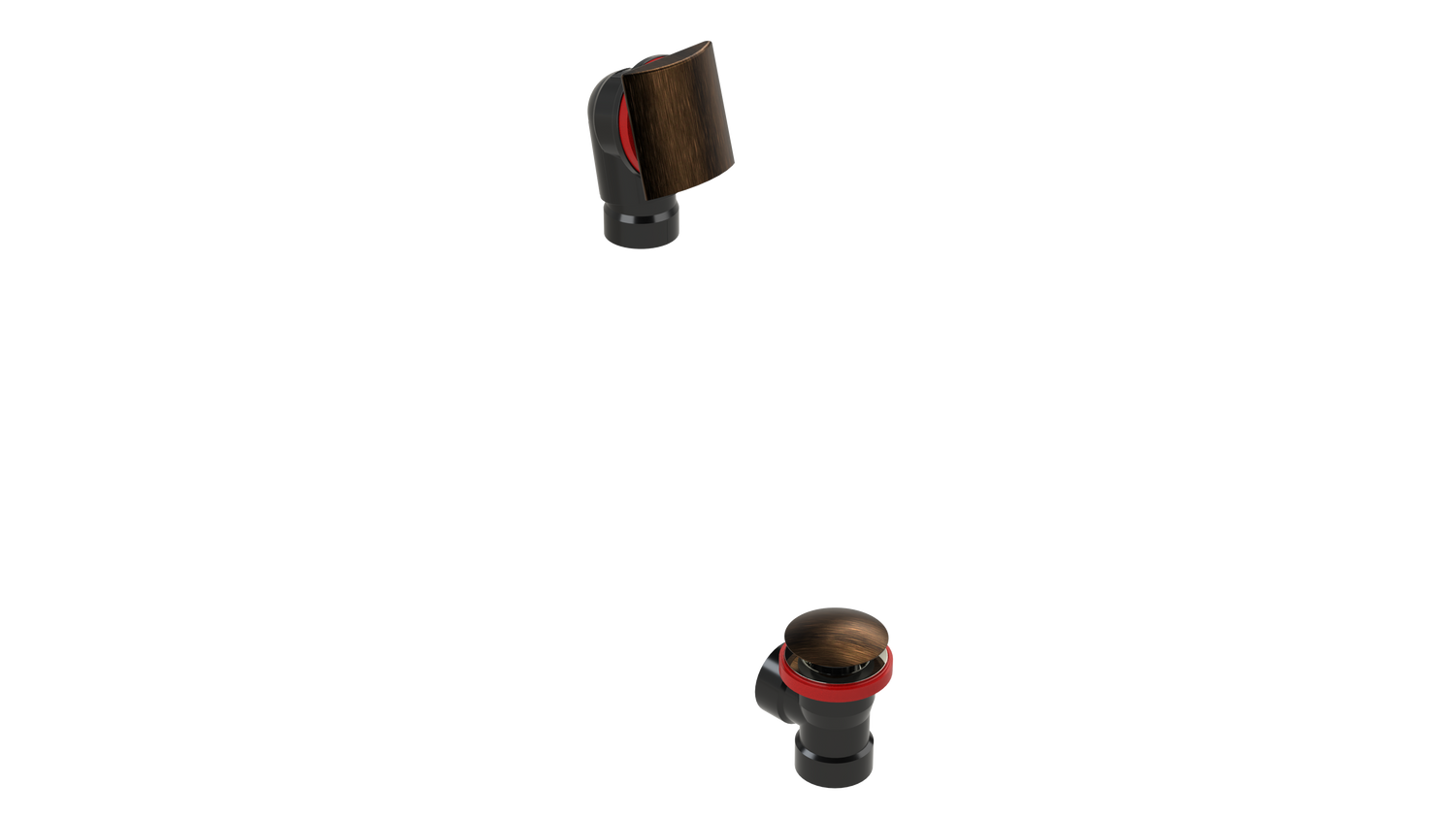

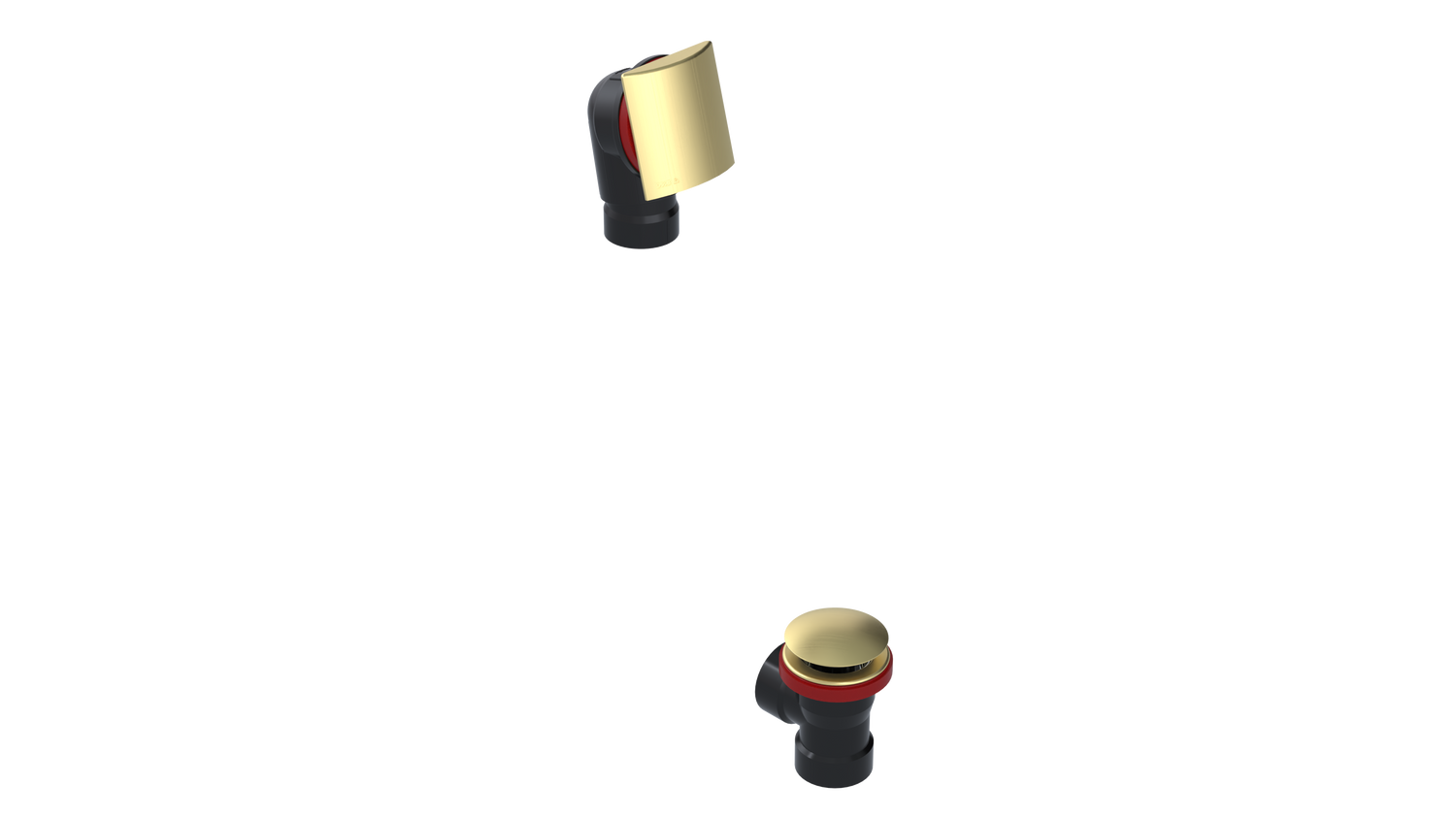

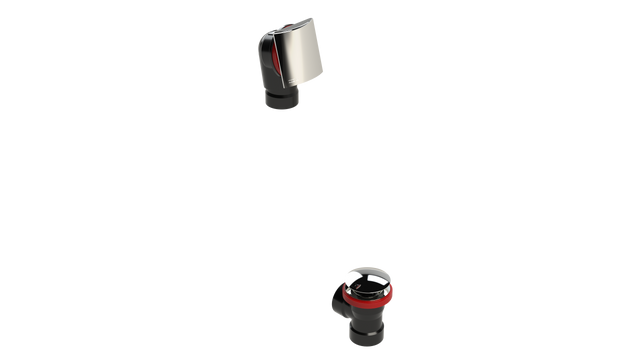

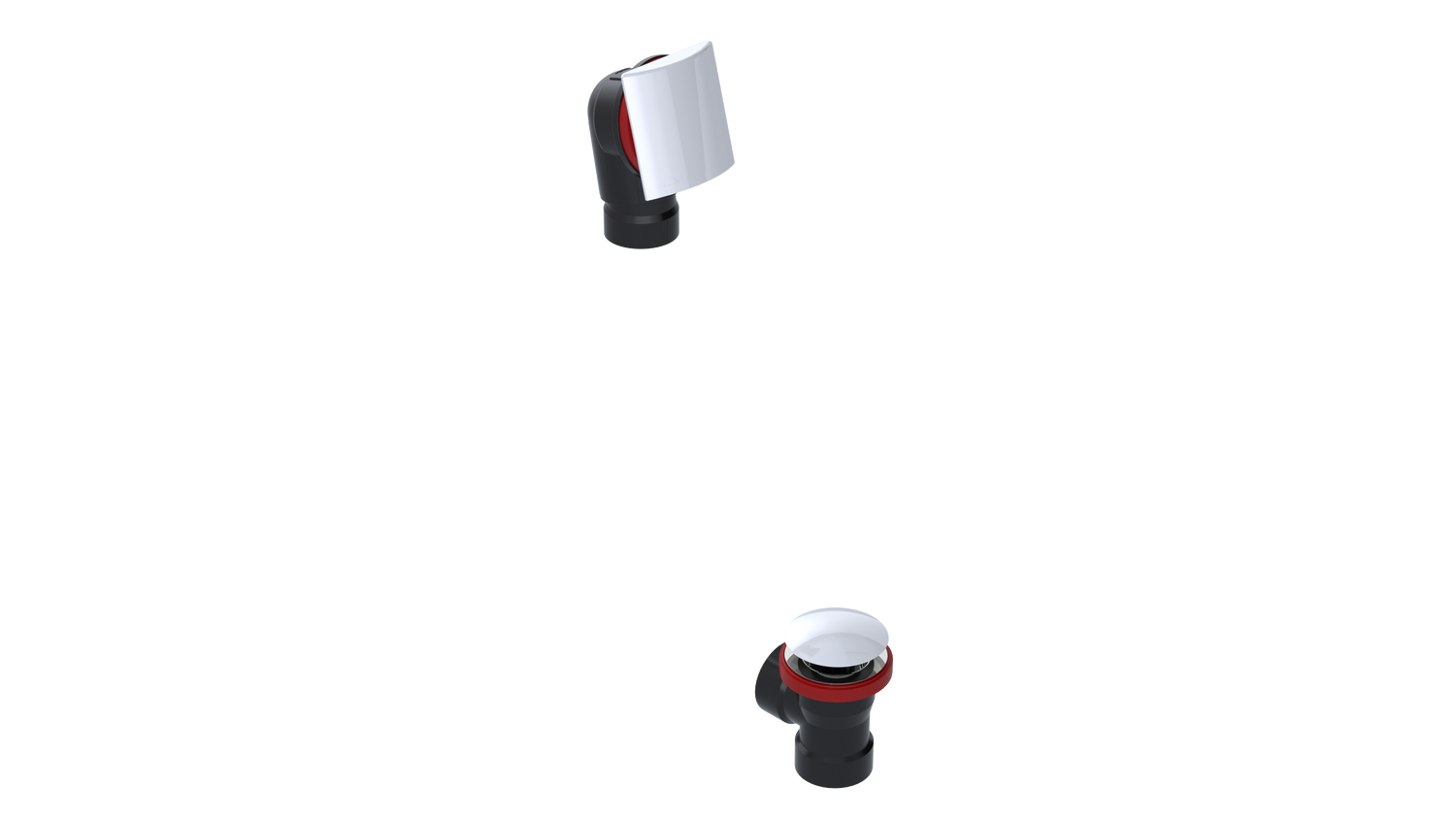

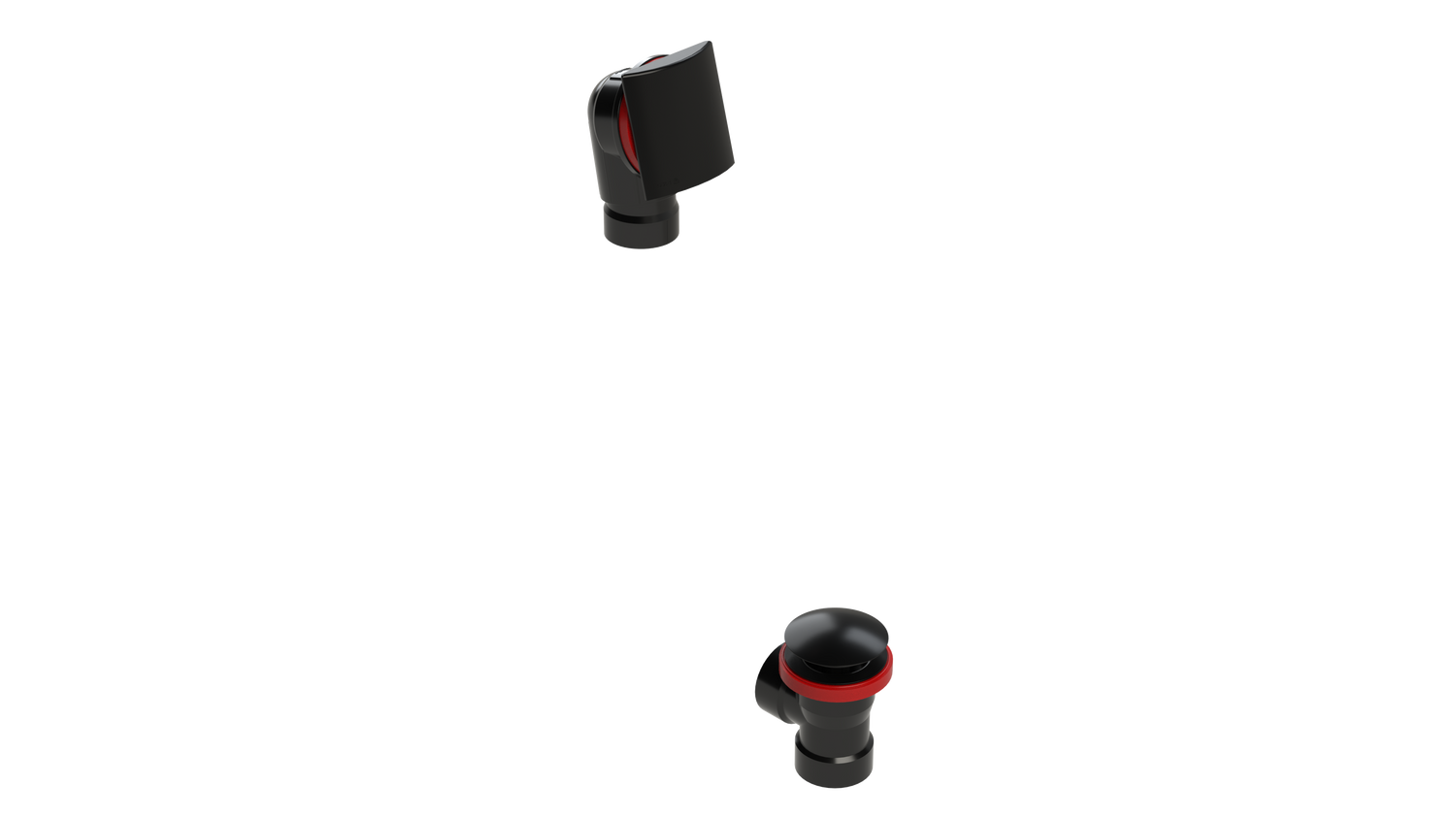

ABS DIRECT DRAIN WASTE & OVERFLOW CLICKER® HALF KIT (641DQHK)

The OS&B ABS Direct Drain Waste & Overflow Clicker® Half Kit (641DQHK) is a 1-1/2" ABS direct Clicker® waste and overflow half kit with a square faceplate. It features a square SlideOn™ faceplate, a spin-on tie plate and an angle adapter, with a large strainer and brass top EUROCLICKER® stopper. It is made of Schedule 40 ABS. The half kit comes less elbow and less 1-1/2" ABS pipe.

Features

• Thick foam overflow gasket with an adhesive back
• Spin-on tie plate for a toolless installation
• Overflow head with an integrated 6 degree angle
• Overflow head with aggressive threads for a quicker and easier installation
• Angle adapter included; its use is optional
• Self-clinging rubber waste gasket
• Coarse thread strainer

Specifications

• Material: ABS (Schedule 40)
• Configuration: Half Kit
• Comes less: Elbow and 1-1/2" ABS pipe
• Faceplate: Square SlideOn™
• Stopper: Brass top EUROCLICKER® stopper
• Available finishes: Brass Chrome Plated, Brushed Gold, Brushed Nickel, Chrome Plated, Matte Black, Polished Nickel, Venetian Bronze, White
• Standard: ASME A112.18.2/CSA-B125.2
