CARINTHIA WALL MOUNT TUB FILLER

The Vogt CARINTHIA wall mount tub filler (BF.CX.2210) is a solid brass tub filler with a 15" x 5 3/8" face plate and a built-in rough. The tub spout delivers 5.8 gpm (22 lpm) at 60 psi and the handheld delivers 1.9 gpm at 60 psi. It is offered with two handle styles, including an octagonal handle, and in eight finishes.

Features

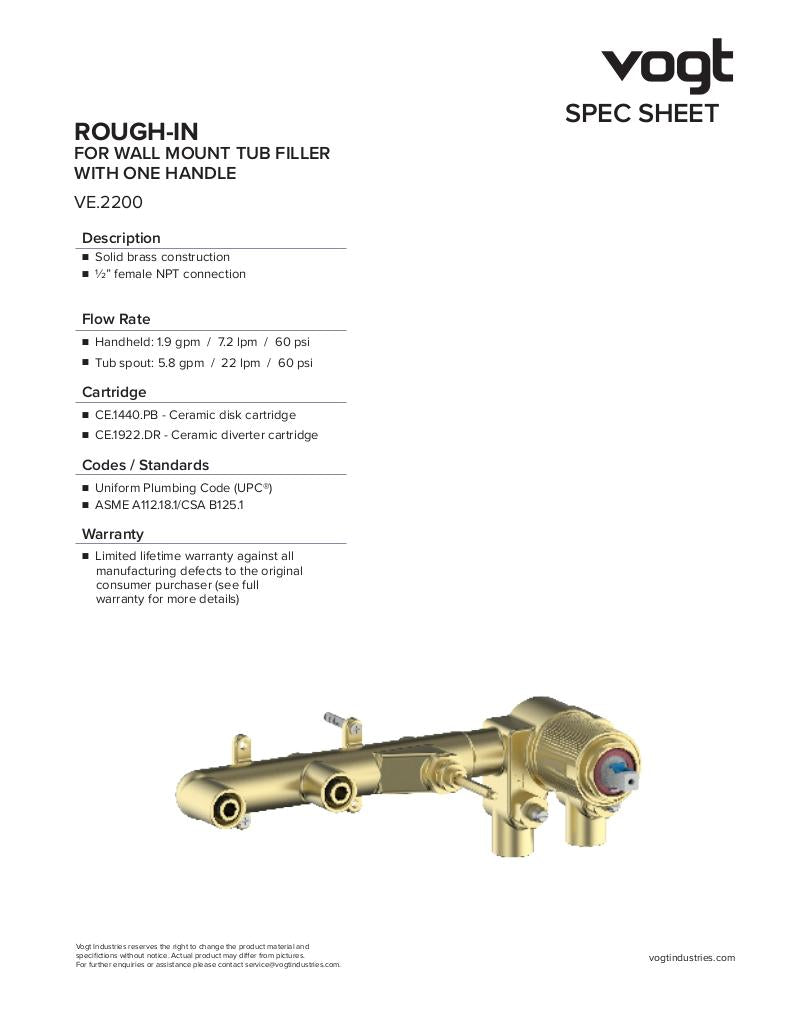

• Rough-in included (built in)
• Ceramic cartridge (CE.1440.PB)
• Integrated diverter (CE.1922.DR)
• 1/2" female NPT connection
• Meets the Uniform Plumbing Code (UPC), ASME A112.18.1/CSA B125.1 and ASSE 1016
• Limited lifetime warranty against all manufacturing defects to the original consumer purchaser

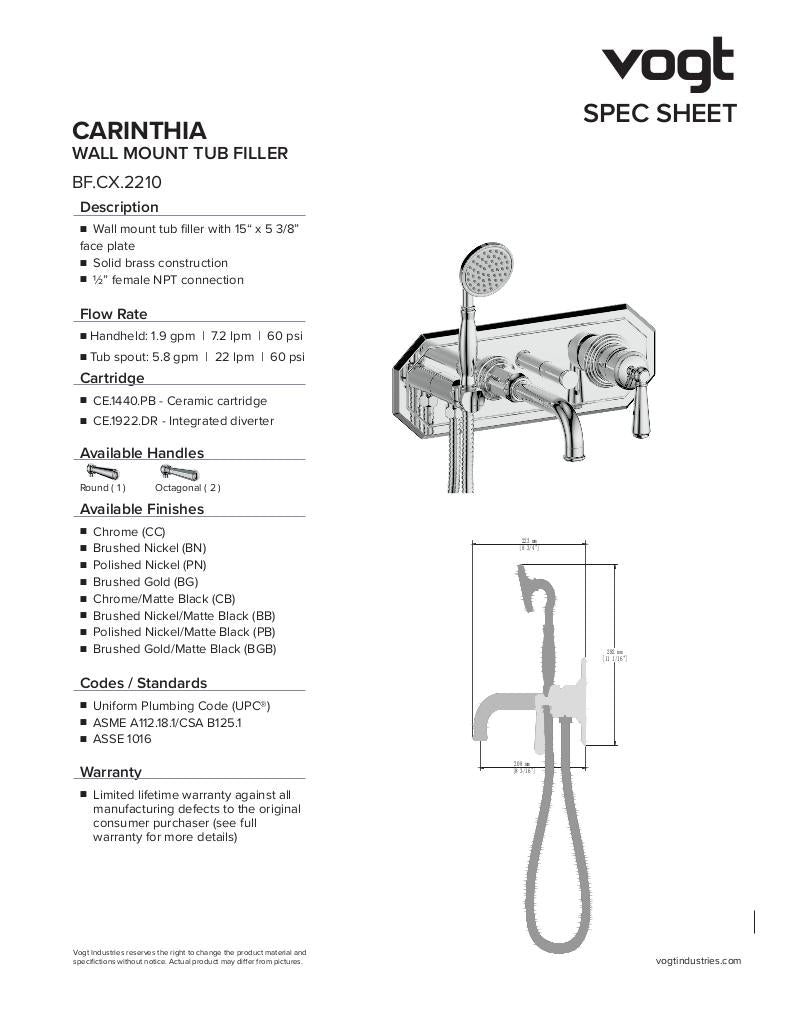

Specifications

• Model: BF.CX.2210
• Mounting: Wall mount
• Face plate: 15" x 5 3/8"
• Construction: Solid brass
• Connection: 1/2" female NPT
• Tub spout flow rate: 5.8 gpm | 22 lpm | 60 psi
• Handheld flow rate: 1.9 gpm at 60 psi
• Cartridges: CE.1440.PB ceramic cartridge; CE.1922.DR integrated diverter
• Codes / standards: UPC, ASME A112.18.1/CSA B125.1, ASSE 1016

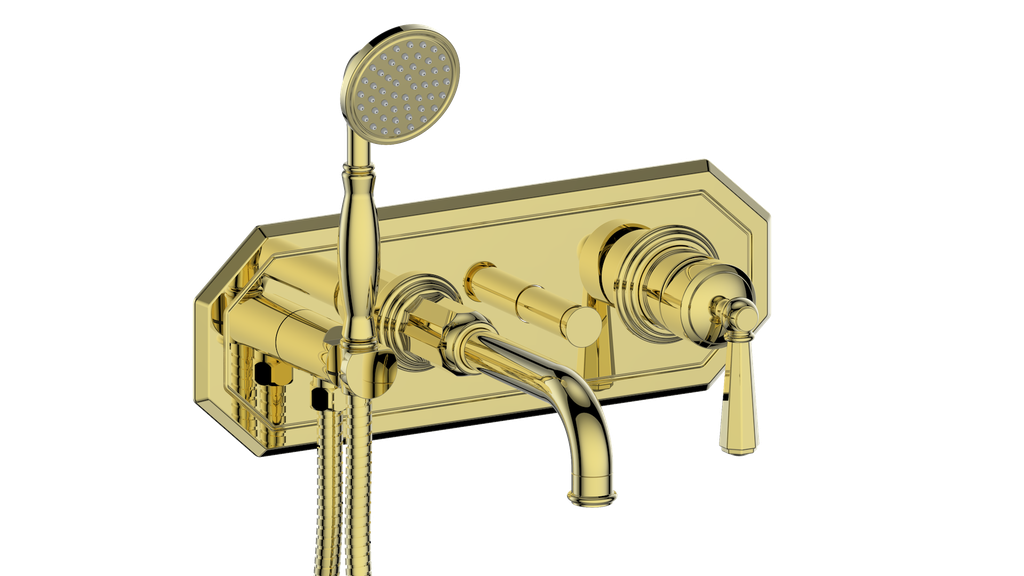

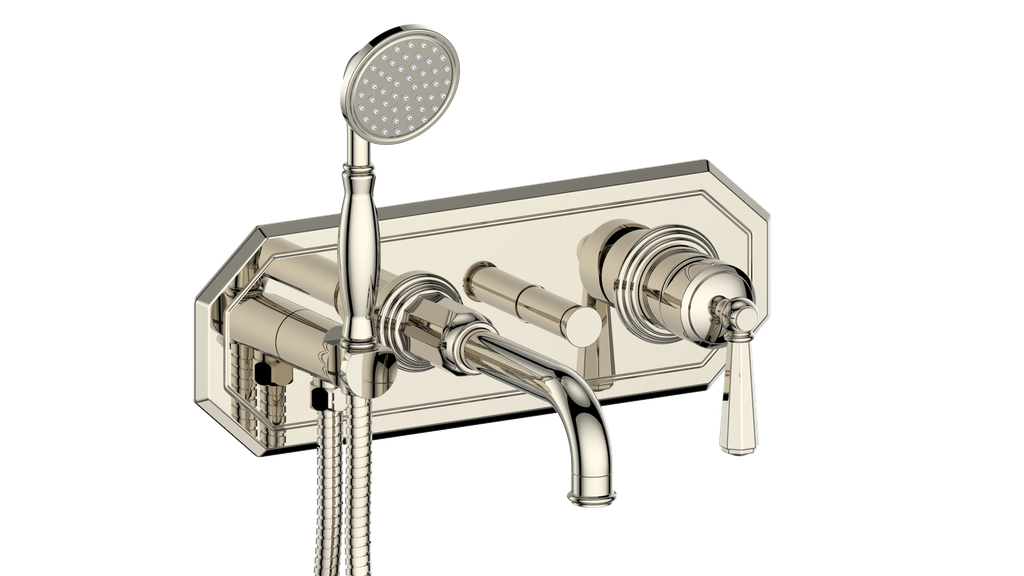

• Handle options: Two styles, including Octagonal Handle

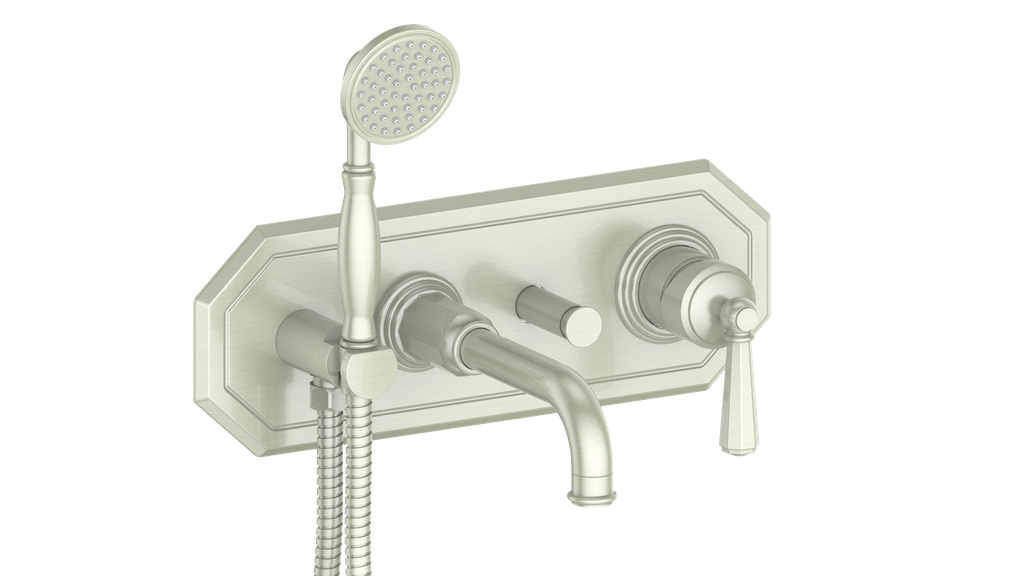

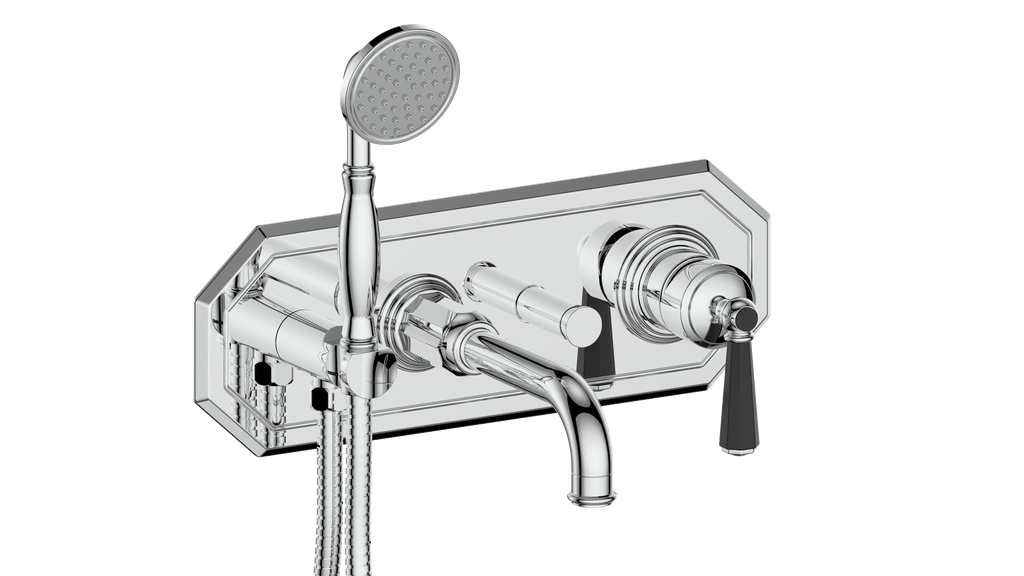

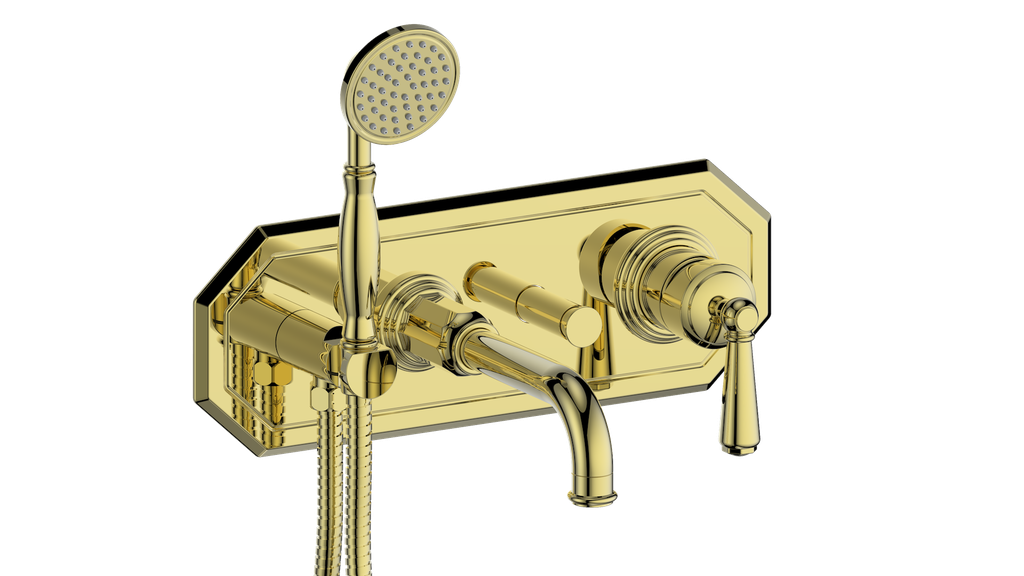

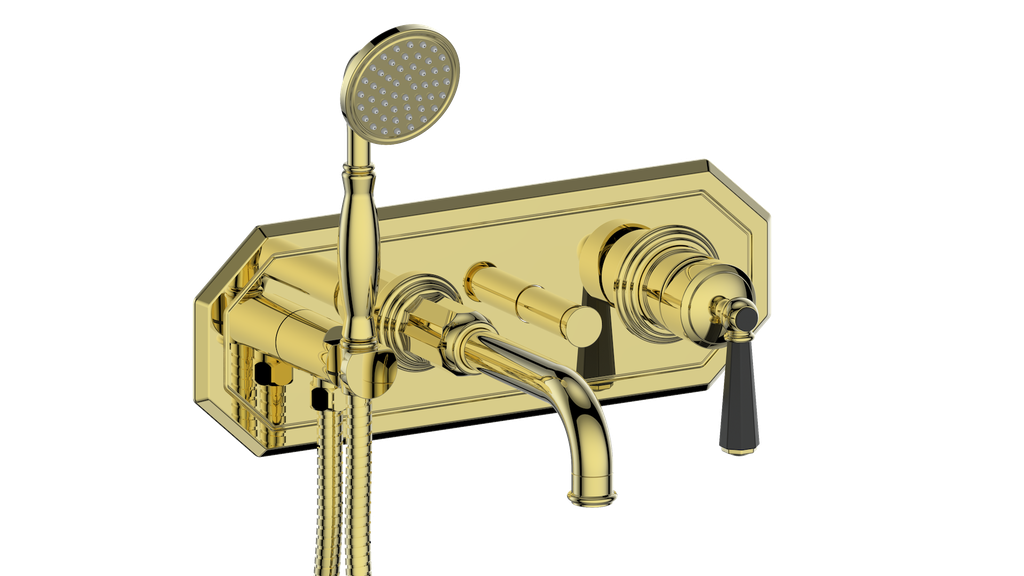

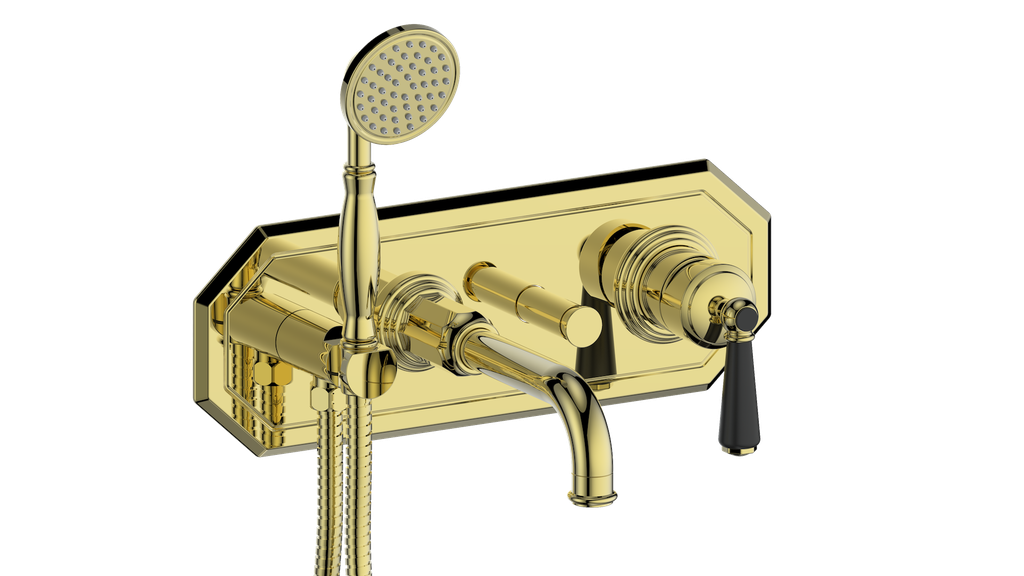

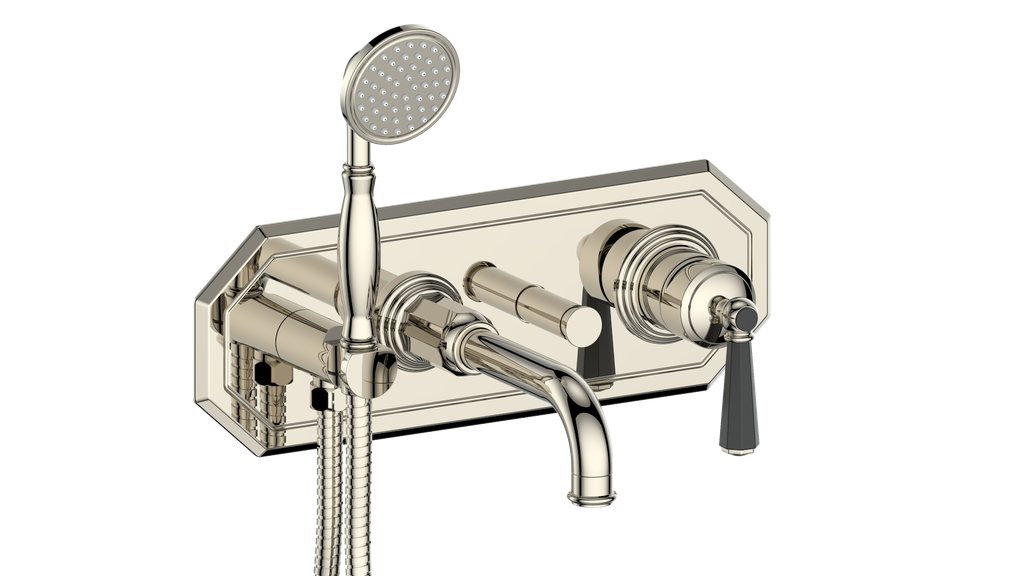

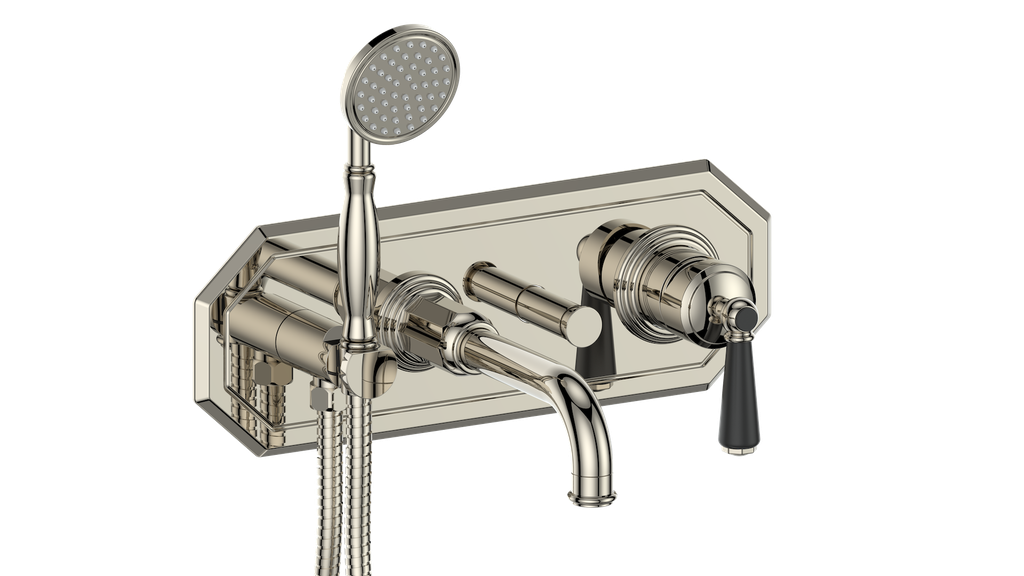

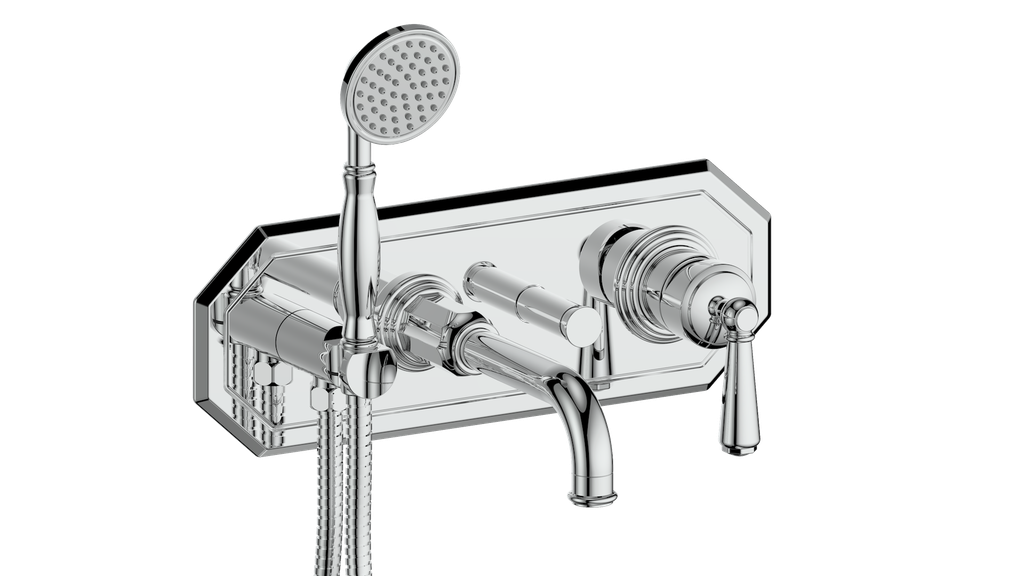

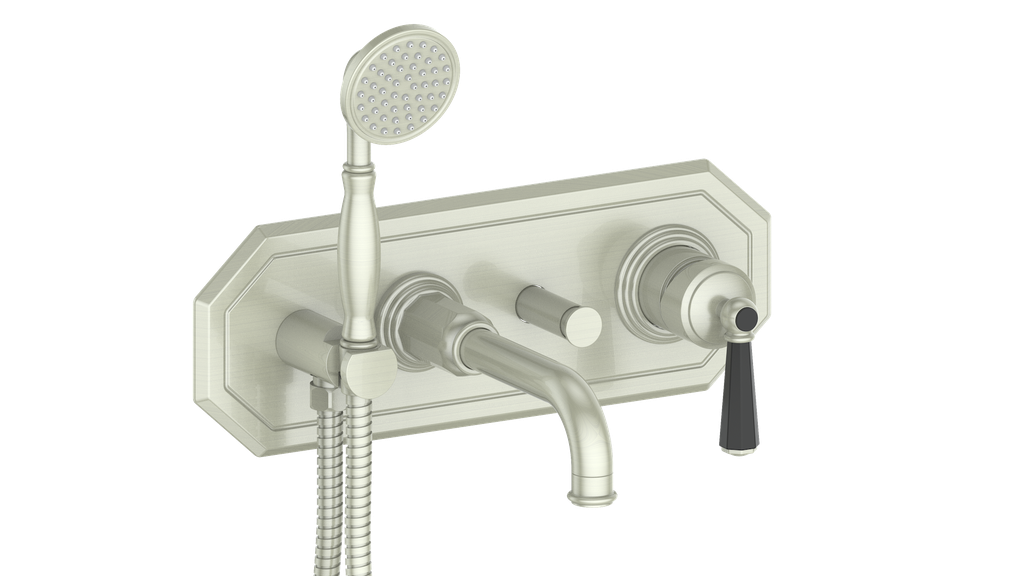

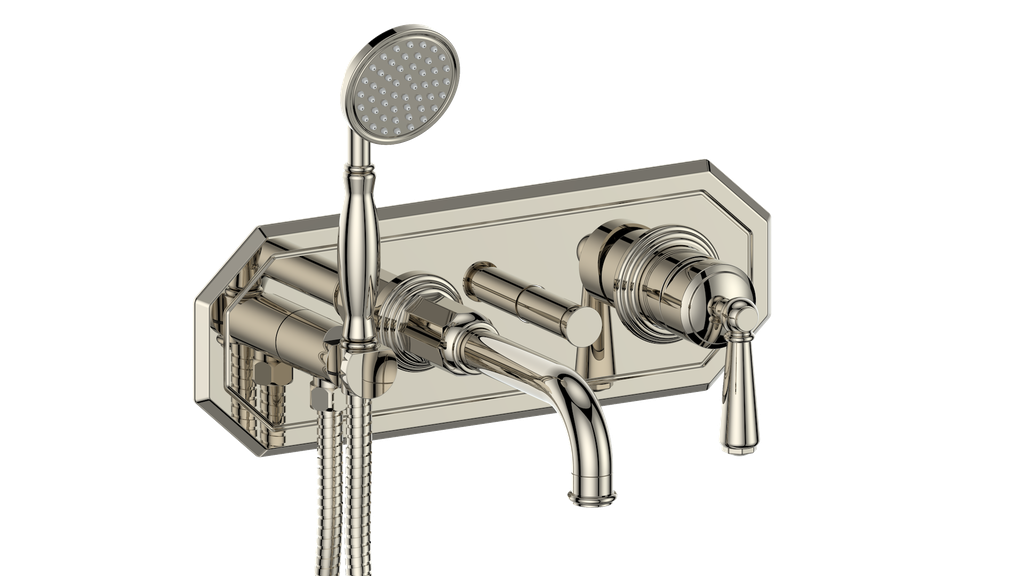

• Available finishes: Brushed Gold, Brushed Gold/Matte Black, Brushed Nickel, Brushed Nickel/Matte Black, Chrome, Chrome/Matte Black, Polished Nickel, Polished Nickel/Matte Black
• Warranty: Limited lifetime, against all manufacturing defects to the original consumer purchaser
