Graceline® Widespread Lavatory Faucet With U-Spout MB2009LM-2

The ROHL Graceline® MB2009LM is a widespread lavatory faucet with a U-spout and metal levers, made of brass and deck mounted with a 3-hole configuration. It has 8" centres, a 5 29/32" height fixed spout with pop-up and a 5 11/16" spout reach. The faucet flows 1.2 GPM/4.5 LPM at 60 PSI (WaterSense and CEC compliant), and a lift rod drain assembly is included with the faucet. It is available in Polished Chrome, French Brass, Gun Metal, Matte Black, Polished Nickel, Satin Gold and Satin Nickel.

Features

• 1/4-turn ceramic disc control cartridge
• Lift rod drain assembly included with faucet
• 3/4'' female NPT inlet
• 3 x 1 3/8" cutouts
• 1.2 GPM aerator
• 8" centres with brass construction

Specifications

• Model: MB2009LM
• Collection: Graceline
• Style: Transitional
• Installation type: Widespread
• Mounting: Deck
• Hole configuration: 3
• Handles: Metal levers
• Spout height: 5 29/32" (fixed spout with pop-up)
• Spout reach: 5 11/16"
• Centres: 8"
• Flow rate: 1.2 GPM/4.5 LPM at 60 PSI
• Standards: ASME A112.18.1/CSA B125.1; NSF 61/9 & 372 Q ≤ 1; CEC

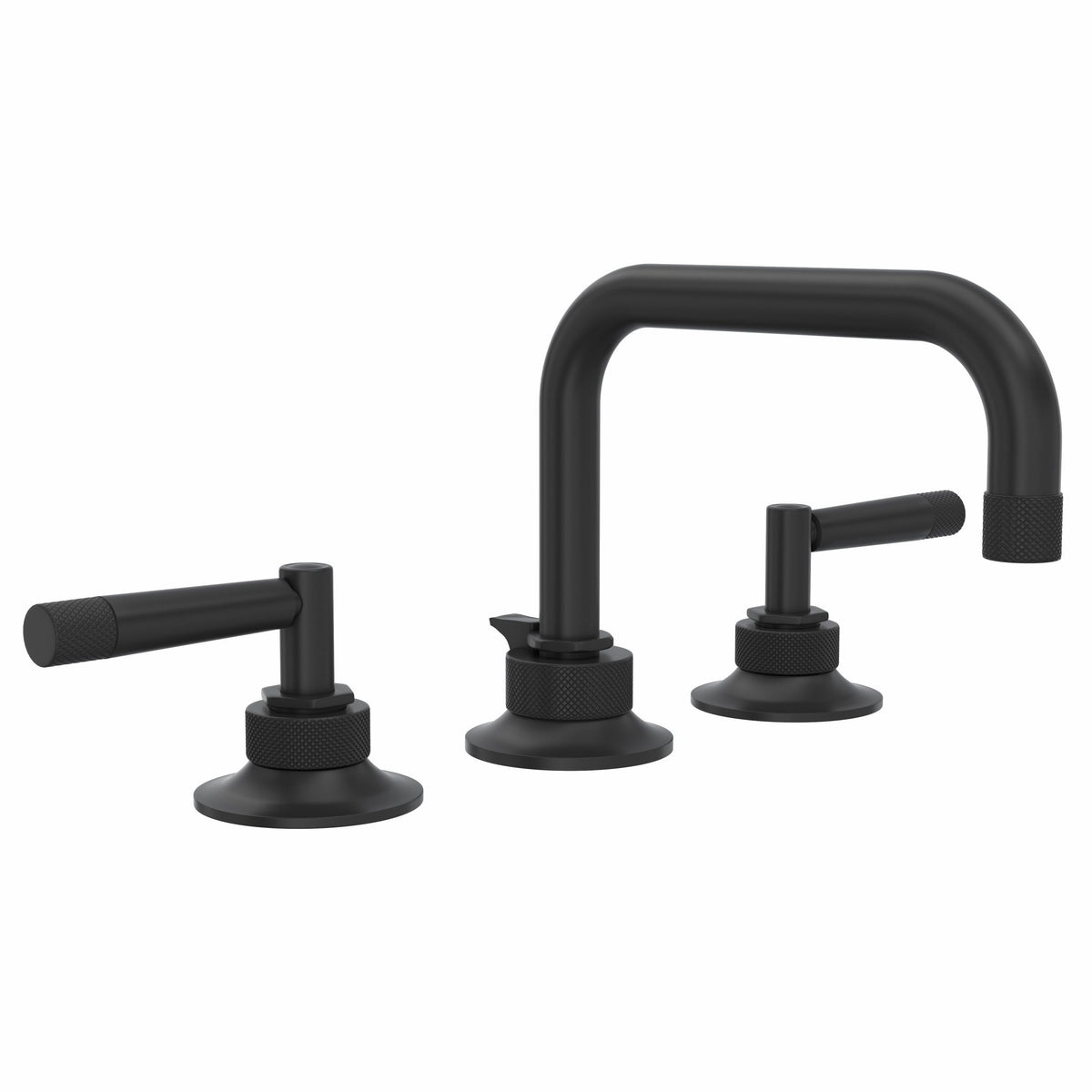

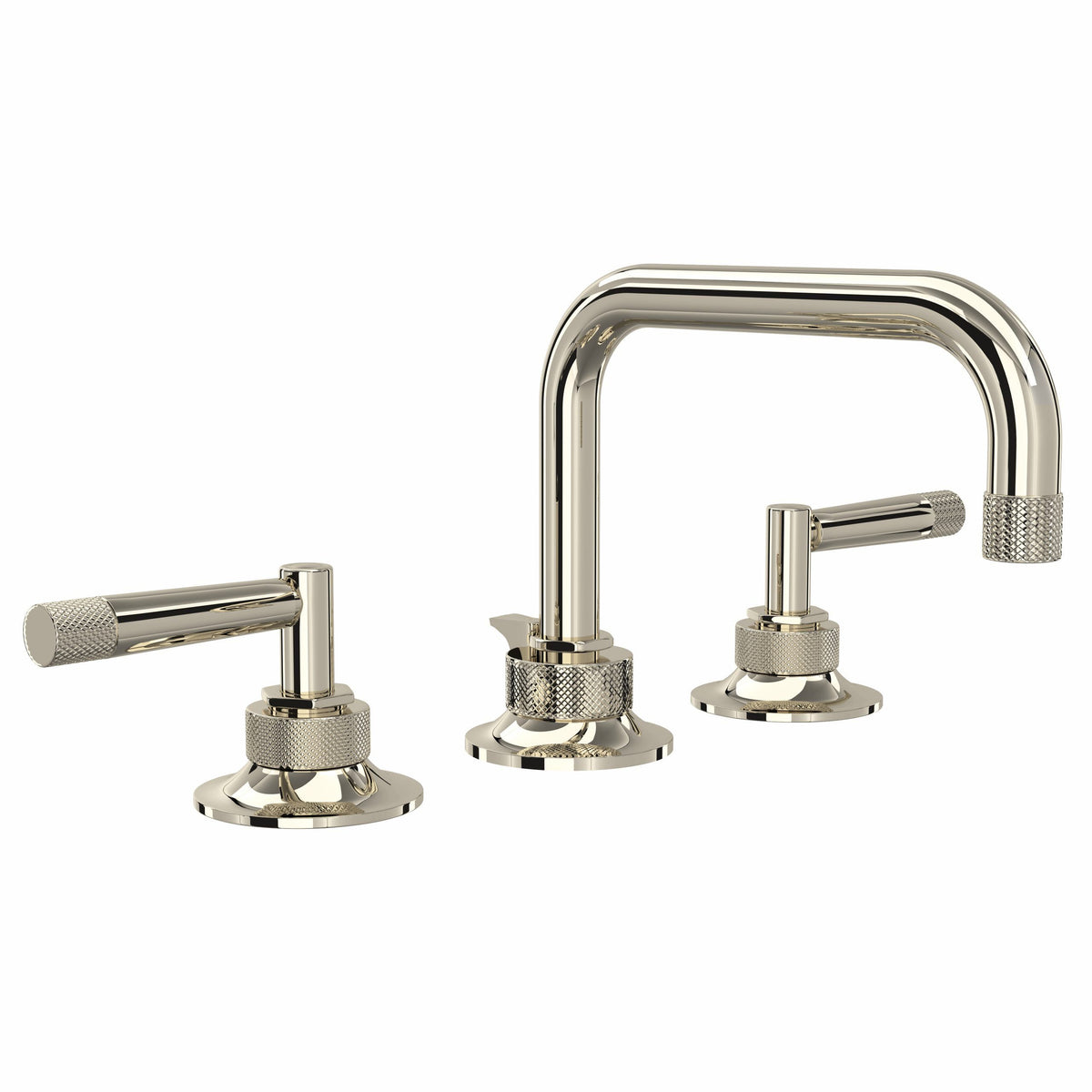

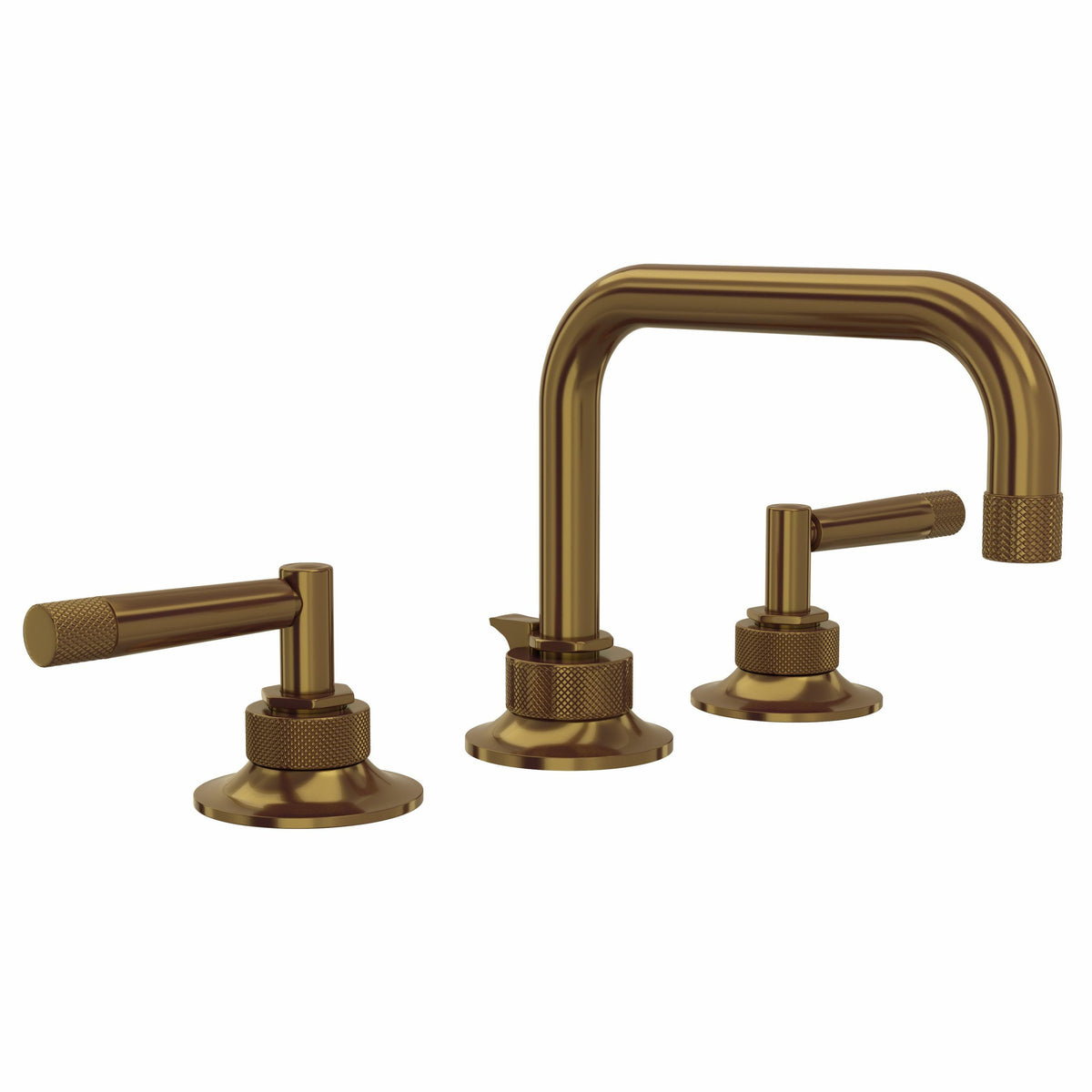

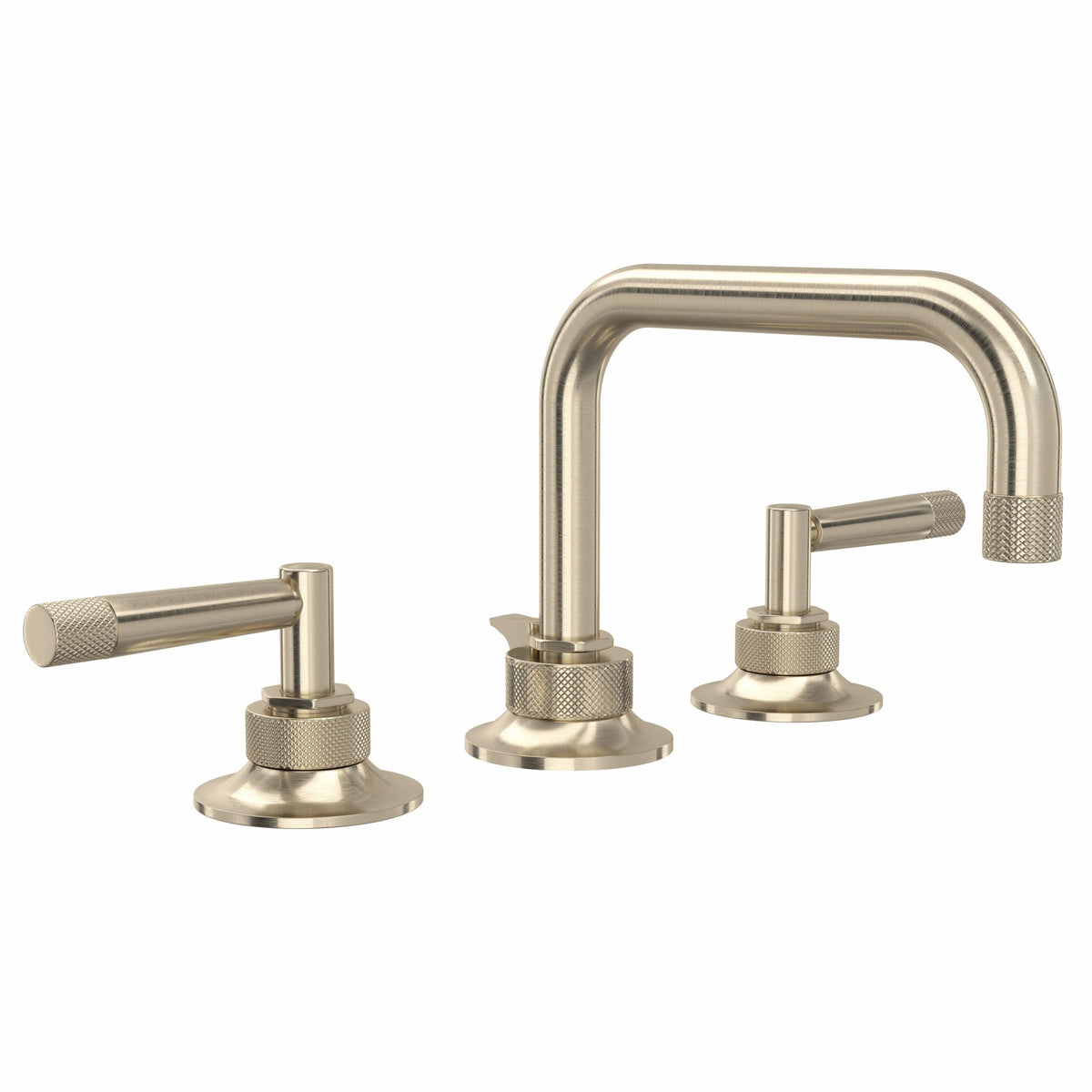

• Available finishes: Polished Chrome, French Brass, Gun Metal, Matte Black, Polished Nickel, Satin Gold, Satin Nickel
• Warranty: Limited Lifetime on Polished Chrome, Polished Nickel and Satin Nickel; 5-Year Limited Warranty on Gun Metal, Matte Black and Satin Gold; no warranty on French Brass
