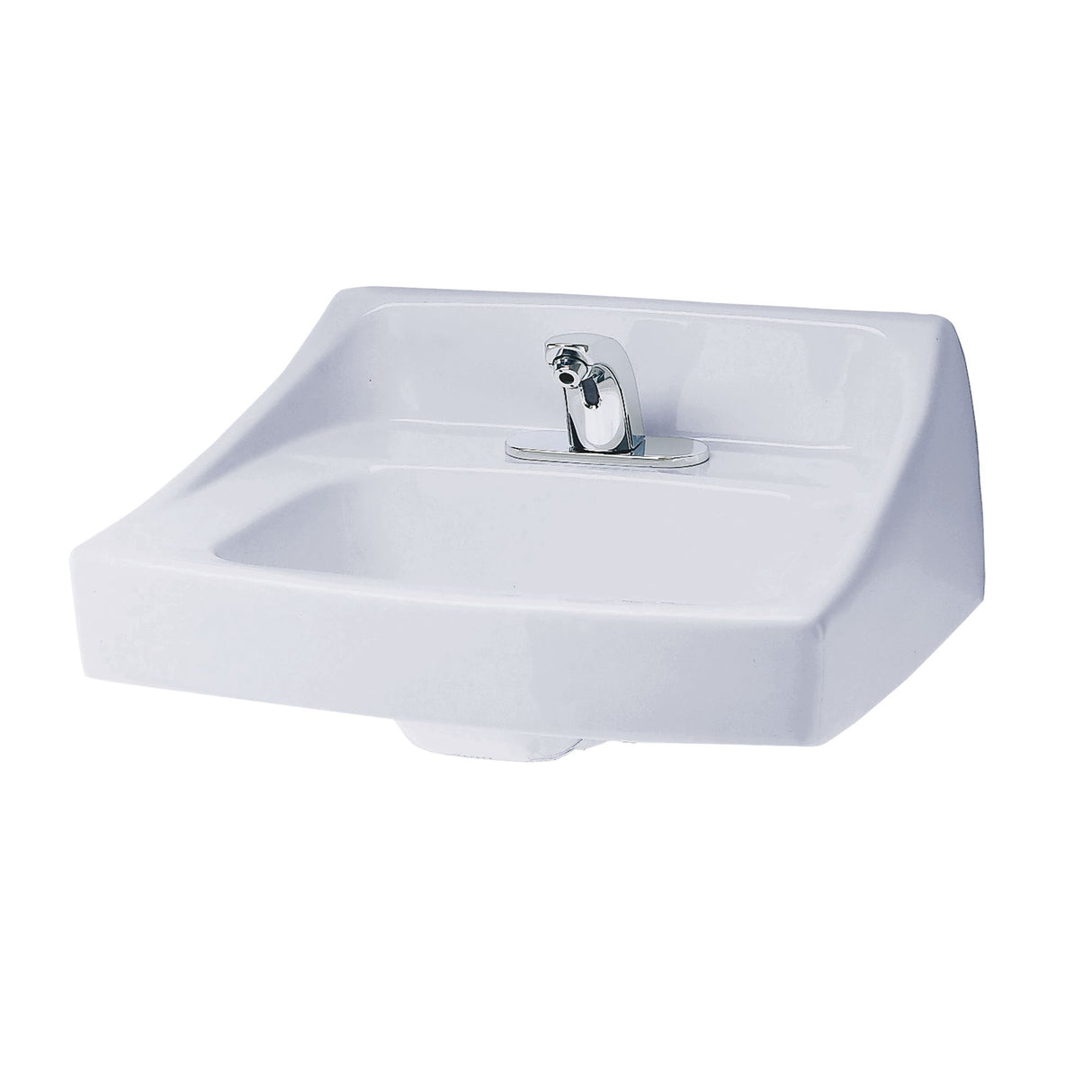

Commercial Wall-Mount Lavatory

View Specifications

View Installation

View CAD Drawing

View Parts Manual

View Revit Model

This simple, cleanly designed piece works with any commercial bathroom space, featuring an anti-splash rim, high back and concealed front overflow. ADA compliant.

Features
• Anti-Splash Rim
• Concealed Front Overflow
• Punching for Concealed Arm Carrier
• Durable and Easy to Maintain

Certifications
• ADA Compliant : Serves people of every age and capability, without additional adaptation or specialization, and so can be enjoyed by everyone, always optimized for the best experience.
• Declare : A partnership with International Living Future Institute to provide material ingredients for products. The Declare Label can help with Living Building Challenge projects and earn credits in the LEED v4 rating system.
• California Proposition 65 : Complies with California Proposition 65 warning requirements.

Installation Specifications:
Faucet Installation Holes: 4 Inch Mount|8 Inch Mount|Single Hole Mount
