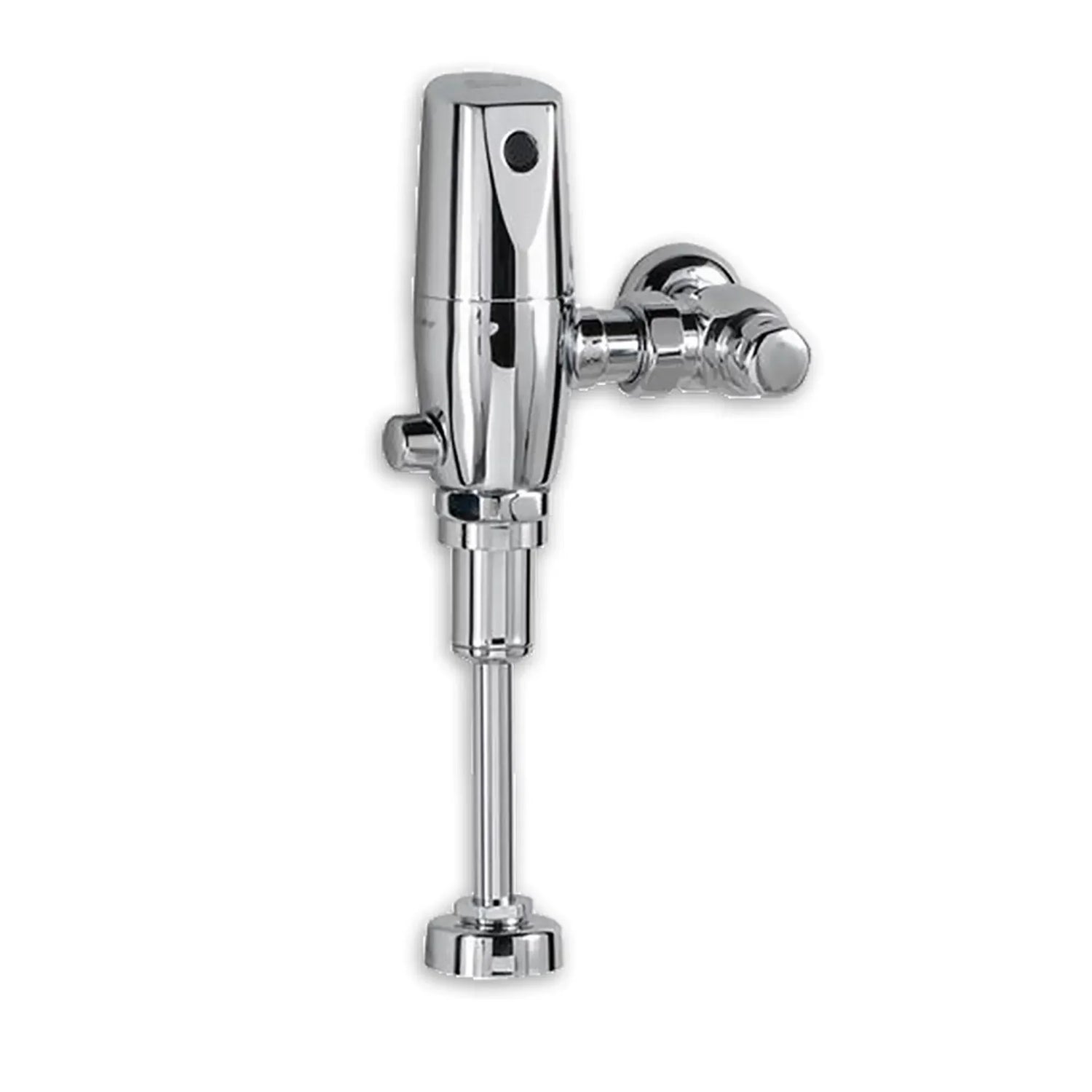

Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, PWRX, 1.0 gpf/3.8 Lpf

The optional PWRX™ Long-Life Battery System features advanced battery and electronics for a 10 year battery life to reduce the downtime and maintenance costs associated with changing batteries. Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressureSelf-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenanceDezincification Resistant semi-red brass alloySelectronic Proximity System with universal sensor provides hygienic, "hands free" operationState-of-the-Art Electronics prevent ghost flushingFully Mechanical Manual Override Button can flush the valve without powerFail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset

Features

• For urinals with 3/4-inch (19 mm) exposed top spud
• 10-Year PWRX Battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• For urinals with 3/4-inch (19 mm) exposed top spud
• 10-Year PWRX® Battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Collections: Selectronic
• Touchless: Touchless
• Gallons Per Flush (min-max): 1 GPF
• Number of Output Valves: 1
• Height: 423
• Length: 254
• Width: 205
• Residential or Commercial: Commercial
• Subcategory: Sensor Flush Valve and Sanitary Items
