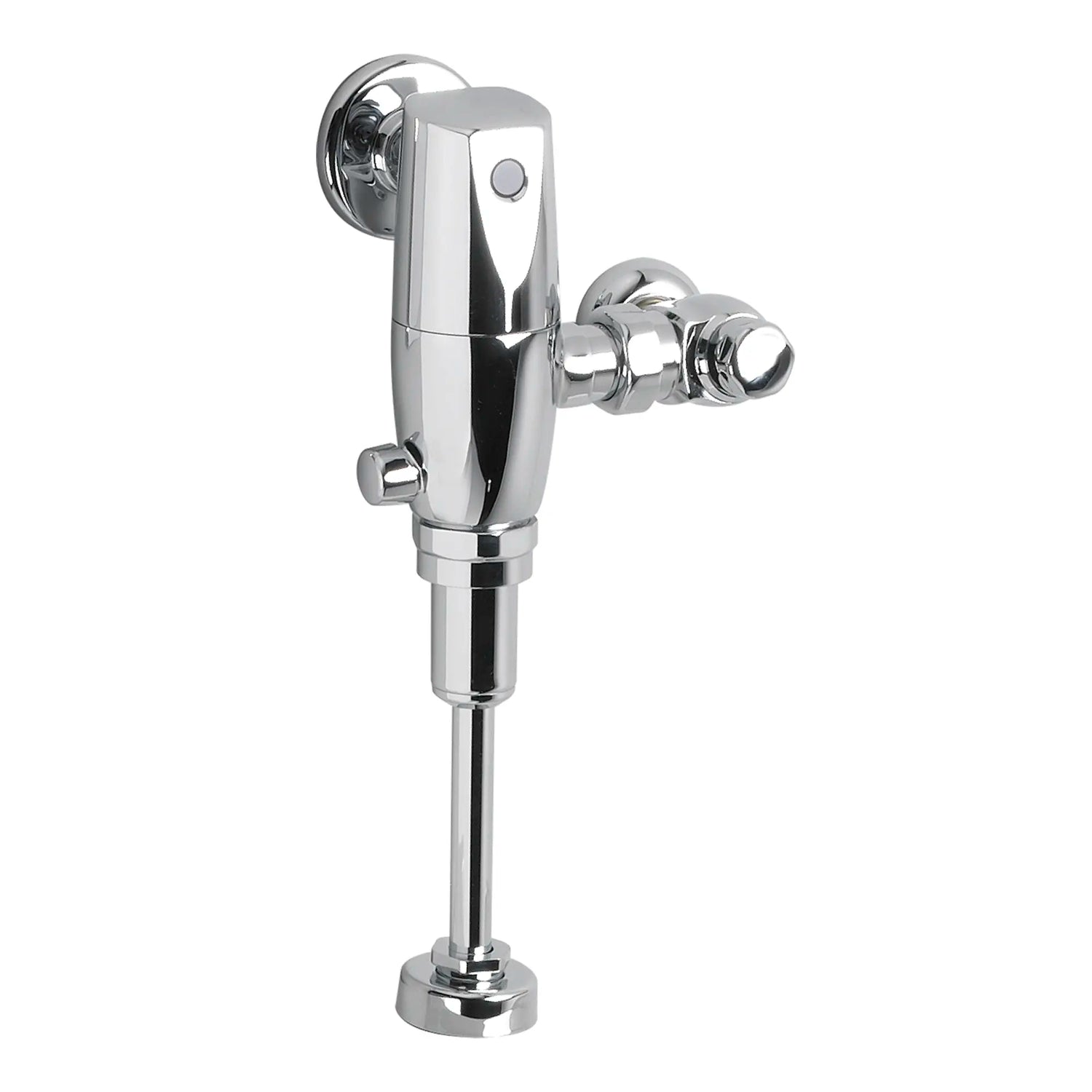

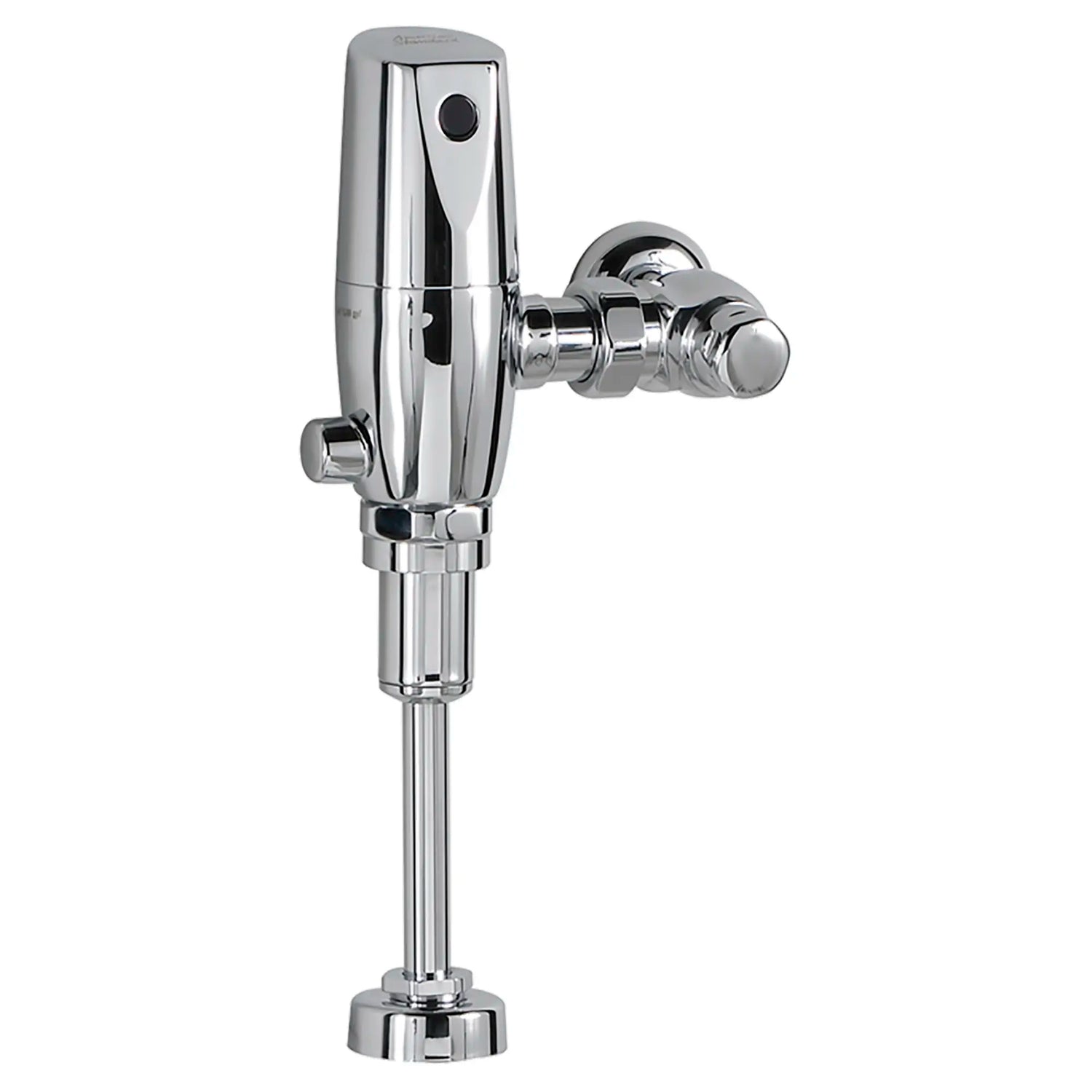

Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 1.0 gpf/3.8 Lpf

The Selectronic Urinal Flush Valves feature a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. The Selectronic flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.Features CR-P2 lithium battery installed. Battery Life: 4 years assuming 4,000 flushes per month Touch-free operation helps keep the restroom clean and hygienic Pressure Compensation feature maintains accurate flush volume regardless of inlet water pressure Self-cleaning piston significantly reduces clogging and prevents valve run-on Integral wiper spring cleans the refill orifice with every flush for extraordinary reliability No Routine Maintenance no diaphragms to replace; no filters to clean Selectronic® Proximity System with programmable sensor allows for easy adjustment and customization State-of-the-Art Electronics prevent ghost flushing Fully Mechanical Manual Override Button can flush the valve without power Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset Adjustable Sanitary Flush cleans the fixture & maintains the trap seal. Stadium Feature: Valve automatically switches to water savings mode during periods of heavy usage Chemical Resistant EPDM Seals for extended life Can be installed left or right handed

Features

• For urinals with 3/4-inch (19 mm) exposed top spud
• 5-year CR-P2 lithium battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• For urinals with 3/4-inch (19 mm) exposed top spud
• Includes CR-P2 lithium battery with 5 year life (assuming 4,000 uses per month)
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Flush Value: Exposed
• Collections: Selectronic
• Fitting Connection Size Input: 3/4
• Fitting Material: Brass
• Touchless: Touchless
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Batteries Included: 1
• Number of Output Valves: 1
• Height: 16
• Length: 4-1/2
• Residential or Commercial: Commercial
• Rough In Size: 11.5
• Subcategory: Sensor Flush Valve and Sanitary Items
• USMCA Compliant: Yes
• Warranty: 5 Year Limited Warranty
