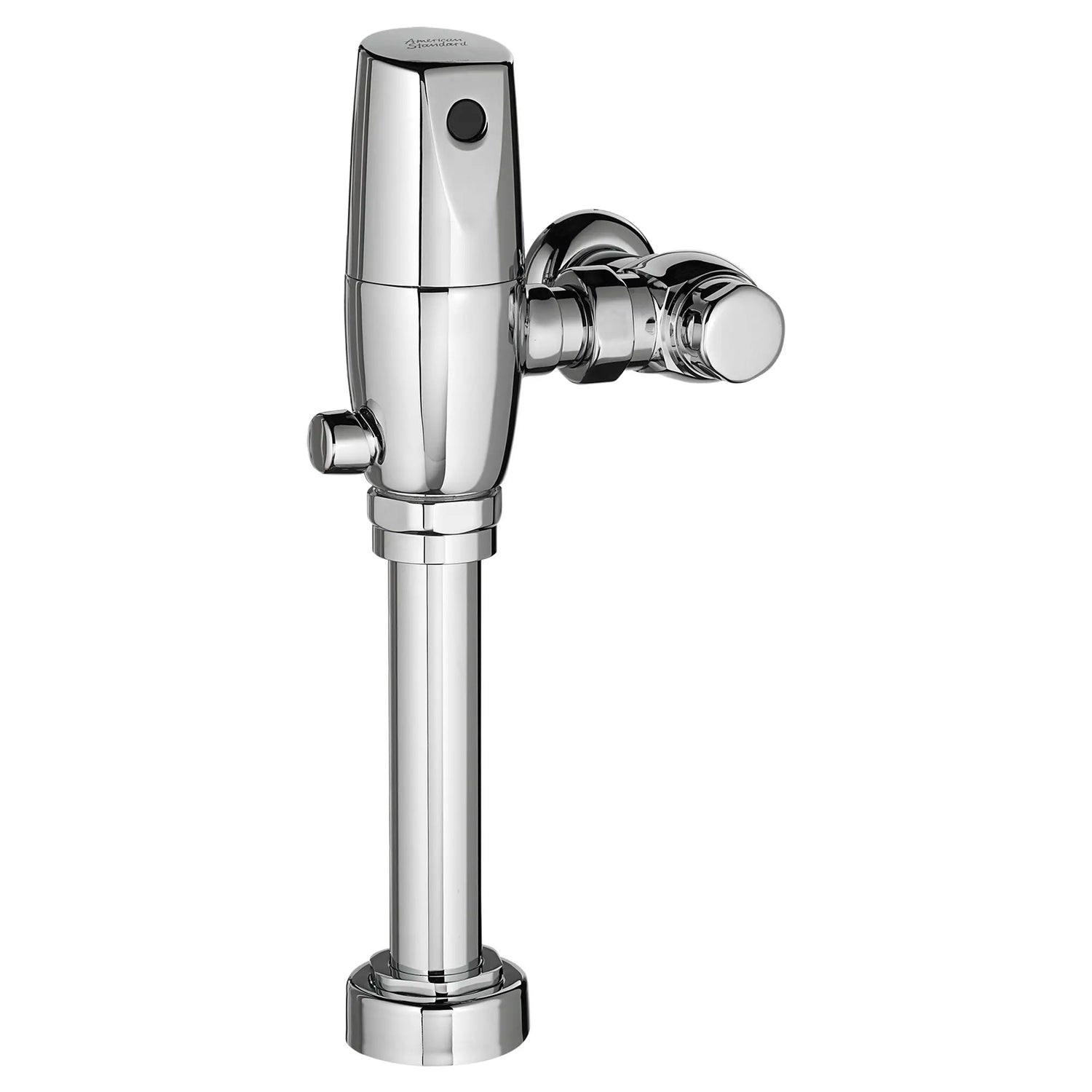

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, Dual Flush 1.6/ 1.1 gpf (6.0/4.2 Lpf)

The Exposed Selectronic® Toilet Flush Valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36” height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.Features

Features

• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• 5-year CR-P2 lithium battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• Includes CR-P2 lithium battery with 5 year life (assuming 4,000 uses per month)
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Flush Value: Exposed
• Collections: Selectronic
• WaterSense: Yes
• Fitting Connection Size Input: 1
• Fitting Material: Brass
• Touchless: Touchless
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1.1 - 1.6 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Batteries Included: 1
• Number of Output Valves: 1
• Height: 16
• Length: 4-1/2
• Residential or Commercial: Commercial
• Rough In Size: 11.5
• Subcategory: Sensor Flush Valve and Sanitary Items
• USMCA Compliant: Yes
• Warranty: 5 Year Limited Warranty
• Water Efficient: Yes
