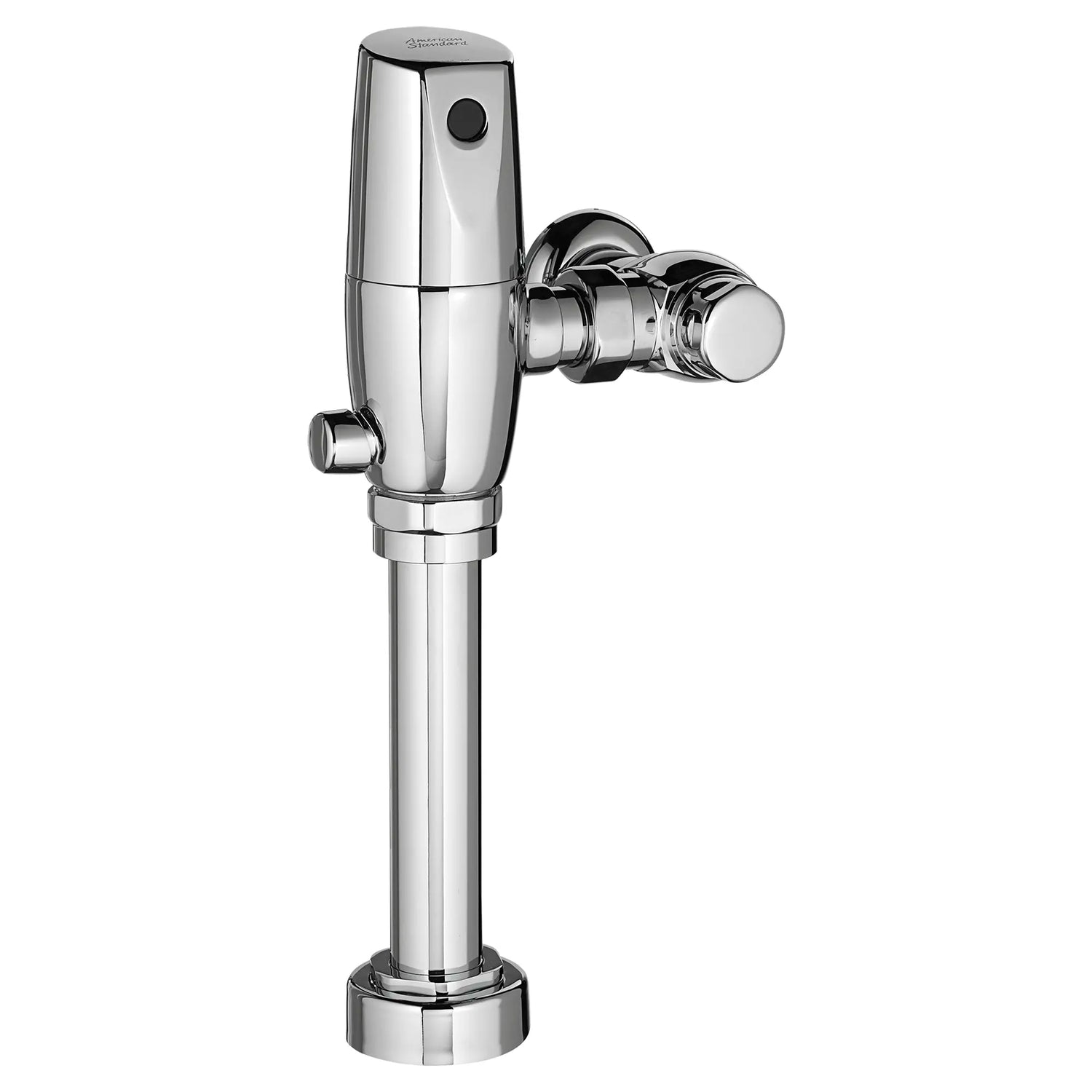

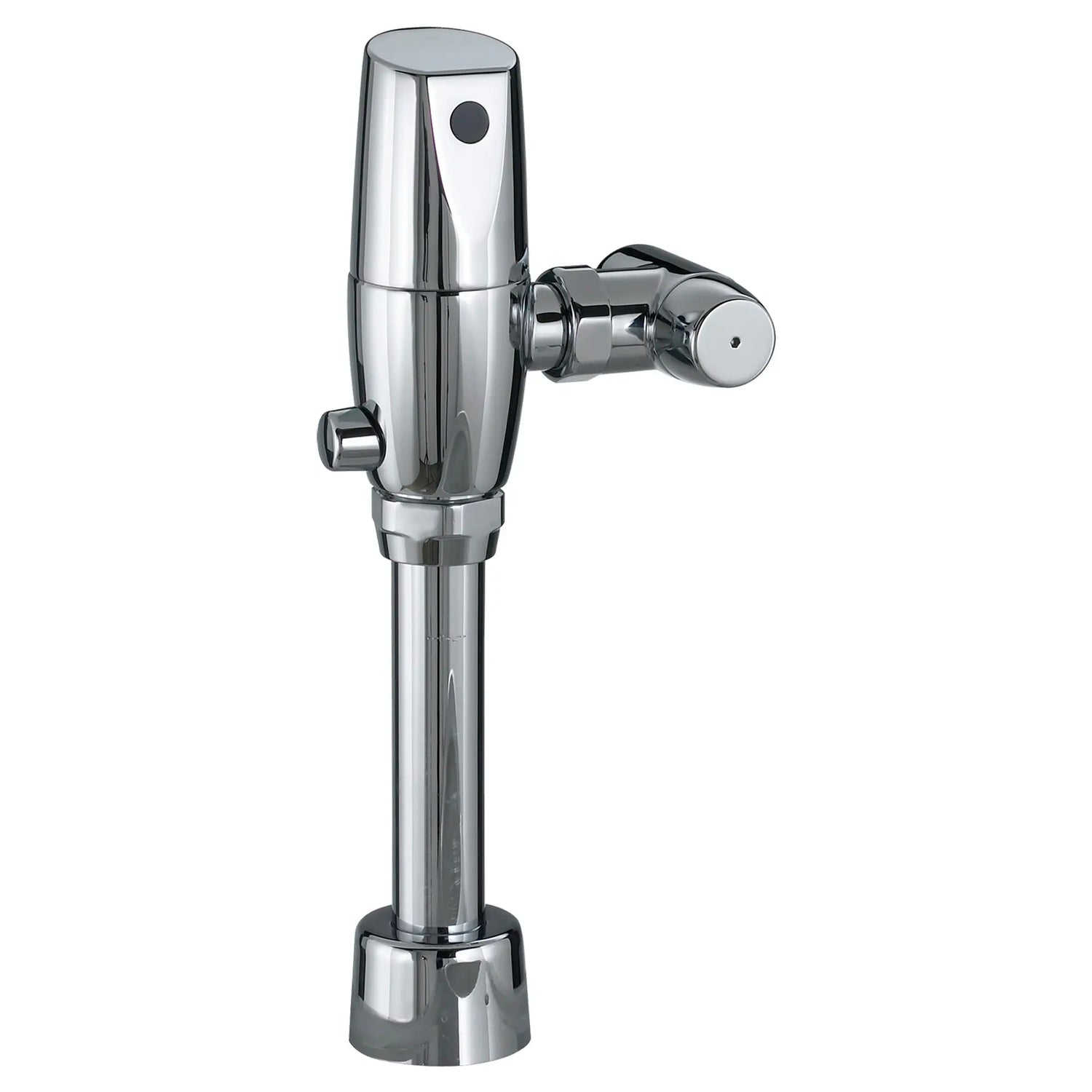

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Battery, 1.6 gpf/6.0 Lpf

The Exposed Selectronic® Toilet Flush Valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36” height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.Features CR-P2 lithium battery installed. Battery Life: 5 years assuming 4,000 flushes per month Touch-free operation helps keep the restroom clean and hygienic Self-cleaning piston significantly reduces clogging and prevents valve run-on Integral wiper spring cleans the refill orifice with every flush for extraordinary reliability No Routine Maintenance: no diaphragms to replace; no filters to clean Selectronic® Proximity System with programmable sensor allows for easy adjustment and customization State-of-the-Art Electronics prevent ghost flushing Fully Mechanical Manual Override Button can flush the valve without power Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset Adjustable Sanitary Flush cleans the fixture & maintains the trap seal. Chemical Resistant EPDM Seals for extended life Can be installed left or right handedSpecs 11-1/2” Rough in Fits 1-1/2" top spud bowls

Features

• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• 5-year CR-P2 lithium battery installed in valve
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• Includes CR-P2 lithium battery with 5 year life (assuming 4,000 uses per month)
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Batteries Included: Yes
• Batteries Required: Yes
• Brand: American Standard
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Flush Value: Exposed
• Collections: Selectronic
• Fitting Connection Size Input: 1
• Fitting Material: Brass
• Touchless: Touchless
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1.6 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Batteries Included: 1
• Number of Output Valves: 1
• Height: 16
• Length: 4-1/2
• Residential or Commercial: Commercial
• Rough In Size: 11.5
• Subcategory: Sensor Flush Valve and Sanitary Items
• USMCA Compliant: Yes
• Warranty: 5 Year Limited Warranty
