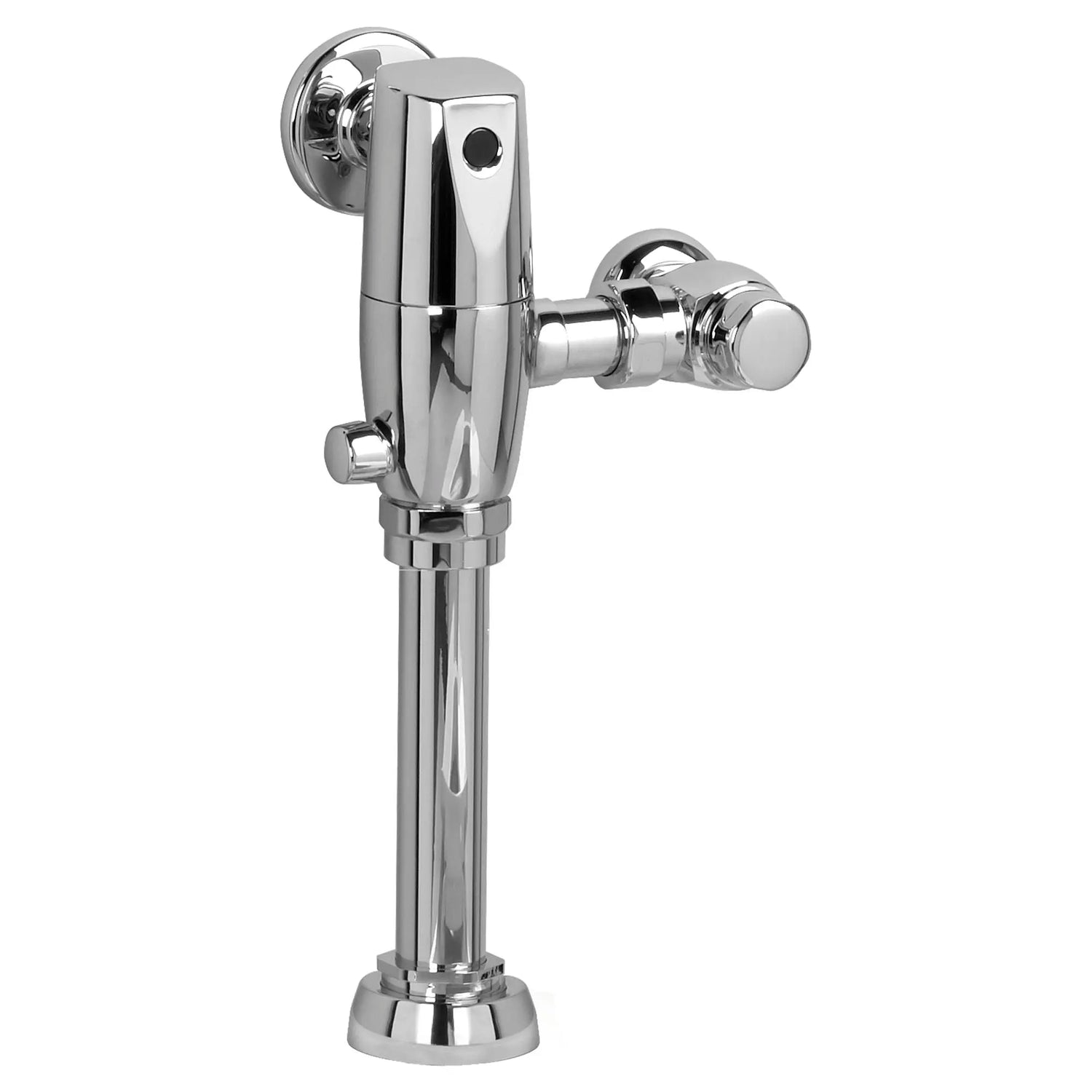

Ultima Selectronic Touchless Toilet Flush Valve, Piston-Type, Base Model, 1.1 gpf/4.2 Lpf

The Exposed Selectronic® Toilet Flush Valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36” height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.Features

Features

• POWER KIT MUST BE PURCHASED SEPARATELY
• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in
• POWER KIT MUST BE PURCHASED SEPARATELY
• For flushometer bowls with 1-1/2-inch (38 mm) exposed top spud
• Touchless operation limits the spread of germs
• Exclusive DynaClean® self-cleaning wiper spring technology
• Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
• Fully mechanical manual override can operate without power
• Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
• Proprietary brass alloy resists dezincification
• 11-1/2" (292 mm) rough-in

Specifications

• ADA Compliant: Yes
• Barrier Free: Yes
• Brand: American Standard
• Cal Green: Yes
• Category: Flush Valves and Sanitary Items
• Color / Finish: Chrome
• Collections: Selectronic
• WaterSense: Yes
• Fitting Connection Size Input: 1
• Fitting Material: Brass
• Touchless: Touchless
• Fixture or Fitting Material: Brass
• Gallons Per Flush (min-max): 1.1 GPF
• Input Connection Type: NPT (National Pipe Tapered Threads)
• Number of Output Valves: 1
• Height: 16
• Width: 8-7/16
• Residential or Commercial: Commercial
• Subcategory: Sensor Flush Valve and Sanitary Items
• Water Efficient: Yes
